Bob-Lift China Mini Hydraulic Knuckle Mobile Crane Loader Lorry 3/5/8 Crane Truck Mounted Pickup Crane Manufacturer (SQ08A4) for Sale Price
XUZHOU BOB-LIFT CONSTRUCTION MACHINERY CO., LTD.- Warranty:1 Year
- Certification:CE, ISO9001
Base Info
- Model NO.:SQ08A4
- Condition:New
- Maximum Lifting Height:<10m
- Maximum Lifting Weight:<2t
- Shaft Number:No
- Crane Jib:Two-Arm
- Type:Folding
- Color:According to Customer Requirements
- Product Name:China Mini Hydraulic Knuckle Mobile Pickup Truck M
- Boom Type:Knuckle 2 Boom Sections
- Max Working Radius:3.6m
- Tip Load:200kg
- Installation Space:550 mm
- Rotation Angle:330 Degree
- Self Weight:200 Kg
- Materials:Hq60,Hq70,Q345
- Oil Tank Capacity:15 L
- Transport Package:Wooden Cases
- Specification:800 kg pickup crane, 750*330*1420mm
- Trademark:BOB-LIFT
- Origin:Jiangsu, China
- HS Code:8426910000
- Production Capacity:1500 Sets,Year
- Package size per unit product:120.00cm * 140.00cm * 750.00cm
- Gross weight per unit product:550.000kg
Description
pickup craneMax lifting capacity ton 0.8 Max lifting moment ton.m 1 Recommend power KW 1 Hydraulic system flow L/Min 5 Hydraulic system pressure Mpa 18 Oil tank capacity L 15 Installation space mm 350*650 Self weight kg 200 Rotation angle ° 300

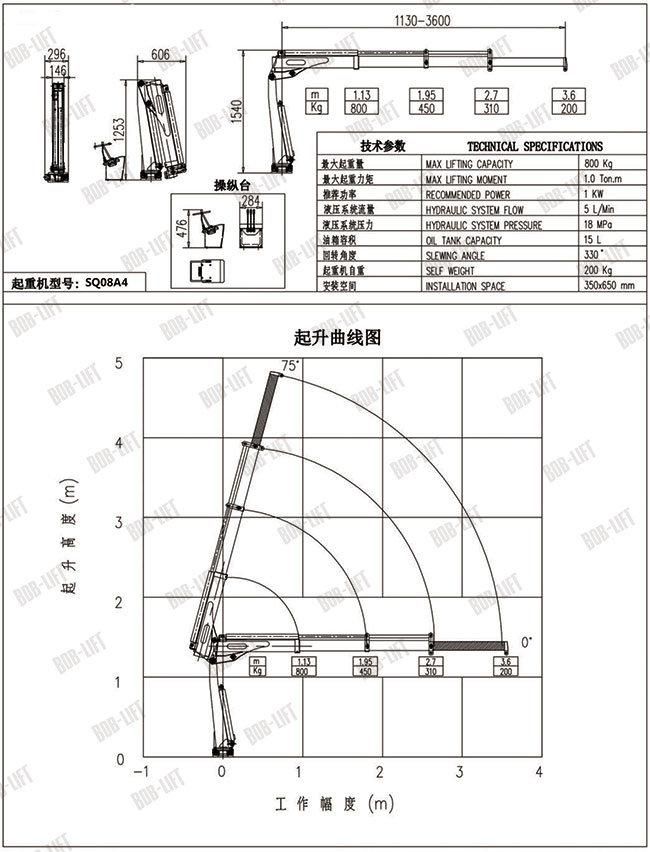

2).Technical drawings

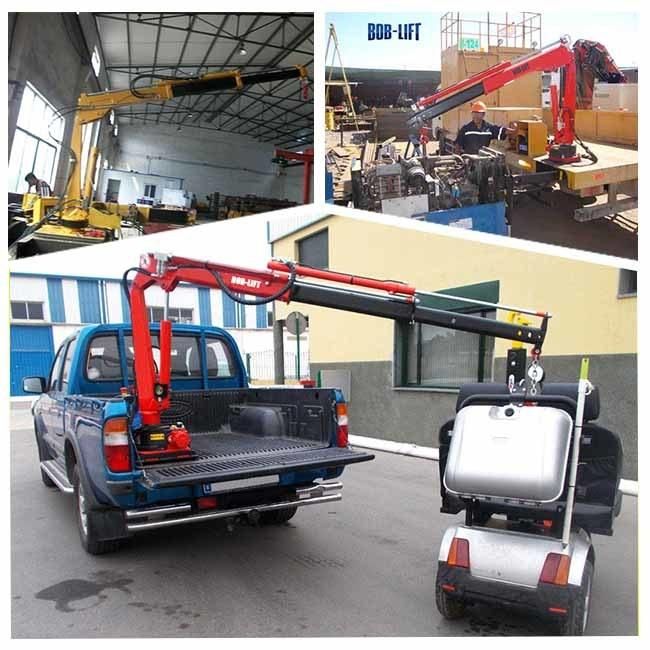

3).Product photos
4).Shipping details
5).Certificates

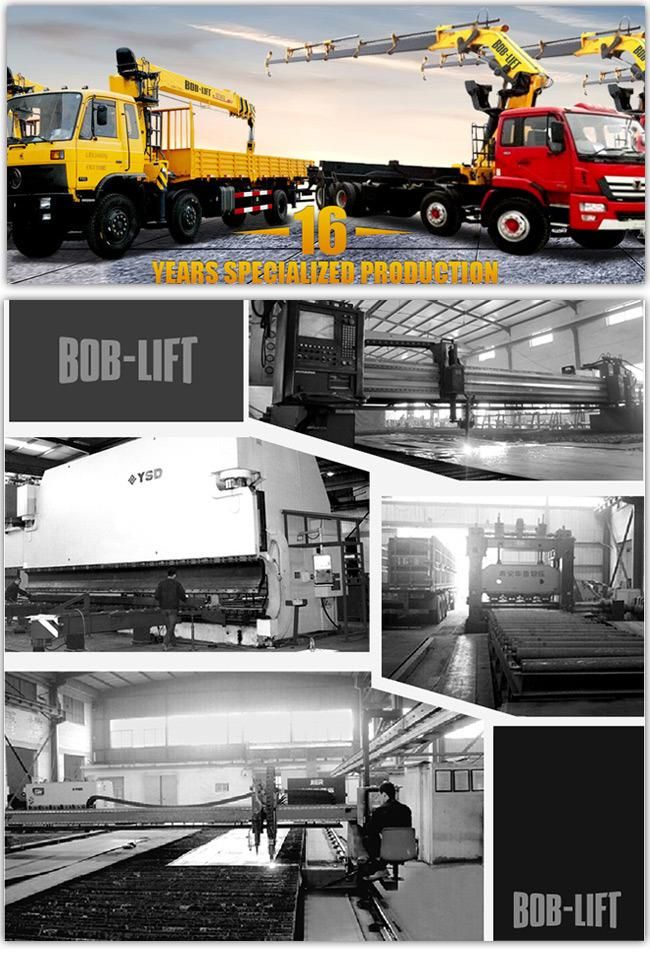

6).Our factory
6).FAQ
China Mini Hydraulic Knuckle Mobile Pickup Truck Crane Manufacturer (SQ08A4)
2).Technical drawings
3).Product photos
4).Shipping details
5).Certificates
6).Our factory
6).FAQ
1. Factory History?
16 Years production, 10 years export experience.
2. Steel material manufacturer?
Shanghai Baosteel
3. Type of the boom?
Hydraulic boom+jib/manual boom(optional attachment)
4. How to finish the preshipment inspection?
Factory Inspection, video provided
5. Optional Attachments
Remote Control, Moment Limited Valve, Top Seat, Work Basket, Assistant Stabilizer leg...
China Mini Hydraulic Knuckle Mobile Pickup Truck Crane Manufacturer (SQ08A4)
