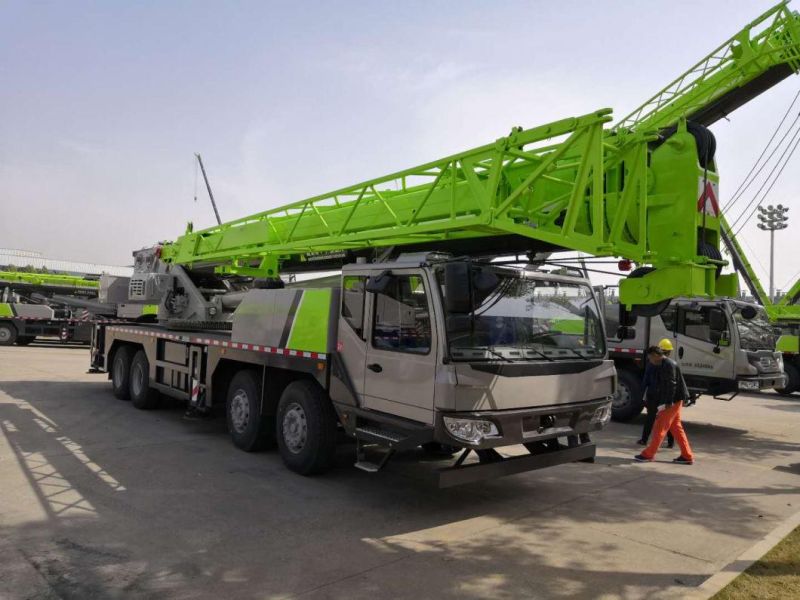

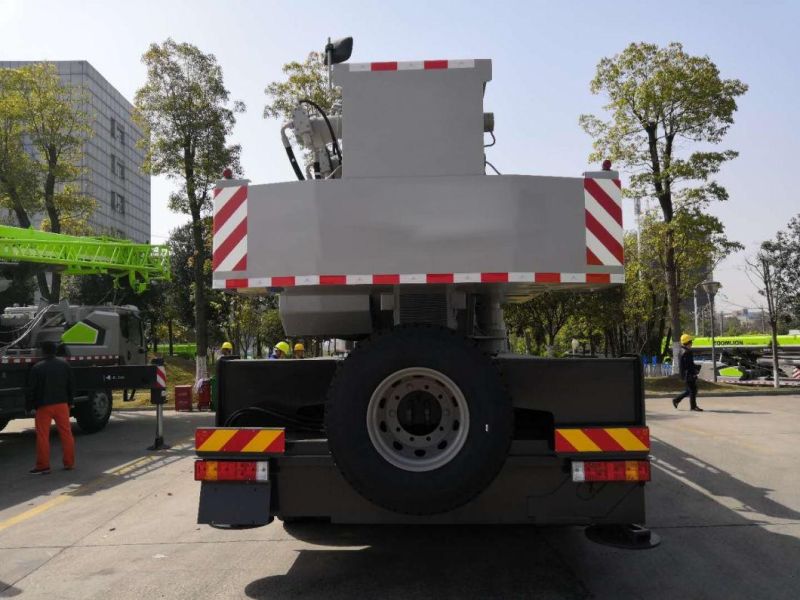

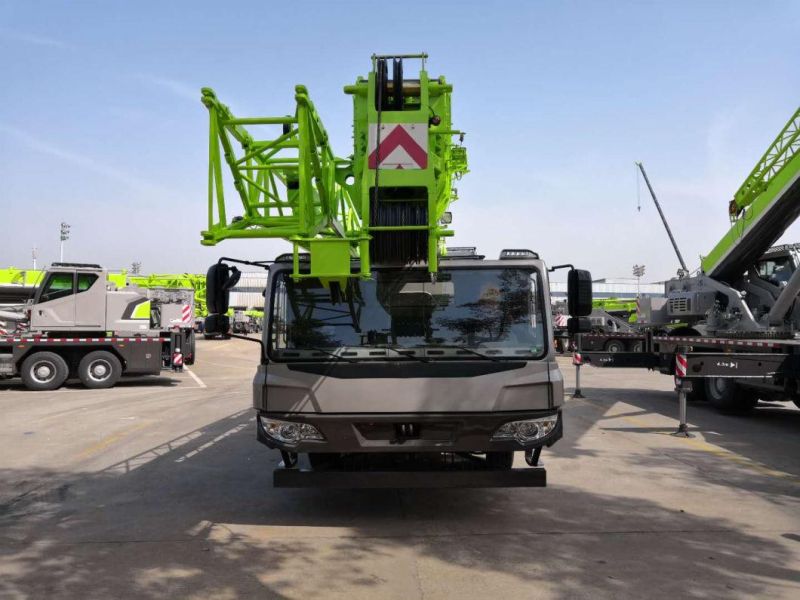

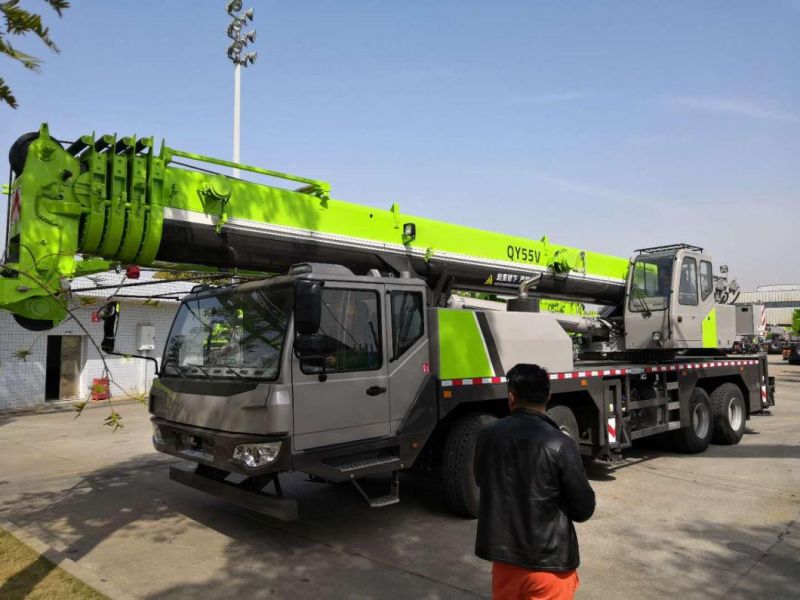

• Model NO.：QY55V552
• Shaft Number：2
• Crane Jib：Five-Arm
• Type：Straight Arm
• Max. Rated Total Lifting Capacity：55000 Kg
• Max. Load Moment of Basic Boom：1764 Kn.M
• Max. Load Moment with Max. Main Boom Len：940.8 Kn.M
• Max. Lifting Height of Basic Boom：11.6 M
• Max. Lifting Height of Main Boom：42.1 M
• Max. Lifting Height of Fly Jib：58.3 M
• Derricking Time of Boom：50 S
• Transport Package：Nude Package
• Specification：13300*2750*3550 mm
• Origin：China
• Production Capacity：300

Overview Product Description

Product ParametersItemValueRemarksWorking performance specificationMax. rated total lifting capacity kg50000 Max. load moment of basic boom kN.m1764

1470 (Outrigger beam half extended)

Max. load moment with max. main boom length kN.m940.8793.8(Outrigger beam half extended)Max. lifting height of basic boom m11.6 Max. lifting height of main boomm42.1Deformation of boom is not taken into considerationMax. lifting height of fly jibm58.3Working speedMax. speed of single rope on main winch m/min130The 4th layer of drumMax. speed of single rope onauxiliary winch m/min72The 2nd layer of drumDerricking time of boom s50 Telescopic time of boom s95 Slewing speed r/min0~2 Traveling specificationMax. traveling speed km/h76 Max. gradeability %32 Min. turning circle diameter m24 Min. ground clearance mm260 Limits for exhaust pollutants and smokeComply with related standardsGB3847-2005GB17691-2005(Stage III)Oil consumption per hundred kilometers L40 Mass specificationDeadweight of crane in traveling condition kg40400 Complete vehicle kerb mass kg40200 Front axle load kg14900 Rear axle load kg25500 Dimension specificationOverall dimensions(L×W×H)mm13300×2750×3550 Base on outriggers m5.92 Distance between outriggers mfull extended 6.90 half extended 4.70Main boom length m11.1~42.0 Main boom angle°-2~80 Fly jib length m9.5, 16 Offset angle of fly jib °0 , 30 ChassisModelZLJ5401 ClassII EngineModelWP10.336 Rated power kW/r/min247/2200 Max. output torque N.m/r/min1250/1200~1600 Detailed Photos
