30ton 20ton Single Girder Double Girder Overhead Bridge Crane

Henan Nucrane Machinery Co.,Ltd.
  • Certification：CE, ISO9001
  • Condition：New
  • Operation Form：Ground Operation
  • Maximum Lifting Height：10-15m
  • Maximum Lifting Weight：20-50t
  • Main Girder Form：Double Girder

Base Info

  • Model NO.：QD
  • Type：Ordinary
  • Span：10.5-31.5m
  • Main Hoist Speed：14.5m,Min
  • Crane Travelling Speed：44.6m,Min
  • Hoist Travelling Speed：87.6m,Min
  • Power：380V50Hz3p
  • Travelling of Crab：38.4m,Min
  • Travelling of Crab Motor：Yzr180L-8,13
  • Travelling of Trolley Motor：Yzr200L-8,2*18.5
  • Max Wheel Pressure：318kn
  • Transport Package：Electric Parts and Electric Hoist Are Packed by St
  • Specification：20 or 40 feet container
  • Trademark：Nucrane
  • Origin：China, Henan
  • Production Capacity：1000sets,Years

Description

             Power sourceThree-phase A.C.50hz 380v
3.Safety is the most important issue for crane. To ensure the safety, the following safety devices are equiped in cranes.

Crane traveling limit switch

Weight overload protection device

Lifting height limit device

Voltage lower protection function

Phase sequence protection function

Emergency stop function

Rain cover for outside hoist, driving units, electrical cubicle.

Warning indicator: flashing lights and warning sound.

Wireless infra-detector for anti-collusion

4.Overhead crane detail parts pictures

30ton 20ton Single Girder Double Girder Overhead Bridge Crane30ton 20ton Single Girder Double Girder Overhead Bridge Crane30ton 20ton Single Girder Double Girder Overhead Bridge Crane

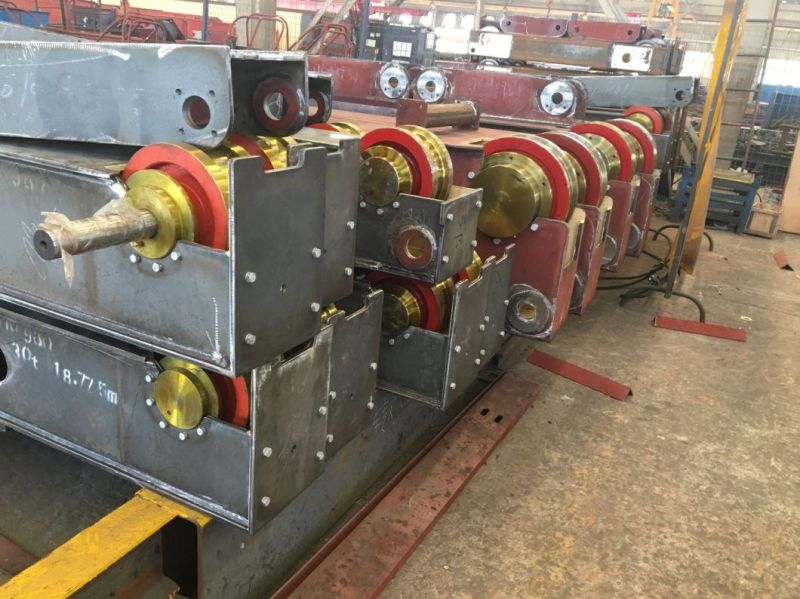

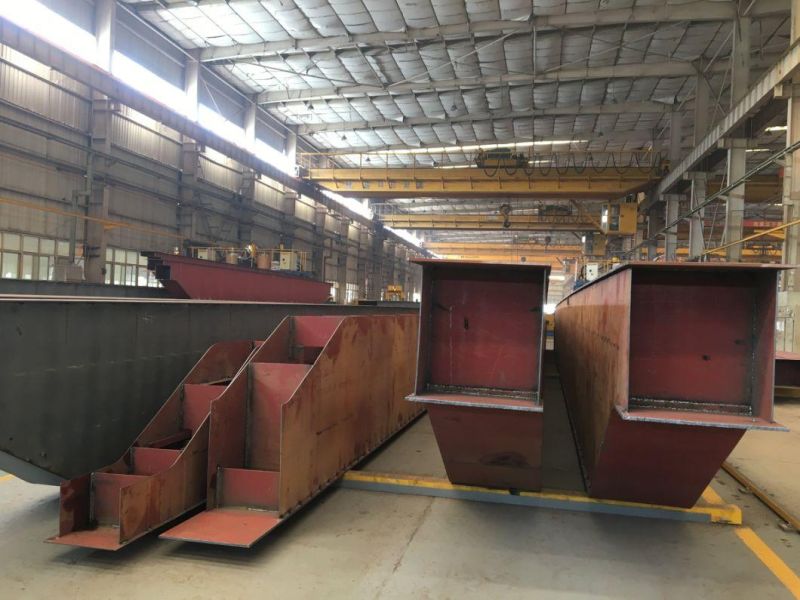

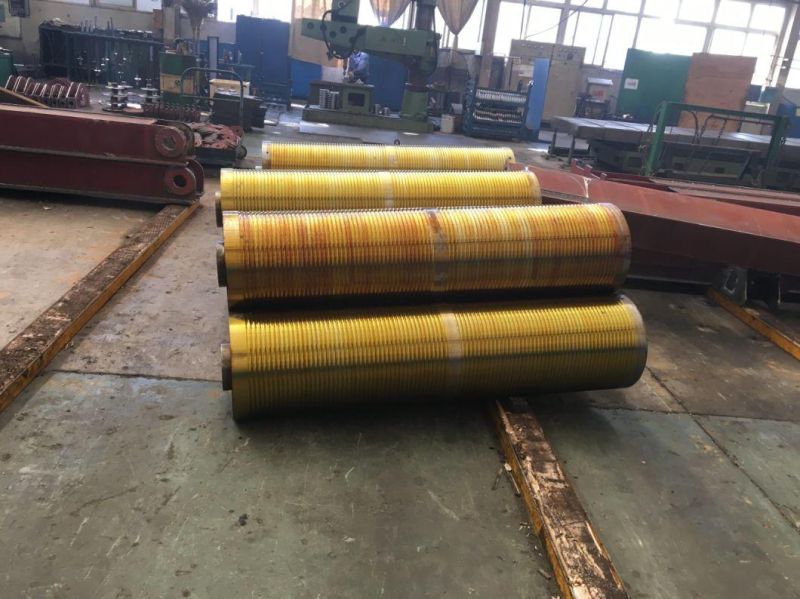

                  Main beam                                     end beam                               winch drum

30ton 20ton Single Girder Double Girder Overhead Bridge Crane30ton 20ton Single Girder Double Girder Overhead Bridge Crane

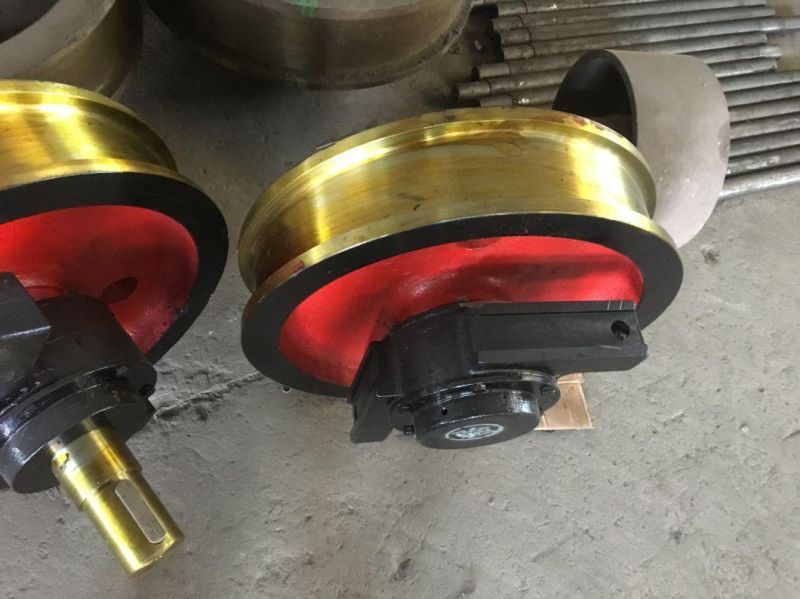

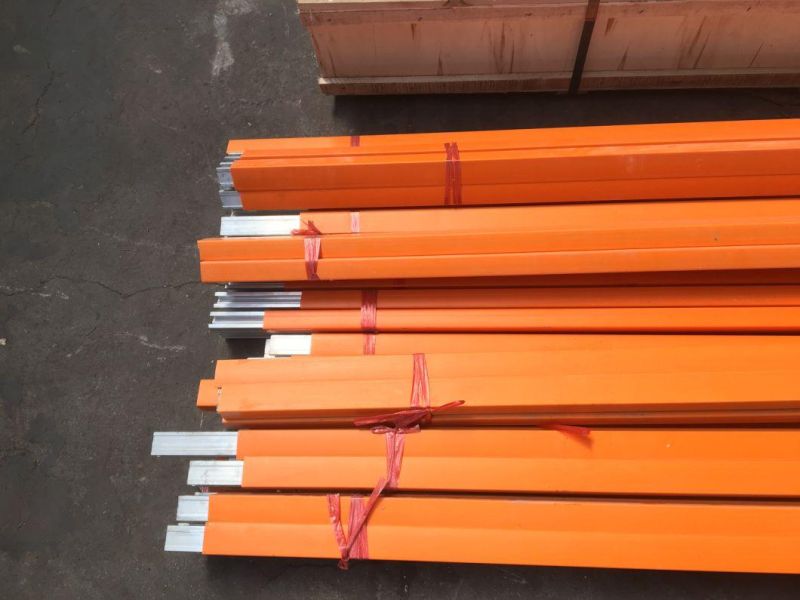

                                      Crane wheel                                         Bus bar


5.Pls tell me the following information and we will send you a most suitable model overhead crane:

1. what is the Crane Capacity?
2. what is the Crane Span?
3.what is the crane Lifting Height?
4. Hoist Application and Work Class
5. Do you need rail? if you need pls tell me the crane traveling length.
6. Control Method: Pendant or Remote Control?
7. what is your Local Power Supply?(380v50hz3p)
30ton 20ton Single Girder Double Girder Overhead Bridge Crane

6.FAQ

1. What kind of after-sale services will you supply?
     One year warranty.
      Providing free quick-wear part.
      Low charge for continue maintenance when warranty is expired.
      Exclusive engineer support at any time.
      We can provide free training to end-users.

 2. Can you make customized products?
      Yes, of course. You can send your workshop pictures or drawings, or just tell us your special demands,
      our engineers can make suitable design for you

 3. Can you book the boat for me, as we do not have our own forwarder?
     Sure, we have our own forwarder, and we had cooperated with the forwarder more than 5 years

 4.  Can you supply the quality certification?
      Yes, all kinds of certification are available, if you have doubt, you can come to our factory and test it by yourself,
      or you can let some third-partied to do the inspection for you.

 5.   How can I install the crane?
      Our engineers can come to your work site to guide the installation.

 6.   Can I have a visit to your factory?
      You can come to our factory anytime when you are convenient. We will make arrangement to pick you up.
30ton 20ton Single Girder Double Girder Overhead Bridge Crane

7.If you have any inquiry of crane, pls contact me freely.
