• Model NO.：Stc 250
• Shaft Number：3
• Crane Jib：Five-Arm
• Type：Straight Arm
• Max. Rated Lifting Capacity：30t
• Engine Model：Cummins
• Rated Power/Revolution Speed：213,2100 Kw, Rpm
• Base Boom：1029kn.M
• Swing Speed：(0~2.5) R,Min

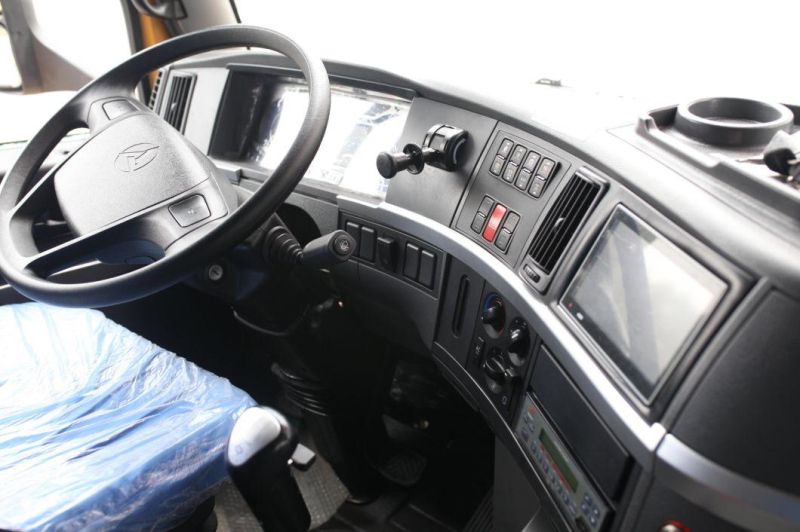

• HVAC in up Cab：Cold and Heating
• HVAC in Low Cab：Cooling and Heating
• Overall Weight：33000kg
• Front Axle Load：7100kg
• Rear Axle Load：25900kg
• Transport Package：Regular Package

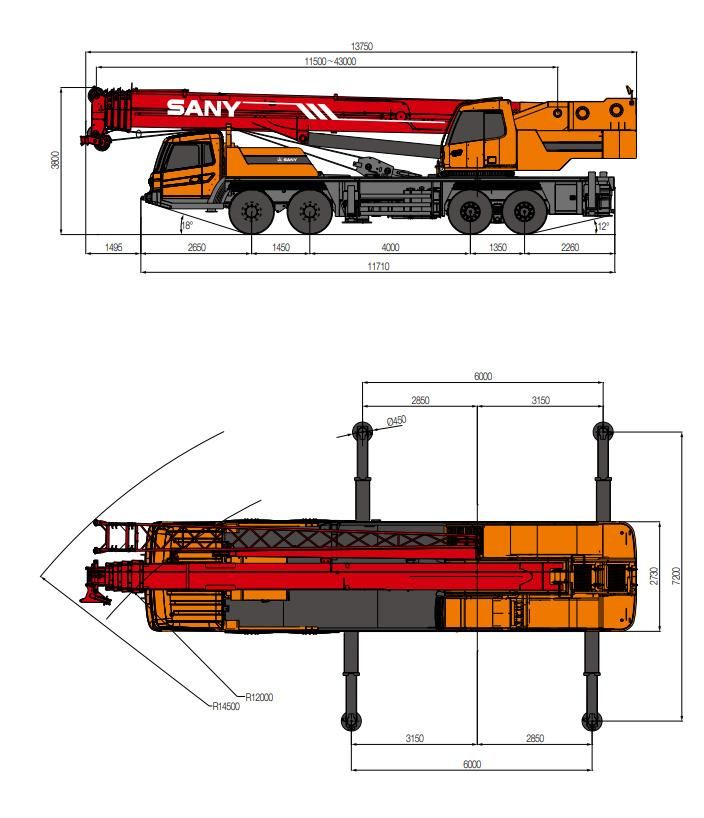

• Specification：12850*2500*3650
• Trademark：China top brand
• Origin：China
• Production Capacity：50

Basic Info.

Model NO. Stc 250 Shaft Number 3 Crane Jib Five-Arm Type Straight Arm Max. Rated Lifting Capacity 30t Engine Model Cummins Rated Power/Revolution Speed 213/2100 Kw/ Rpm Base Boom 1029kn.M Swing Speed (0~2.5) R/Min HVAC in up Cab Cold and Heating HVAC in Low Cab Cooling and Heating Overall Weight 33000kg Front Axle Load 7100kg Rear Axle Load 25900kg Transport Package Regular Package Specification 12850*2500*3650 Trademark China top brand Origin China Production Capacity 50

Product Description

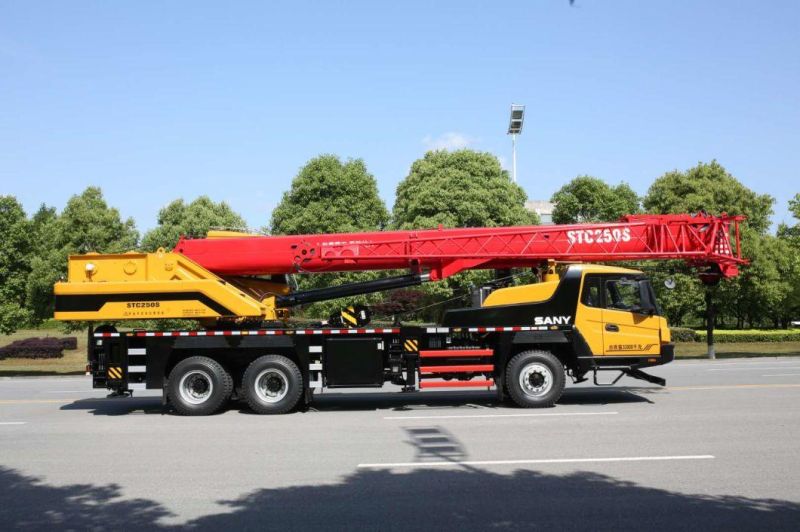

                                   25 Tons Stc 250 , 30 Tons,  50 Tons, 70 Tons, 100 Tons ,130 ton ,160 ton,220 ton,250 ton, 300 ton ,350 ton,400 ton,600 ton Truck Crane with Factory Price

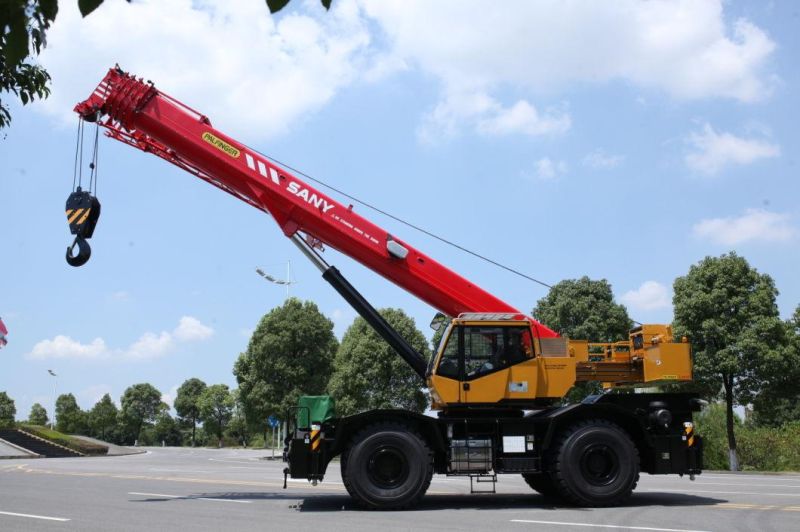

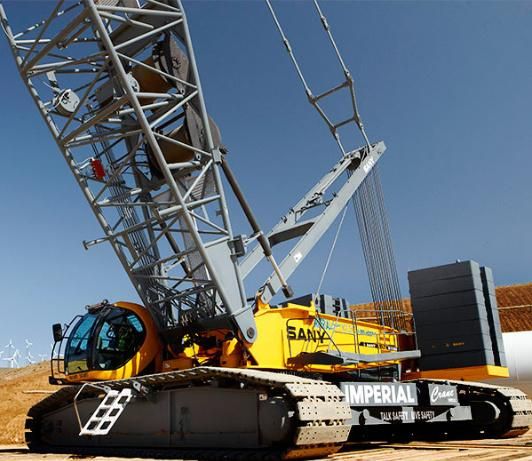

Product Description:truck crane,rough terrain crane,crawler crane,concrete pump,rotary drilling rig,reach stacker.

1.China top brand famous brand truck crane
2.Lifting capacity:  25, 30 ,50, 75, 90, 100, 125 ton ,130 ton,160 ton,220 ton,250 ton,300 ton,350 ton,400 ton,600 ton
3.Full extended boom 58.3m
4.Good performance
5.Timely delivery
Product Description

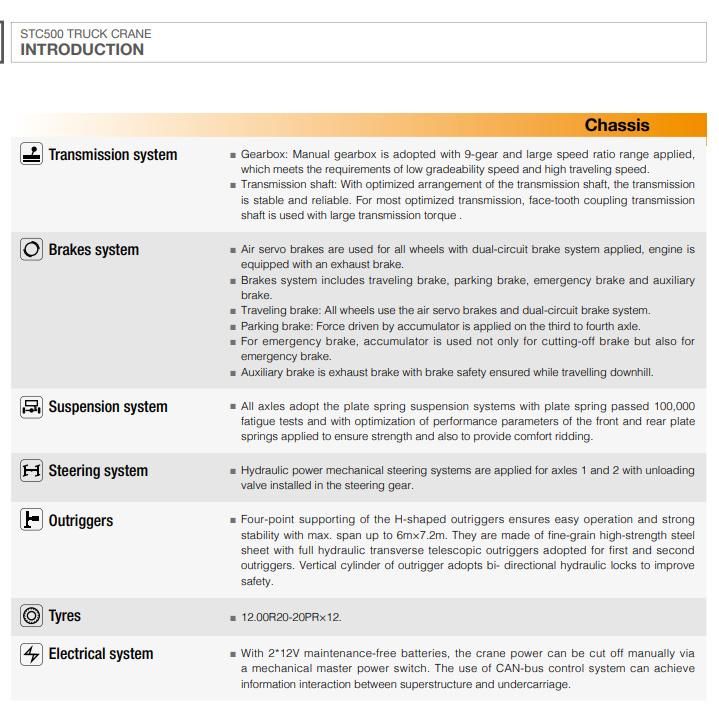

Excellent and stable chassis performance /chassis system
Double-axle drive is used, providing good trafficability and comfortableness under complex road condition with reliable traveling performance.
Engine has the multimode power output function, which reduces power consumption.
Highly efficient, stable, energy-saving
and adjustable hydraulic system Triple gear pump, load feedback and constant power control are applied to provide strong lifting capacity and good micromobility.
Unique steering buffer design is applied to ensure stable braking operation.
Ultra long, super strong and highly sensitive
load lifting capacity Four-section boom of high strength steel structure and optimized U-shaped cross section reduces weight significantly with higher safety rates. Jib mounting angles are 0°, 15° and 30°, which ensures fast and convenient change-over between different operating conditions so as to improving working efficiency of the machine.

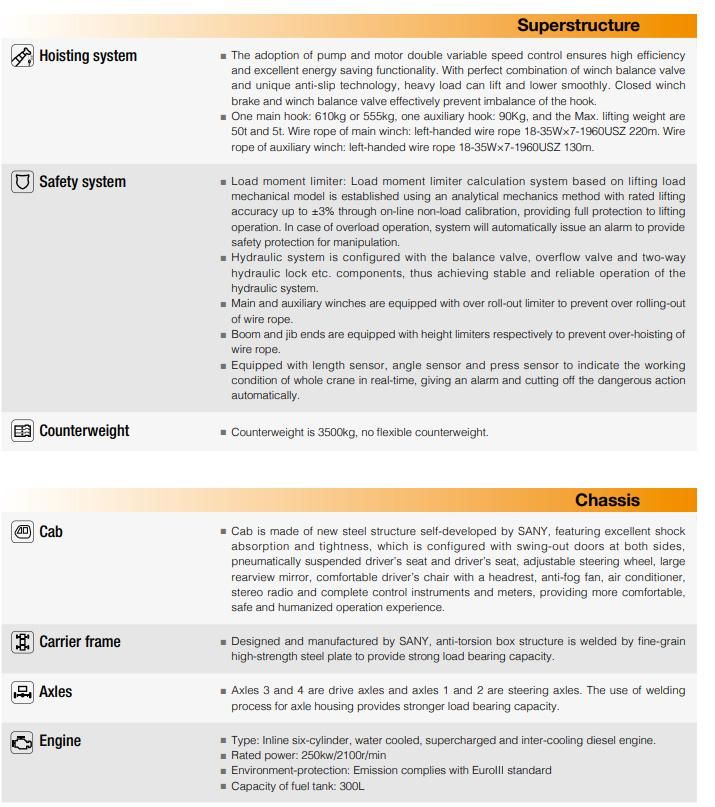

Safe, stable, advanced,and intelligent electric control system
Self-developed controller SYMC specially for engineering machinery is configured. The adoption of CAN-bus full-digital network control technology ensures stable control signal, simple harness and high reliability. Timely feedback of data information can achieve the monitoring of the overall working status in realtime.
The load moment limiter equipped with the comprehensive intelligent protection system is used with accuracy within 3% to provide a comprehensive logic and interlock control, thus ensuring more safe and reliable operation.
