• Model NO.：ZTC500H552
• Shaft Number：3
• Crane Jib：Five-Arm
• Type：Folding
• Hydraulic Cylinder Brand：Liyuan
• Hydraulic Valve Brand：Kyb
• Engine Brand：Weichai
• Overall Length：13300mm
• Overall Height：3550mm
• Overall Width：2750m
• Max. Lifting Height of Fly Jib：58.3m
• Max. Gradeability：32%
• Transport Package：Nude Package
• Specification：lifting height of boom: 44m
• Trademark：zoomlion
• Origin：China
• HS Code：8705102300
• Production Capacity：1000unit,Year

Basic Info.

Model NO. ZTC500H552 Shaft Number 3 Crane Jib Five-Arm Type Folding Hydraulic Cylinder Brand Liyuan Hydraulic Valve Brand Kyb Engine Brand Weichai Overall Length 13300mm Overall Height 3550mm Overall Width 2750m Max. Lifting Height of Fly Jib 58.3m Max. Gradeability 32% Transport Package Nude Package Specification lifting height of boom: 44m Trademark zoomlion Origin China HS Code 8705102300 Production Capacity 1000unit/Year

Product Description

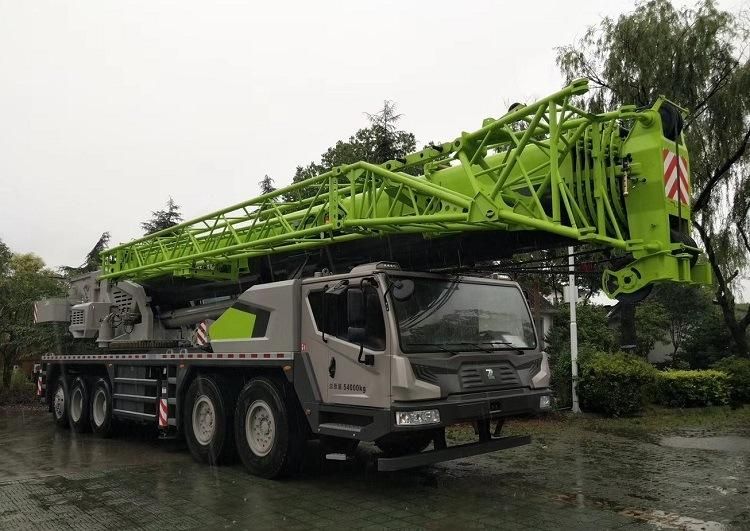

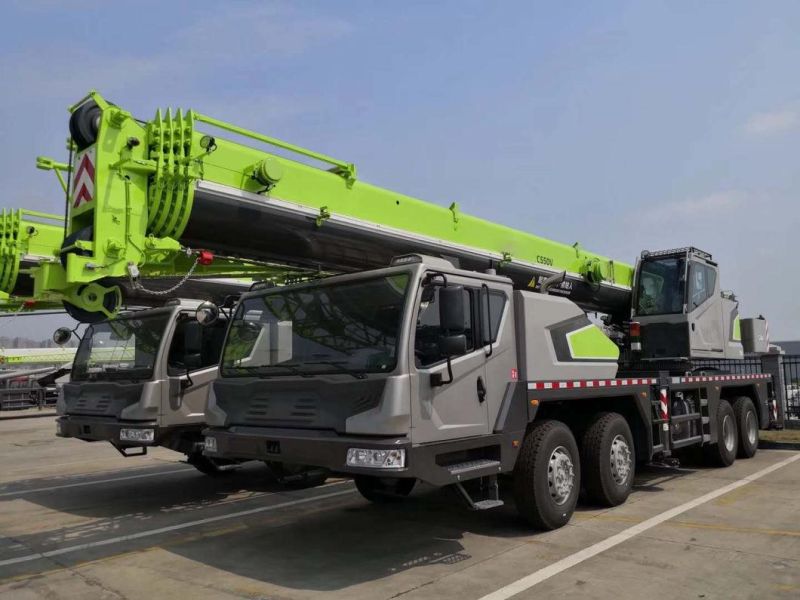

Cheap Price Original Zoomlion Truck Crane Ztc500 50ton New Pick UP Mobile Cranes

Product-Features

• ZTC500H5522 truck crane is a new generation of high-performance products independently developed by our company to meet market demand and integrate years of experience and advanced technology. The performance parameters such as lifting height, main boom length, working speed and lifting capacity of the crane are at the current international leading level.

  The product is a full-slewing, telescopic boom-type, hydraulic-controlled proportional-controlled truck crane. It adopts the company's self-made full-drive four-bridge special chassis. It has a wide field of vision, luxurious decoration and comfort, 8×4 drive, hydraulic power steering, and light weight. flexible.



  The product adopts the latest hydraulic control proportional directional control valve and variable pump plus gear pump system, which makes the working capacity of each actuator fully exerted, and the hydraulic control pilot handle is operated, which can realize the main and auxiliary lifting, variable amplitude, rotation and telescopic mechanisms.



  The combined action between the two greatly improves the efficiency of the crane. It has the characteristics of light and flexible operation, stable and reliable work, stepless speed regulation and so on. In the hydraulic system, safety devices such as overflow valve, balance valve, hydraulic lock and brake valve are provided to prevent oil passage overload and avoid accidents ca by oil pipe rupture.



  The crane is equipped with a variety of safety devices such as a torque limiter and a complete lighting system to ensure safe and reliable operation and easy night work.

  The product is novel in shape, with a beautiful body, a beautiful line and a beautiful color.

Specification


Item	Unit	Parameter
Max. lifting weight	ton	50
Max. lifting force in base arm	kN.m	1813
Max. lifting force in longest base arm	kN.m	1082
Max. lifting height in base arm	m	12.6
Max. lifting height in main arm	m	45.5
Max. lifting height in auxiliary boom	m	61
Max. speed in single-rope(primary winding)	m/min	135
Max. speed in single-rope(auxiliary winding)	m/min	125
Arm lifting time	s	50
Arm streching time	s	110
Max. using altitude	m	2000
Max. traveling speed	Km/h	80
Gradeability	%	44
Min. turning diameter	m	24
Front axle shaft load	kg	15600
Rear axle shaft load	kg	26000
Overall dimensions(length*width*height)	mm	14100*2650*3800
