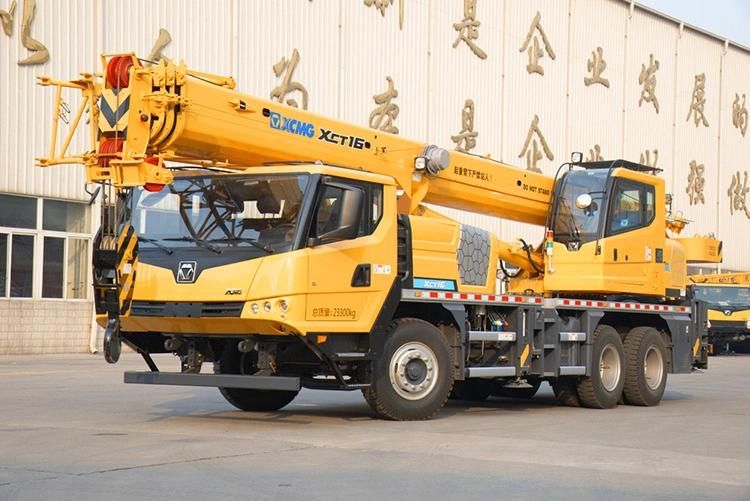

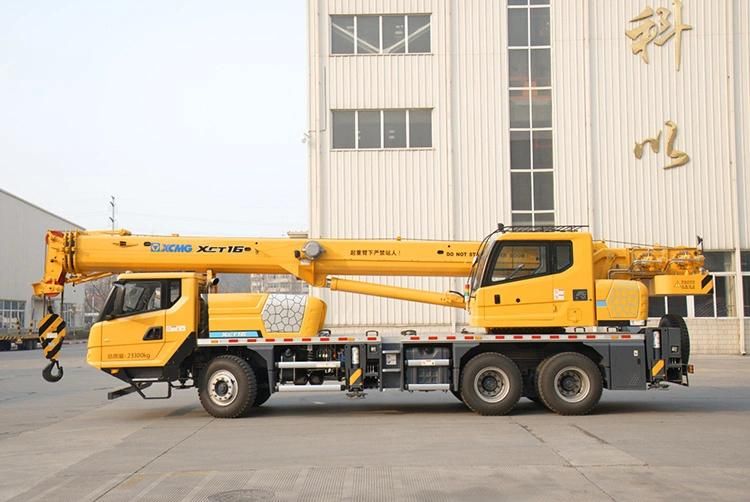

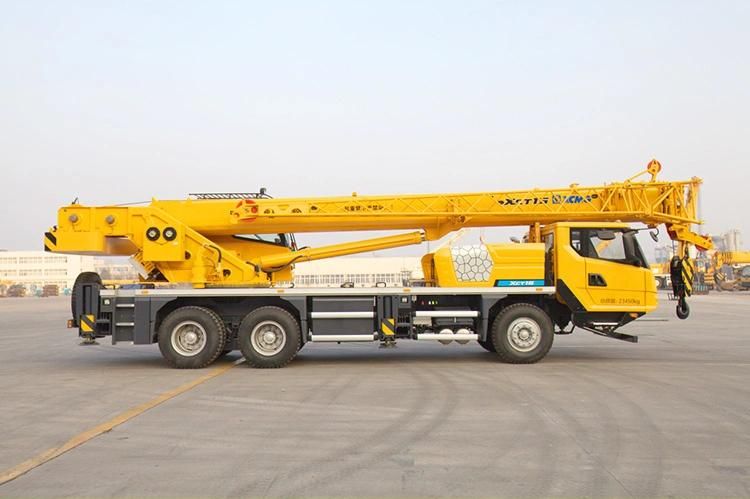

• Model NO.：XCT16
• Shaft Number：3
• Crane Jib：Four-Arm
• Type：Folding
• Base Boom：730t.M
• Min. Rated Working Radius：3m
• Max. Total Rated Lifting Capacity：16t
• Transport Package：Nude Package
• Specification：16 ton
• Trademark：Sinomada
• Origin：China
• HS Code：87051091
• Production Capacity：5000PCS,Year

Category

Item

Unit

Parameter

Main performance

Max. total rated lifting capacity

t

16

Min. rated working radius

m

3

Turning radius at turntable tail (counterweight)

mm

3180

Max. load moment

Base boom

t.m

730

Fully-extended boom

t.m

475

Outrigger span

Longitudinal

m

5.1

Lateral

m

5.8

Hoist height

Base boom

m

10.5

Fully-extended boom

m

32.5

Fully-extended boom + Jib

m

40.6

Boom length

Base boom

m

10

Fully-extended boom

m

32

Fully-extended boom + Jib

m

40.15

Jib offset angle

°

0, 15, 30

Working speed

Boom elevating time

Boom raising time

s

≤35

Boom telescoping time

Boom fully extending time

s

≤50

Max. slewing speed

r/min

≥3

Main winch system

No load

m/min

≥130

Luffing jib winch

No load

m/min

≥130

Noise

Exterior noise level

dB (A)

≤120

Noise level at seated position

dB (A)

≤90
