• Certificates：CCS, ABS, BV, Gl, Dnv, Lr, Nk, Kr
• Working Load：5.9-617kn Boat Drum Anchor Winch
• Supporting Load：30-4428kn Boat Drum Anchor Winch
• Warping Load：5-350kn Boat Drum Anchor Winch
• Keywords：Boat Drum Anchor Winch
• Transport Package：Wooden Case for Boat Drum Anchor Winch
• Specification：CCS, ABS, GL, DNV, GL for Boat Drum Anchor Winch
• Trademark：OEM Boat Drum Anchor Winch
• Origin：Jiangsu Boat Drum Anchor Winch
• Production Capacity：100 PCS,Quater Boat Drum Anchor Winch

Basic Info.

Certificates CCS, ABS, BV, Gl, Dnv, Lr, Nk, Kr Working Load 5.9-617kn Boat Drum Anchor Winch Supporting Load 30-4428kn Boat Drum Anchor Winch Warping Load 5-350kn Boat Drum Anchor Winch Keywords Boat Drum Anchor Winch Transport Package Wooden Case for Boat Drum Anchor Winch Specification CCS, ABS, GL, DNV, GL for Boat Drum Anchor Winch Trademark OEM Boat Drum Anchor Winch Origin Jiangsu Boat Drum Anchor Winch Production Capacity 100 PCS/Quater Boat Drum Anchor Winch

Product Description

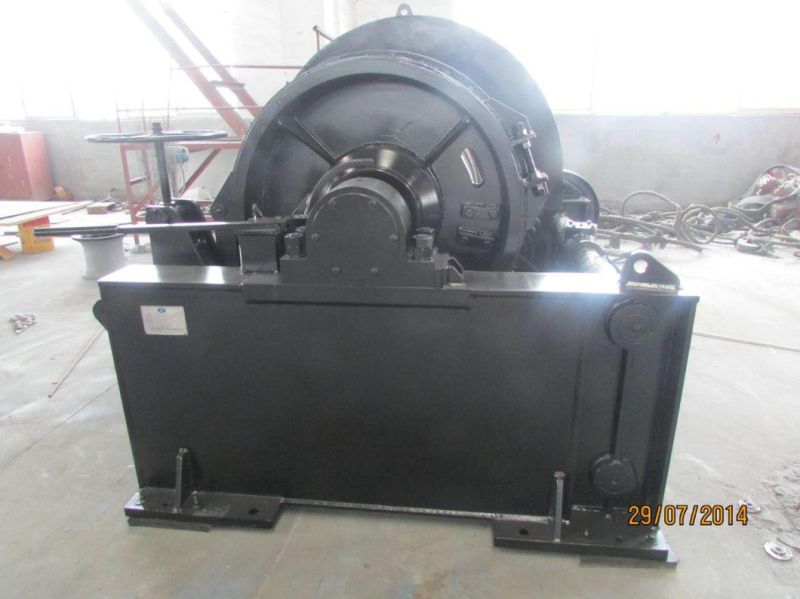

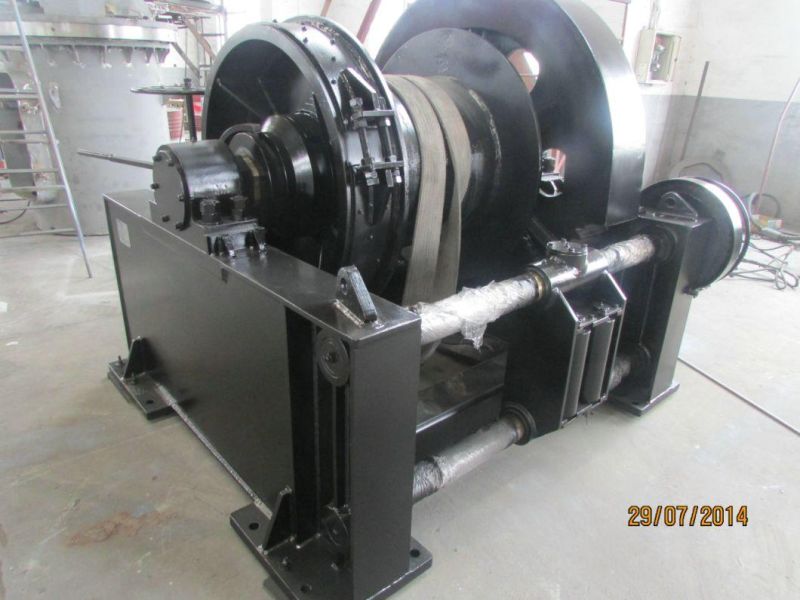

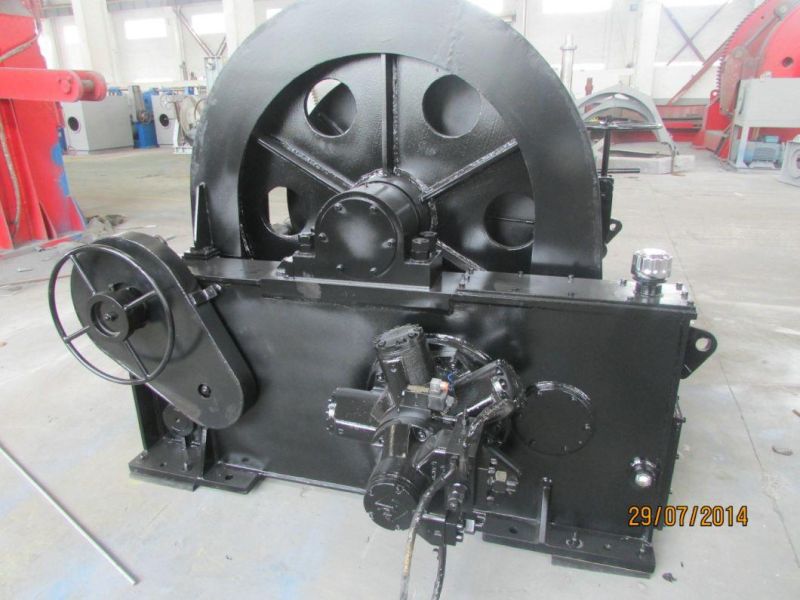

Boat Drum Anchor Winch

1. Certificates: CCS, ABS, BV, GL, DNV, LR, NK, KR
2. Chain Dia.: 12-120mm
3. Working Load: 5.9-617KN
4. Supporting Load: 30-4428KN
5. Warping Load: 5-350KN
6. Motor Power: 3-132KW

Constituent Parts:
Base, Bracket, Cable lifter/Gypsy wheel, Brake, Chain wheel, Gearbox, Electronic control system (except manual windlass), Electric motor ( for electric windlass), Hydraulic pump station (for hydraulic windlass)

ALL Electric Boat Anchor Winch WILL BE CUSTOMIZED ACCORDING TO YOUR REQUIREMENTS.
SO BEFORE ENQUIRYING PLS ADVISE MAIN SPECIFICATION DATAS AS FOLLOWING:
Dia. Of anchor chain, Nominal speed, Rated loading capacity, support loading, Speed class, Voltage, etc.

Dia. Of anchor chain	Φ12-Φ120mm
Driving mechanism	Manual windlass, Steam windlass,  Electric windlass  ( DC Electric windlass, AC Electric windlass),  Hydraulic windlass  ( High pressure hydraulic windlass, Middle pressure hydraulic windlass, Low pressure hydraulic windlass),  Diesel engine driven
Center line direction of chain wheel shaft	Horizontal windlass, Vertical windlass (Capstan)
Arrangement form	Ordinary/Common/General/Integral type windlass, Side/Independent type windlass, Jointed/United type windlass
