Double Beam Girder Overhead Bridge Crane with Low Headroom Hoist
Shaoxing Leitai Machinery Co., Ltd.- After-sales Service：Pre-Sale Consulting,Technical Guidence,Maintenance
- Warranty：One Year
- Certification：CE
- Condition：New
- Operation Form：Remote Control
- Maximum Lifting Height：15-20m
Base Info
- Model NO.：DOC
- Maximum Lifting Weight：10t
- Main Girder Form：Double Girder
- Type：Ordinary
- Work Duty：M5
- Lifting Height(M)：6,9,12,15,18
- Traveling Speed(M/Min)：5,0.8
- Capacity(T)：3.2,6.3,10
- Rope Reeving：4,1
- Transport Package：Wooden Box
- Trademark：LEITAI
- Origin：China
Description
Standard insulation -20C- +70C
High temperature insulation -10C- +115C

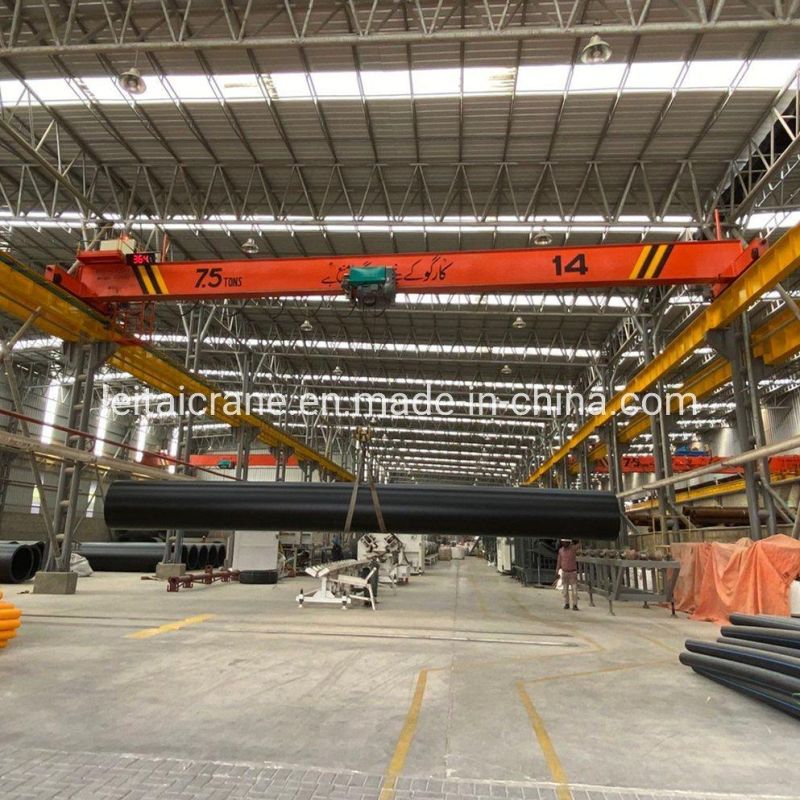

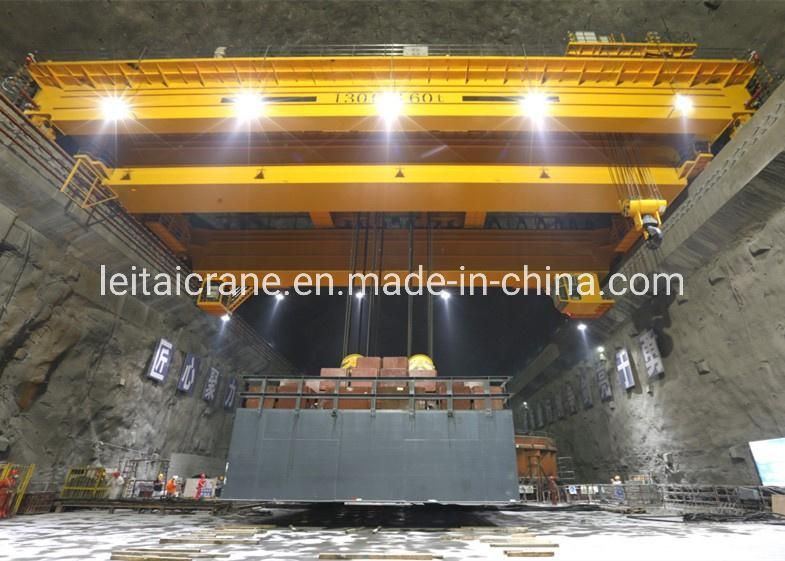

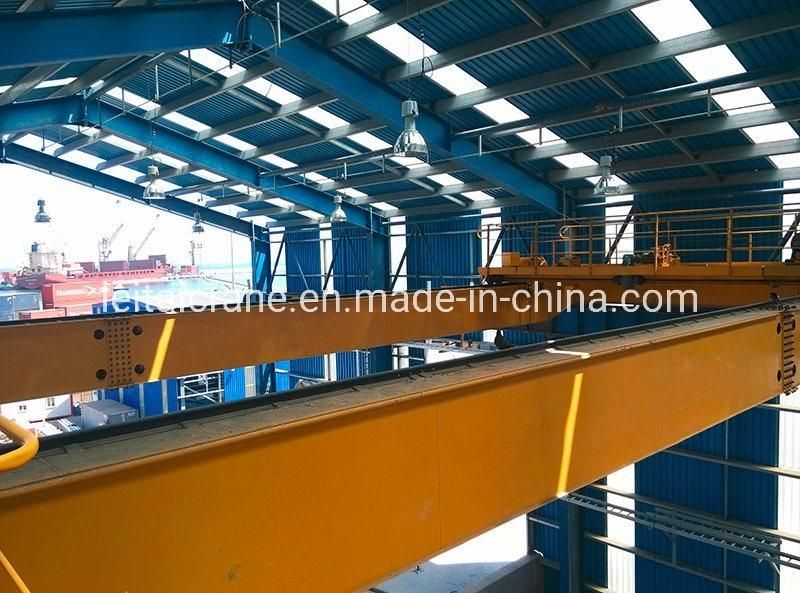

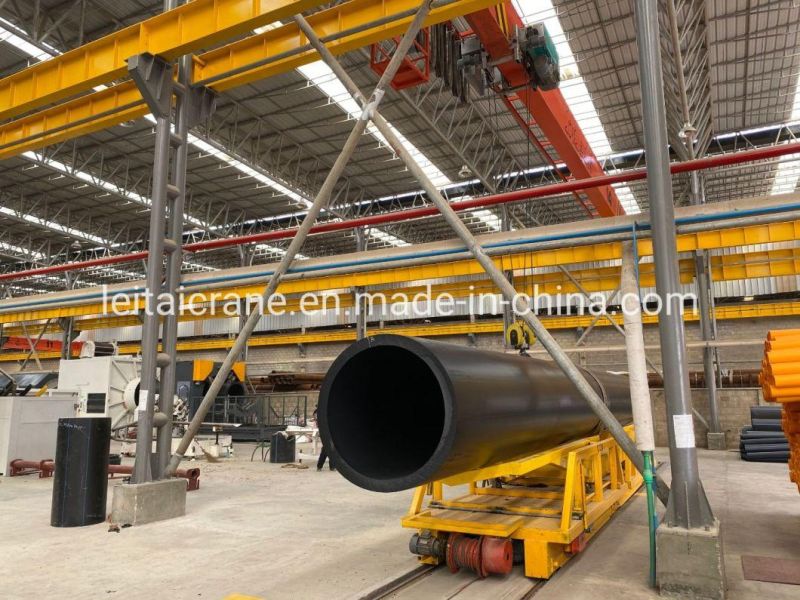

Product Showcase
High temperature insulation -10C- +115C
| Type | Conductor Rail | Cross section (mm2) | Nominal current (A) | Leakage-distance (mm) | Resistance (Ω/km) | Weight (kg/m) |
| NSP-H24-160/250 | Aluminium | 160 | 250 | 45 or 80 | 0.203 | 0.63 |
| NSP-H24-180/300 | Aluminium | 180 | 300 | 45 or 80 | 0.187 | 0.71 |
| Type | Conductor Rail | Cross section (mm2) | Nominal current (A) | Leakage-distance (mm) | Resistance (Ω/km) | Weight (kg/m) |
| NSP-H32-230/320 | Aluminium | 230 | 320 | 80 | 0.153 | 0.96 |
| NSP-H32-285/500 | Aluminium | 285 | 500 | 80 | 0.116 | 1.13 |
| NSP-H32-360/630 | Aluminium | 360 | 630 | 80 | 0.087 | 1.38 |
| NSP-H32-420/800 | Aluminium | 450 | 800 | 80 | 0.067 | 1.5 |
| NSP-H32-550/1000 | Aluminium | 550 | 1000 | 80 | 0.058 | 1.83 |
| NSP-H32-600/1250 | Aluminium | 600 | 1250 | 80 | 0.046 | 2.01 |
Product Showcase
