• Model NO.：MH
• Main Girder Form：Single Girder
• Corlor：Industrial Red and Yellow
• Control Method：Room Control or Remote Control
• Lifting Speed：8,0.8 7,0.7 3.5,0.35
• Power：Customization
• Work Duty：A3-A5
• Traveling Speed：20m,Min
• Accessories：Famous Brand
• Mobile Way：Orbital
• Stepless Speed Control：Available (Variable Frequency Control)
• Electrical System Brand：Siemens,Schneider,Chint
• Transport Package：40′ Container
• Specification：A3-A5
• Trademark：LYFOO
• Origin：Henan, China
• HS Code：84253190
• Production Capacity：5000 Sets,Month

Basic Info.

Model NO. MH Main Girder Form Single Girder Corlor Industrial Red and Yellow Control Method Room Control or Remote Control Lifting Speed 8/0.8 7/0.7 3.5/0.35 Power Customization Work Duty A3-A5 Traveling Speed 20m/Min Accessories Famous Brand Mobile Way Orbital Stepless Speed Control Available (Variable Frequency Control) Electrical System Brand Siemens/Schneider/Chint Transport Package 40′ Container Specification A3-A5 Trademark LYFOO Origin Henan, China HS Code 84253190 Production Capacity 5000 Sets/Month

Product Description

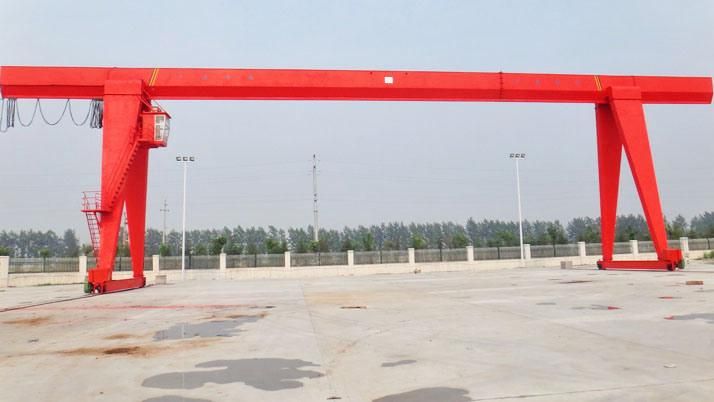

Single Girder Gantry Crane (MH)

Full Gantry Crrane



MH single beam full gantry crane is matched with CD1/MD1 model wire rope hoist. It is a kind of track travelling midium-duty class gantry crane. The capacity from 3ton to 32ton, span from 12m to 35m or others , working temperature within-20--+40 centigrade. This gantry crane is commonly used outside yard for loading/unloading and moving materials. The control is pendant pushbutton control, cabin control or remote control. If your workshop does not have any collumn to support an overhead crane, the gantry crane can also be a solution.

Features

  - Designed for indoor & outdoor use.

  - The structure can be box type or truss type

  - Equipped by electric wire rope hoist CD/MD type or Chain hoist.

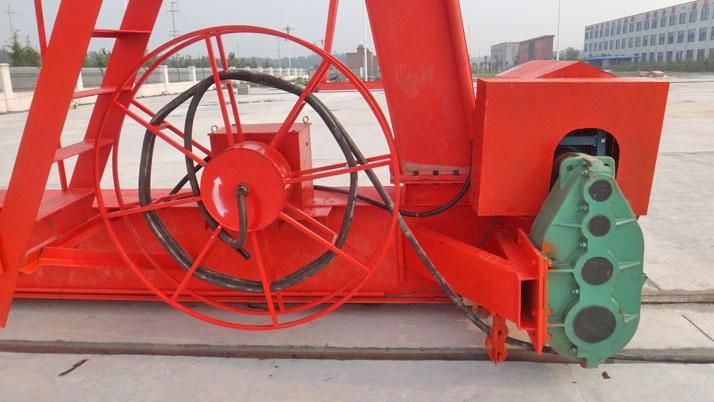

  - Power supply by cable reel system or bus bar

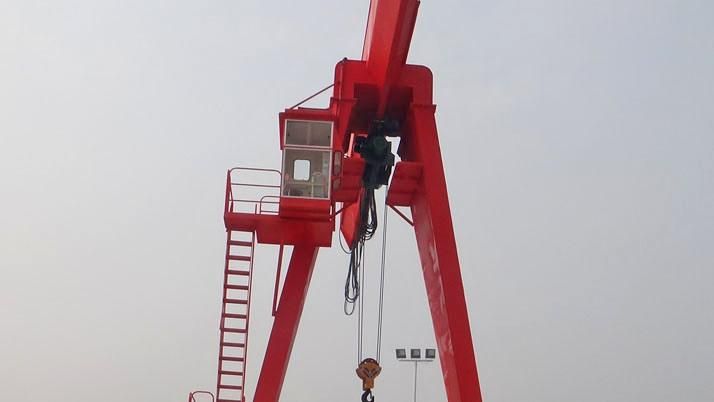

  - Controlled via push button pendant/Radio remote/Cabin, separately or any combination.

  - Tailored based on client's detailed requirement.

Semi-gantry crane

Inside workshop, semi-gantry is available. The top end carriage runs on runway, while bellow end carriage run on the ground. Semi-gantry crane is kind of full gantry crane, and has  the same features of full gantry crane. Semi-gantrycranes are suitable solution for the area in whichoverhead runways are not practical,and also impossible to build double track for crane travelling.



The leg is often desianed with straight on the outside part, so that gives more hook approach.



Semi-Gantry Crane

   Inside workshop, semi-gantry is available. The top end carriage runs on runway, while bellow end carriage run on the ground. Semi-gantry crane is kind of full gantry crane, and has  the same features of full gantry crane. Semi-gantry cranes are suitable solution for the area in which overhead runways are not practical,and also impossible to build double track for crane traveling.

The leg is often desianed with straight on the outside part, so that gives more hook approach.

Some Technical Parameter

Capacity	3, 5, 10, 16, 20t
Span	14-30m
Lifting Height	6-15m
Power Supply	380v, 3p, 50hz

Technical Characteristics:

1) Hard-tooth surface of reducer

2) Steel winding drum

3) Imported rope

4) Converter function of adjustable speed without contact or module

5) Intelligence controlling

6) Trinity drive





Cause this is a customized product, please provide us the following information

Capacity?

Lifting Height? (from hook to the ground)

Span?

Local Power-V-Hz-P?
