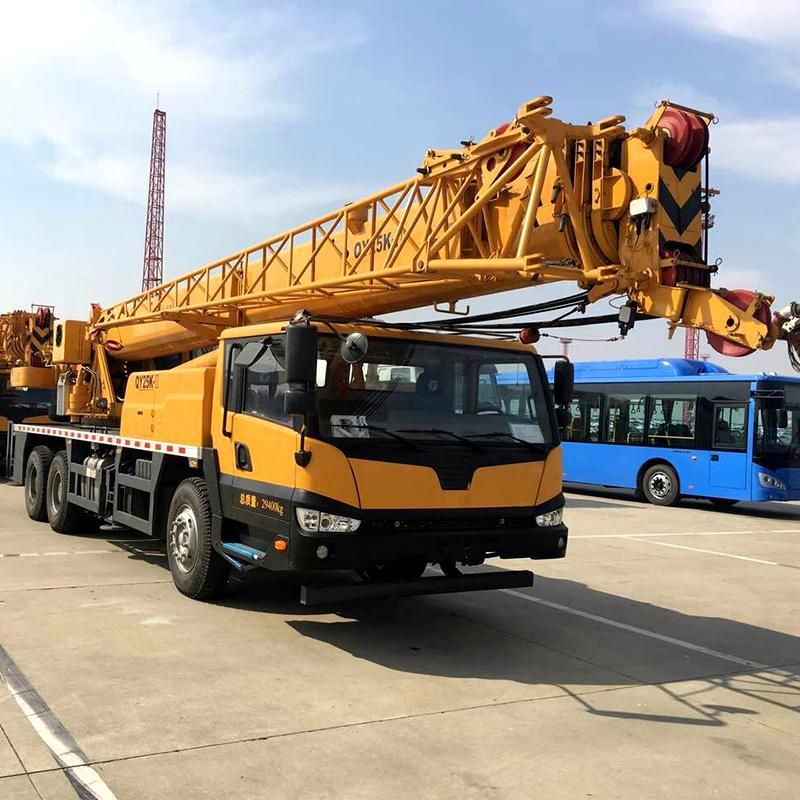

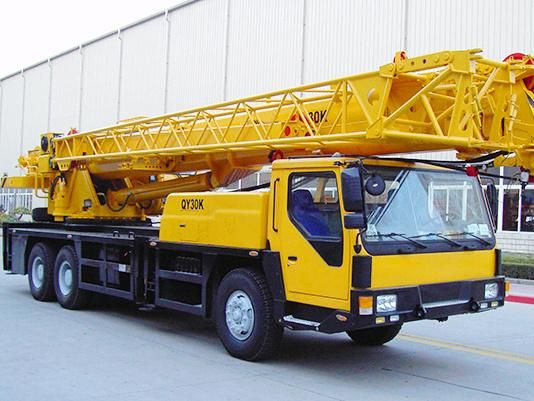

• Model NO.：QY30K5C
• Shaft Number：2
• Crane Jib：Four-Arm
• Type：Folding
• Max. Driving Speed：90km,H
• Tail Slewing Radius：3265mm
• Specification：13150*2500*3450 mm
• Trademark：SINOMADA
• Origin：China

DimensionUnitQY30K5COverall lengthmm12850Overall widthmm2550Overall heightmm3480WeightTotal weight in travelkg330001st axle loadkg74002nd axle loadkg128003rd axle loadkg12800Power of engineEngine model SC9DF300.1Q5Engine rated powerkW/(r/min)221/2200Engine rated torqueN.m/(r/min)1250/1400Specifications in TravelMax. travel speedkm/h90Min. turning diameterm21Min. ground clearancemm250Approach angle°11Departure angle°13.5Max. grade ability%40Fuel consumption for 100kmL≈30Main performanceMax. rated total lifting capacityt30Min. rated working radiusmm3000Turning radius at counter-weightm3.55Max. lifting torquekN.m1132Base boomm10.1Fully extended boomm40.7Fully extended boom+jibm50.2Longitudinal outrigger spanm5.5Lateral outrigger spanm6.4Working speedBoom luffing times38Boom full extension times100Max. swing speedr/min2.5Max. speed of main winch (single rope) (no load)m/min135Max. speed of aux. winch (single rope) (no load)m/min135
