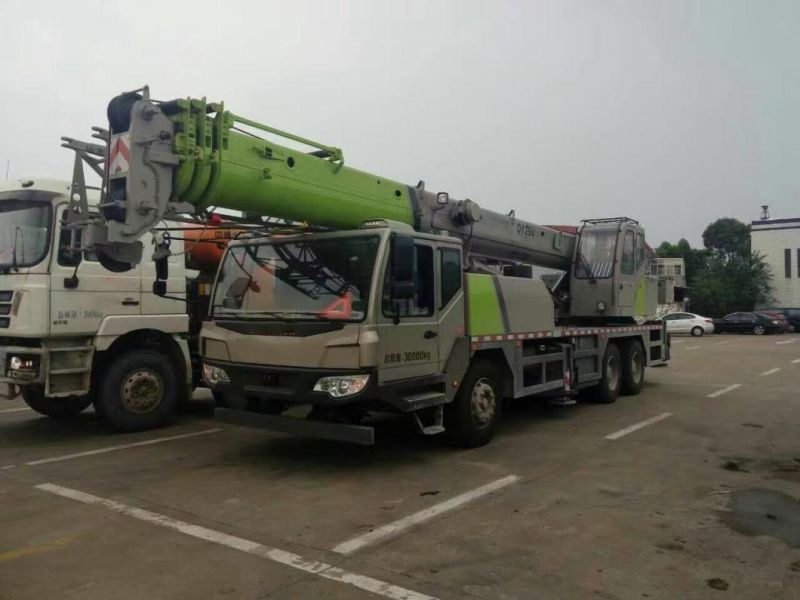

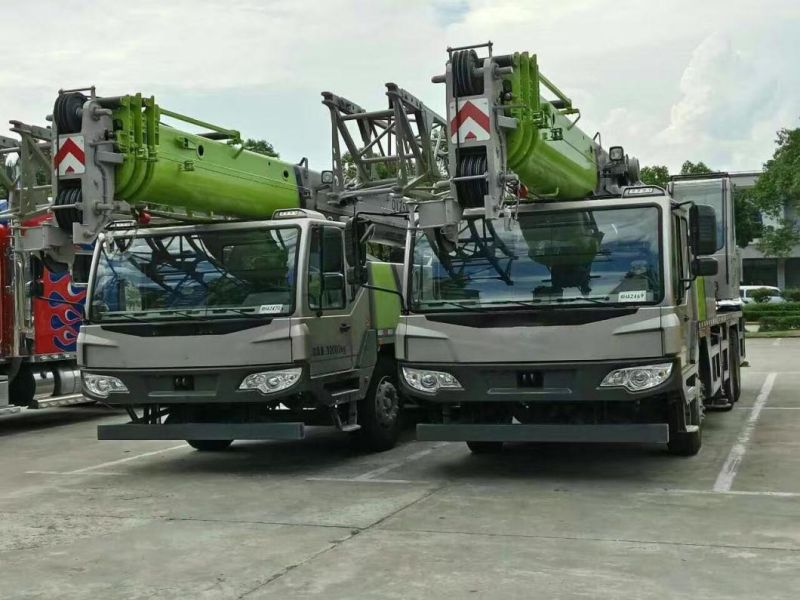

• Model NO.：QY25V
• Shaft Number：2
• Crane Jib：Four-Arm
• Type：Folding
• Transport Package：1*40fr+6*40hq
• Specification：9300*2400*3210mm
• Origin：China
• Production Capacity：50000PCS,Year

projectQY25V542Working performance parametersMaximum rated total lifting weight kg25000Maximum lifting moment of basic boom kN.m1058Maximum lifting moment of the longest main boom kN.m588Lifting height of basic boom m11.1Lifting height of main boom m40.5Maximum lifting height of jib m48.5Speed of workMaximum speed of single rope (main winch) m/min120Maximum speed of single rope (auxiliary winch) m/min100Boom boom time s40Boom extension time s80Rotation speed r/min0~2.2Driving parametersMaximum operating altitude m2000Maximum driving speed km/h78Maximum grade %37Minimum turning radius m≤22Minimum ground clearance mm220Fuel consumption per hundred kilometers L35Quality parameterSelf-weight in driving state (total mass) kg32400Whole vehicle curb weight kg32270Front axle load kg6900Axle load of rear axle kg25500Size parametersOverall dimensions (length×width×height) mm12900×2500×3465Longitudinal distance of outrigger m5.36Lateral distance of outrigger mFull extension 6.1, half extension 4.2Radius of tail gyration mm3385Boom length m10.6~40Elevation angle of main boom °-2~80Jib length m8Jib elevation angle°0, 30
