• Model NO.：JM23
• Trademark：JMMARINE
• Origin：China
• HS Code：8426990000
• Production Capacity：10 Sets ,Months

Basic Info.

Model NO. JM23 Trademark JMMARINE Origin China HS Code 8426990000 Production Capacity 10 Sets /Months

Product Description

1.1 The davit is manufactured and tested under the approval of ABS/BV/CCS/LR/DNVGL... in compliance with the requirements of MSC.47(66)---1974 SOLAS Amendments



• MSC.48(66)---Imitational LSA.

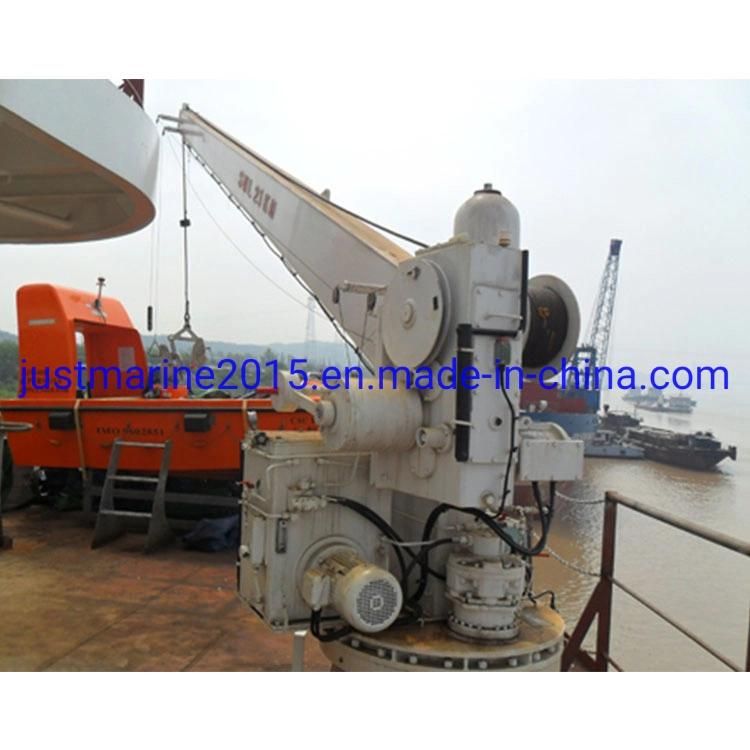

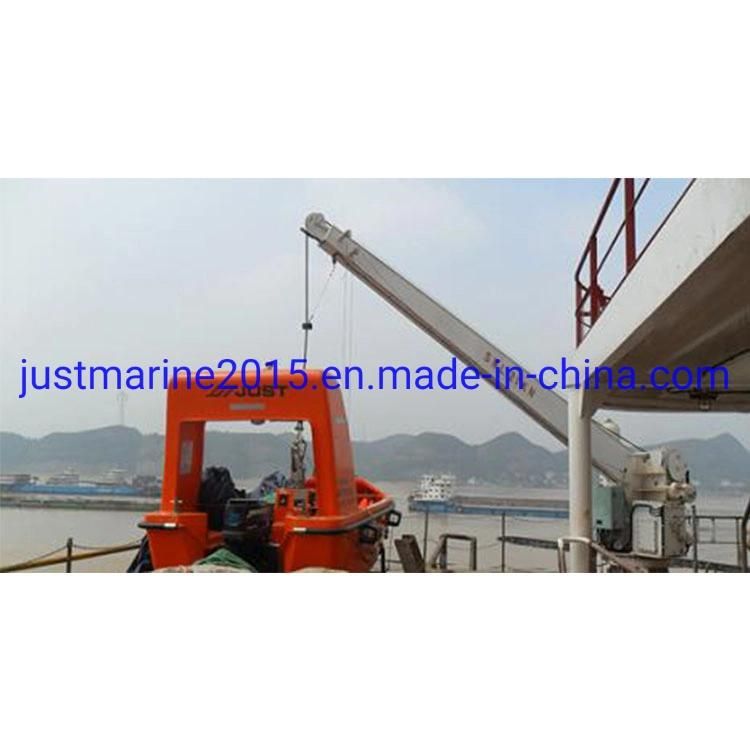

1.2 The davit is a single arm slewing type davit and it lowers the boat on the water by the help of its own weight.

1.3 The davit is a hydraulic slewing type davit and accumulator or manual pump driven in case of power failure would slew it.

1.4 The boat is lowered by means of remote control, that the crew can release and stop the hand brake of the winch from inside of the boat via wire connection to the brake arm and wire spool on the winch. Alternatively the crew can operate the hand brake on the deck.

1.5 A permanently mounted motor on the winch is used for hoisting the rescue boat with 6 persons back to the stowed position.

1.6 The winch drives wire drums by means of motor through the reduction spur gears and equipped with centrifugal speed limiting device, manual lowering brake.

1.7 The inspections and tests of davit appliances are in accordance with the IMO MSC.81(70).

2.  Model

Davit model: SINGLE ARM BOAT DAVIT

Max. working: load of davit: 23KN

Davit hoisting load:   14KN

Davit slewing load:  14KN

Hoisting speed of rescue boat:  ≥18m/min

Lowering speed of boat (designed): 40~60m/min

Designed conditions: Heel 20⁰ +trim 10⁰

Size of boat fall:    φ 16-1670+FC-Galv.-nontwist type

Pump station Max. slewing angle:  ≤330⁰

Accumulator power slewing angle:  ≥110⁰

Type of accumulator: NXQ-AB-40/31.5-F-Y

Slewing speed in electric power driven:~0.25r/min

Slewing radius: 3800mm

Hoisting height:     25m

Type of stored power unit:

Motor for pump station                                   Motor for rescue boat winch

Model: Y112M-4-H                                                  Model: YZ132M1-4-H

Power: 4KW                                                                      Power: 5.5KW

Protection grade: IP56                                            Protection grade: IP56

Insulation class: "F"                                                  Insulation class: "F"

Power source: AC380V, 50Hz, 3 phrases

Self weight:~2300Kgf

Type of boat: 40 rescue boat
Dimensions:   L×B×H=4.00×1.86×0.86 (m)

Qty. of persons:  6p

Weight of empty load boat (including all equipment): 585 kg


Total weight of boat:

1080kg



1. Scope of our supply 1(one) ship set(s) consisting of

1 set        A complete set of davit

1 set        Control box of electric (IP56)

1 set        Push button (IP56) (for rescue boat winch)

1 set        Spare parts

1 set        Operating plate

3 sets        Limit switches (including mounted on the winch)

1 copy        Technical documents with the product

------------necessary drawings

------------operation instruction

------------list of spare parts

------------certificate of quality

-----------certificate for marine product


1. Items excluded from our supply

-----------Cable on the deck

-----------Gear oil

------------Performing in board test1.1 The davit is manufactured and tested under the approval of NK in compliance with the requirements of MSC.47(66)---1974 SOLAS Amendments



• MSC.48(66)---Imitational LSA.

1.2 The davit is a single arm slewing type davit and it lowers the boat on the water by the help of its own weight.

1.3 The davit is a hydraulic slewing type davit and accumulator or manual pump driven in case of power failure would slew it.

1.4 The boat is lowered by means of remote control, that the crew can release and stop the hand brake of the winch from inside of the boat via wire connection to the brake arm and wire spool on the winch. Alternatively the crew can operate the hand brake on the deck.

1.5 A permanently mounted motor on the winch is used for hoisting the rescue boat with 6 persons back to the stowed position.

1.6 The winch drives wire drums by means of motor through the reduction spur gears and equipped with centrifugal speed limiting device, manual lowering brake.

1.7 The inspections and tests of davit appliances are in accordance with the IMO MSC.81(70).

2.  Model

Davit model: SINGLE ARM BOAT DAVIT

Max. working: load of davit: 23KN

Davit hoisting load:   14KN

Davit slewing load:  14KN

Hoisting speed of rescue boat:  ≥18m/min

Lowering speed of boat (designed): 40~60m/min

Designed conditions: Heel 20⁰ +trim 10⁰

Size of boat fall:    φ 16-1670+FC-Galv.-nontwist type

Pump station Max. slewing angle:  ≤330⁰

Accumulator power slewing angle:  ≥110⁰

Type of accumulator: NXQ-AB-40/31.5-F-Y

Slewing speed in electric power driven:~0.25r/min

Slewing radius: 3800mm

Hoisting height:     25m

Type of stored power unit:

Motor for pump station                                   Motor for rescue boat winch

Model: Y112M-4-H                                                  Model: YZ132M1-4-H

Power: 4KW                                                                      Power: 5.5KW

Protection grade: IP56                                            Protection grade: IP56

Insulation class: "F"                                                  Insulation class: "F"

Power source: AC380V, 50Hz, 3 phrases

Self weight:~2300Kgf

Type of boat: 40 rescue boat
Dimensions:   L×B×H=4.00×1.86×0.86 (m)

Qty. of persons:  6p

Weight of empty load boat (including all equipment): 585 kg


Total weight of boat:

1080kg



1. Scope of our supply 1(one) ship set(s) consisting of

1 set        A complete set of davit

1 set        Control box of electric (IP56)

1 set        Push button (IP56) (for rescue boat winch)

1 set        Spare parts

1 set        Operating plate

3 sets        Limit switches (including mounted on the winch)

1 copy        Technical documents with the product

------------necessary drawings

------------operation instruction

------------list of spare parts

------------certificate of quality

-----------certificate for marine product


1. Items excluded from our supply

-----------Cable on the deck

-----------Gear oil

------------Performing in board test


4

-----------Assembly (after the work endurance test, the davit is dismantled for

shipment and installed on offshore)

5. Painting

Surface treatment: shot blasting Sa2.5 before primer painting

Painting:


Primer paint: zinc epoxy--------------

2×50μ m

4-----------Assembly (after the work endurance test, the davit is dismantled for shipment and installed on offshore)
5. Painting

Surface treatment: shot blasting Sa2.5 before primer painting

Painting:


Primer paint: zinc epoxy--------------

2×50μ m
