• Model NO.：QY25K-II
• Shaft Number：2
• Crane Jib：Four-Arm
• Type：Folding
• Transport Package：1*40fr+6*40hq
• Specification：9300*2400*3210mm
• Trademark：SINOMADA
• Origin：China
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. QY25K-II Shaft Number 2 Crane Jib Four-Arm Type Folding Transport Package 1*40fr+6*40hq Specification 9300*2400*3210mm Trademark SINOMADA Origin China Production Capacity 50000PCS/Year

Product Description

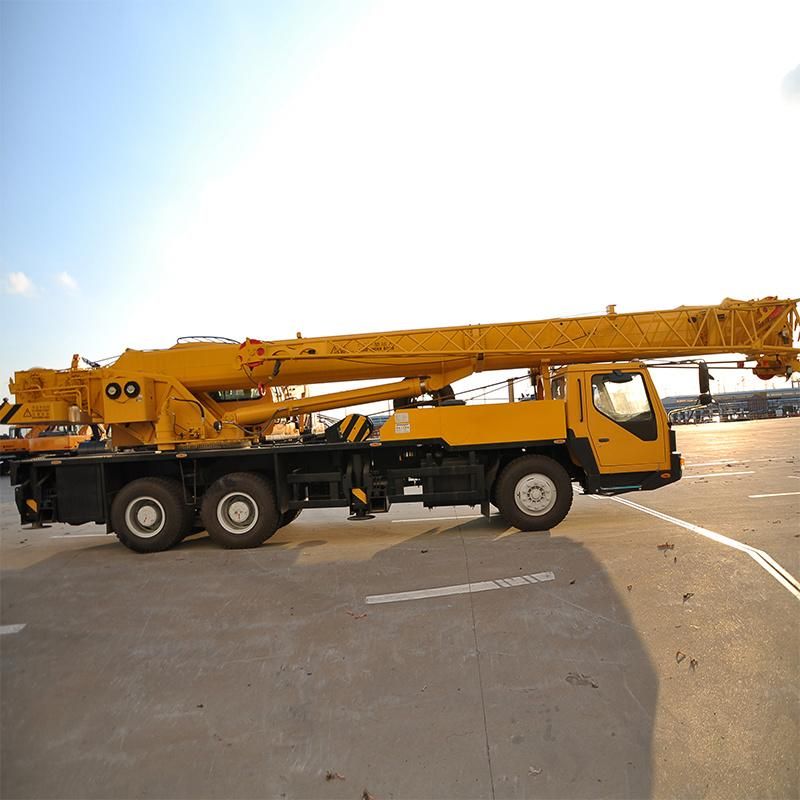

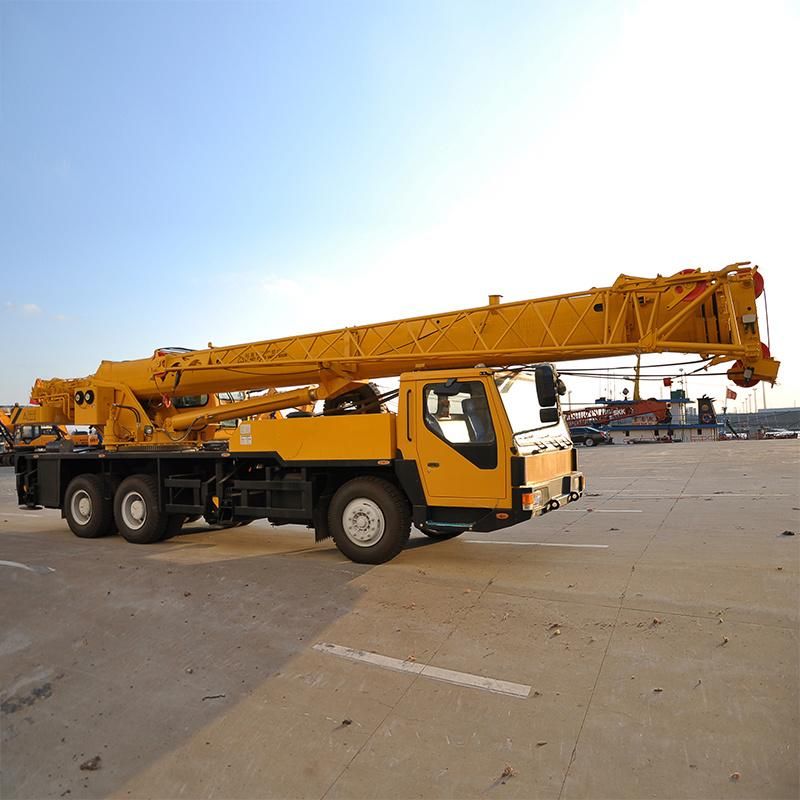

China Construction Machinery 25ton  QY25K-II  Truck Crane  for Sale


Maximum lifting weight:	25000kg
(Basic boom + jib) maximum lifting height:	41.15m
Engine power:	206kw
engine model:	SC8DK280Q3
Engine rated speed:	2200r/min
Maximum engine torque:	1112/1400N.m
Minimum rated range:	3m
Maximum lifting height of basic boom:	10.6m
The maximum lifting height of the longest main boom:	33m
Longest main boom + maximum lifting moment of jib:	1000kN.m
Distance from the center of rotation to the rear of the chassis:	3065mm
Longitudinal outrigger span:	5.14m
Span of cross leg:	6m
Boom lifting/falling time:	75s
Horizontal outrigger extension/retraction time:	100s
Main lifting speed (no load/full load, single rope):	120m/min
Assistant lifting speed (no load/full load, single rope):	120m/min
Swing speed:	2.5r/min
Driving speed (high/low):	75km/h
Minimum turning radius:	11000m
Minimum ground clearance:	260mm
Approach angle:	16°
Departure angle:	13°
Maximum climbing ability:	30%
Fuel consumption per hundred kilometers:	37L/100km
Overall machine quality in driving state:	29400kg
Number of axes:	3
Axle load:	6200/23200/23200kg
Vehicle length:	12550mm
Vehicle width:	2500mm
Vehicle height:	3380mm
