Pendent Control Floor Mounted Free Standing Jib Crane

Shandong Mingdao Heavy Industry Machinery Co., Ltd.

Certification：GS, CE, ISO9001
Condition：New
Application：Workshop, Warehouse, Coal Stack, Port, Wharf, Construction Site, Mine
Anchor：Removable
Structure：Solid Web
Material：Steel

Base Info

Model NO.：QB
Type：Cantilever
Power Source：220V,380V,415V on Request
Rotation Degree：360
Mounted Type：Floor , Foundation or Sleeve Mounted
Crane Boom：I Shape
Using Condition：Indoor , Outdoor
Color：Industrial Orange , Red
Work Duty：A3-A5
Rated Lodaing Weight：0.25t-20t on Request
Aftersale Service：Engineer Oversea or Video Guidance Avalable
Lifting Mechanism：Rope Hoist
Leading Time：7 Days
Materials：Q235B
Rotation Speed：0.7r,Min
Cross Travel Speed：20m,Min
IP Rate：IP55
Transport Package：Plywood Box
Specification：Popular fixed pillar jib crane
Trademark：Mingdao
Origin：Shandong, China
HS Code：8426300000
Production Capacity：1000sets, Year

Description

TypeBZ0.25BZ0.5BZ1BZ2BZ3BZ5BZ8BZ10Lift Capacity (t)0.250.51235810Max. Lift Height(m)33334468Slew Angle(0)360360360360360360360360Lift Speed (m/min)Normal4;10;85;10;8888888Slow1;2.5;0.81.25;2.50.80.80.80.80.80.8Level Travel Speed (m/min)2020202020202020Slewing Speed (r/min)0.70.70.70.70.60.60.60.6Lift mechanismwire rope electric hoist or chain electric hoistPower supply380-420V/3phase/50hz or customizedControl modePendent push button control or remote controlAbove parameter just for your reference,jib crane can be customized design Max.20t according to your demands.

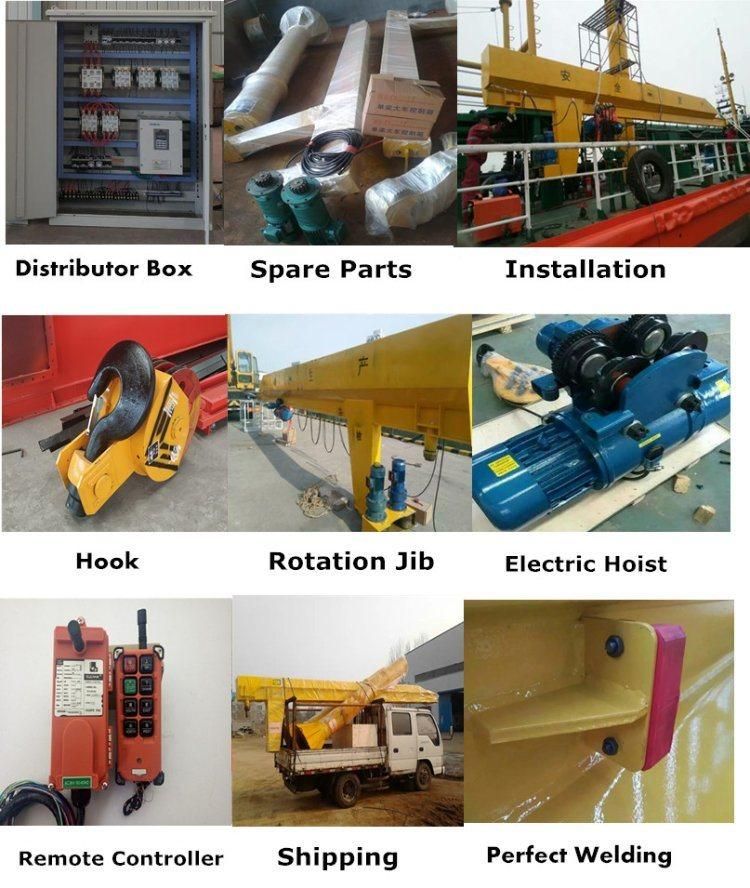

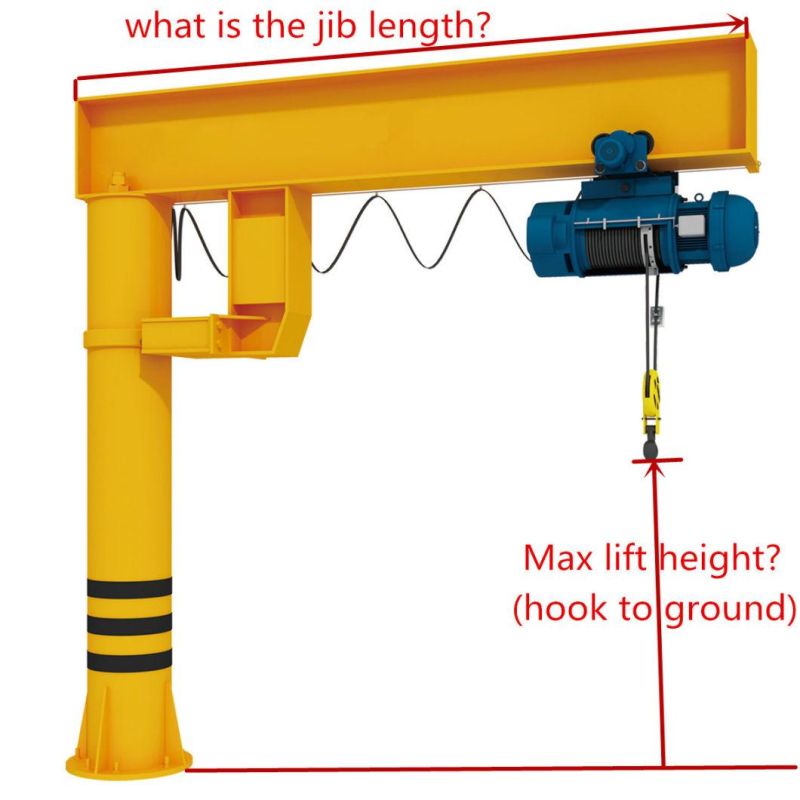

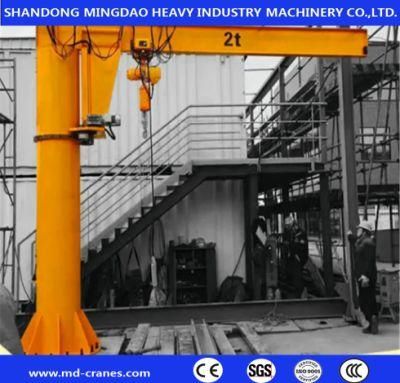

Product Details:
Pendent Control Floor Mounted Free Standing Jib Crane

Pendent Control Floor Mounted Free Standing Jib Crane

Pendent Control Floor Mounted Free Standing Jib Crane

Mingdao Company Certificates:
