• Model NO.：deck crane
• Type：Under-Slewing Crane
• Capacity：1-500 Ton
• Size：Design as Per Your Requirements
• Swl：5-1200kn
• Lifting Height：2-60m
• Lifting Speed：15 M,Min
• Max. Outreach：6-40m
• Certificates：CCS,ABS,BV,Dnv,Gl,Lr,Nk,Rina
• Warranty：12 Months
• Custom：Yes
• Keywords：Deck Crane
• Transport Package：Deck Crane Is Packed by Wooden Case
• Specification：deck crane is produced with the standard of CCS
• Trademark：TRUST
• Origin：Deck Crane Is Made in Jiangsu
• Production Capacity：Deck Crane Is Prodcued 1000 PCS,Quater

Basic Info.

Model NO. deck crane Type Under-Slewing Crane Capacity 1-500 Ton Size Design as Per Your Requirements Swl 5-1200kn Lifting Height 2-60m Lifting Speed 15 M/Min Max. Outreach 6-40m Certificates CCS,ABS,BV,Dnv,Gl,Lr,Nk,Rina Warranty 12 Months Custom Yes Keywords Deck Crane Transport Package Deck Crane Is Packed by Wooden Case Specification deck crane is produced with the standard of CCS Trademark TRUST Origin Deck Crane Is Made in Jiangsu Production Capacity Deck Crane Is Prodcued 1000 PCS/Quater

Product Description

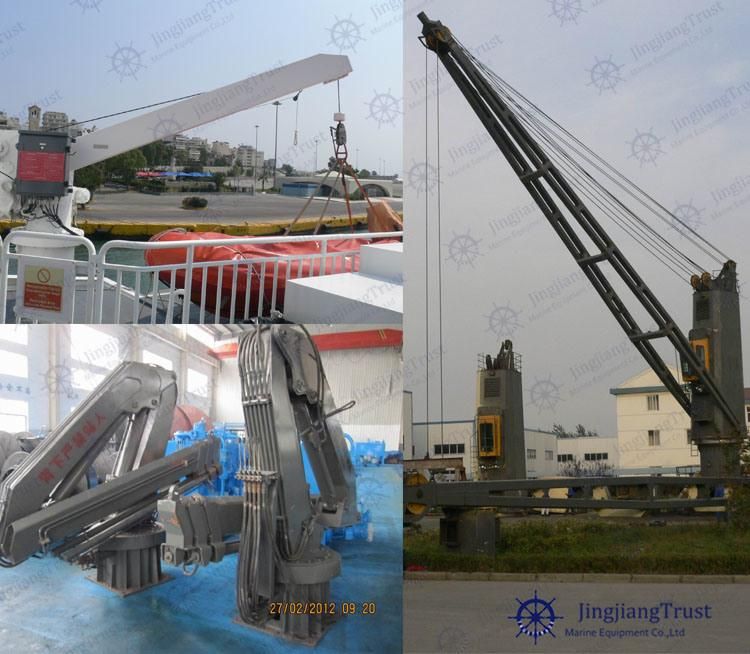

Deck Crane Supplier, Deck Crane Manufacturer

Basic features:

Self contained unit with integrated power pack

Simple mounting the pedestal to deck by welding or bolts and connecting the power cable

No electric slipring

Fail-safe brakes on all movements

Welded box boom (jib) for low maintenance

Maintenance-free jib and cylinder bearings.



Standard equipment:

Shot blasted to SA2,5 plus 2 layers of marine paint

Pedestal height between 1.1 and 1.5 m

Class certificate on the pedestal

Control platform on the crane (left or right-hand side)

Full documentation/Owner's manua

Working radius and lifting capacity (SWL) according to customer's request.


Basic specification for enquiry:

1. Max.working load
2. Max.outreach
3. Min.outreach
4. Hoisting height
5. Hoisting speed
6. Luffing time
7. Classification society

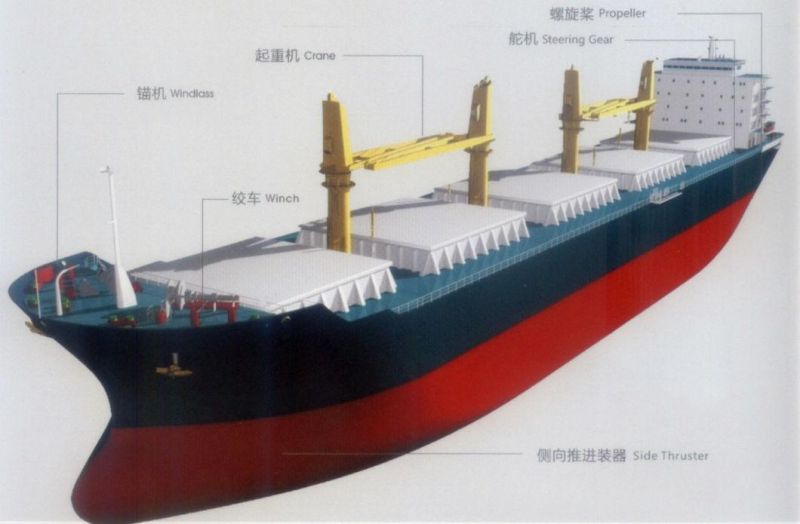

Our company can provide package supply for Deck Machinery System (including Winch, Windlass, Capstan, Crane, etc.), Propulsion system (including Propeller, Tunnel thruster, etc.) and Steering gear. All products can provide CCS, LR, ABS, DNV, BV, GL, NK, KR, RINA certificates.

Type	Safety Load (KN)	Max Outreach (m)	Lifting Speed (m/min)	Slewing Speed (r/min)	Luffing Time (s)	Hoisting Height (m)	SlewingAngle (°)	Permissible Heeling (transverse/longitudinal)(°)	Power (kw)
YQ1	10	6-20	15	1	60	30	360	2 / 5	7.5
YQ1.5	15	8-22	15	1	60	30	360	2 / 5	11
YQ2	20	5-24	15	1	60	30	360	2 / 5	15
YQ3	30	8-25	15	0.9	70	30	360	2 / 5	22
YQ5	50	12-25	15	0.75	80	30	360	2 / 5	37
YQ8	80	12-25	15	0.75	100	40	360	2 / 5	55
YQ10	100	12-25	15	0.75	110	40	360	2 / 5	75
YQ15	150	12-28	15	0.6	110	30	360	2 / 5	90
YQ20	200	16-30	15	0.6	120	35	360	2 / 5	75*2
YQ25	250	20-35	15	0.5	130	40	360	2 / 5	90*2
YQ30	300	35	15	0.4	140	40	360	2 / 5	90*2
YQ35	350	20-40	15	0.5	150	45	360	2 / 5	110*2
YQ40	400	20-40	15	0.5	150	45	360	2 / 5	140*2
YQ45	450	25-40	15	0.45	160	50	360	2 / 5	140*2
YQ50	500	20-40	15	0.45	170	50	360	2 / 5
