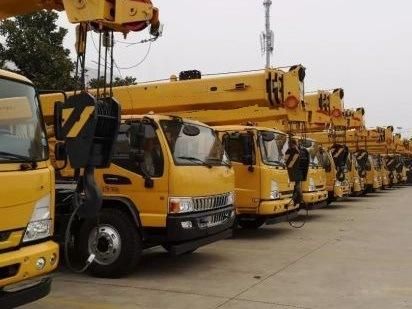

• Model NO.：TC80C4
• Shaft Number：2
• Crane Jib：Four-Arm
• Type：Folding
• Transport Package：1*40fr+6*40hq
• Specification：9300*2400*3210mm
• Origin：China
• Production Capacity：50000PCS,Year

Main arm length

8290-26800 mm

Engine rated power

103kW@2600rpm

Maximum rated lifting weight

10 t

Maximum lifting moment of basic boom

317 kN·m

Overall length

10200 mm

Overall width

2400 mm

Overall height

3210 mm

Total mass of the whole machine

13580 kg

Front axle load

4860 kg

Rear axle load

8720 kg

engine model

Yu-chai YC4E140-56

Maximum engine power

103kW@2600rpm

Engine maximum output torque

500N·m@1300~1600rpm

Maximum travel speed

90 km/h

Minimum turning radius

9 m

Approach angle

18 °

Departure angle

15 °

Maximum grade

0.35

Maximum rated total lifting capacity

10 t

Turntable tail radius of gyration

2.404 m

Maximum lifting moment (basic boom)

317 kN·m

Maximum lifting moment (longest main boom)

225 kN·m

Outrigger span (horizontal×vertical)

5.0×4.4 m

Basic boom length

8.29 m

The longest main boom length

26.8 m

Maximum speed of single rope of main winch (no load)

130 m/min

Maximum speed of auxiliary winch single rope (no load)

130 m/min

Boom fully extended/retracted time

45/30 s

Full lifting/falling time of boom

30/40 s

Swing speed

0~2.6 r/min
