Zoomlion Ztc250r531 25 Ton Mobile Crane Telescopic Boom Truck Crane
Zoomlion Heavy Industry Science & Technology Co., Ltd.- Certification：ISO9001
- Condition：New
- Hydraulic Cylinder Brand：Teli
- Rated Loading Capacity：25 Ton
- Warranty：1 Year
- After Warranty Service：No Service
Base Info
- Model NO.：Ztc250r531
- Feature：Truck Crane
- Rated Lifting Moment：960kn.M
- Unique Selling Point：High Operating Efficiency
- Core Components：Gear, Pump, Engine
- Hydraulic Valve Brand：Zoomlion
- Hydraulic Pump Brand：Keyuan
- Max. Lifting Height：40m
- Marketing Type：New Product 2020
- Showroom Location：None
- Engine Brand：Weichai
- Video Outgoing-Inspection：Not Available
- Trademark：ZOOMLION
- Origin：China
Description
Dimensions
Overall dimensions (L×W×H)
mm
12600×2500×3450
Longitudinal distance between outriggers
m
5.40
Transversal distance between outriggers
m
For completely extended outrigger: 6.2 mfor intermediately extended outrigger: 4.25 m
Tail slewing radius
mm
3265
Main boom length
m
10.2 - 40.0
Main boom angle
°
-1 - 80
Jib length
m
8
Offset
°
5, 17, 30
Company Information
Founded in 1992, Zoomlion Heavy Industry Science & Technology Co., Ltd. is mainly engaged in developing and manufacturing major high-tech equipment in the areas of engineering industry and agricultural industry. With more than 20 years of innovation and development, the company is now a global enterprise possessing 10 major categories and 55 product lines, as well as nearly 460 leading products. Zoomlion is China's first construction machinery company to be listed on both Shenzhen and Hong Kong stock exchanges, with registered capital amounting to RMB 7.664 billion. At present, the company is actively promoting strategic transformation, aiming to build a high-end equipment manufacturing enterprise integrating engineering machinery, agricultural machinery and financial services.

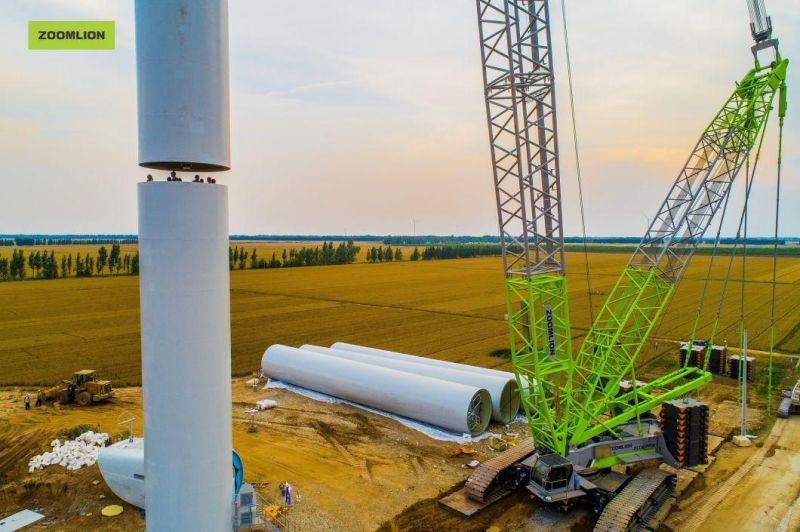

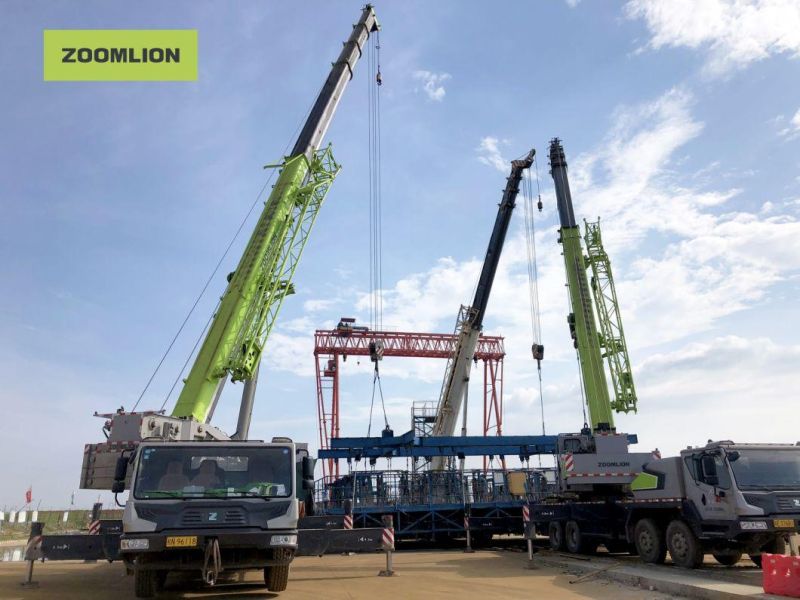

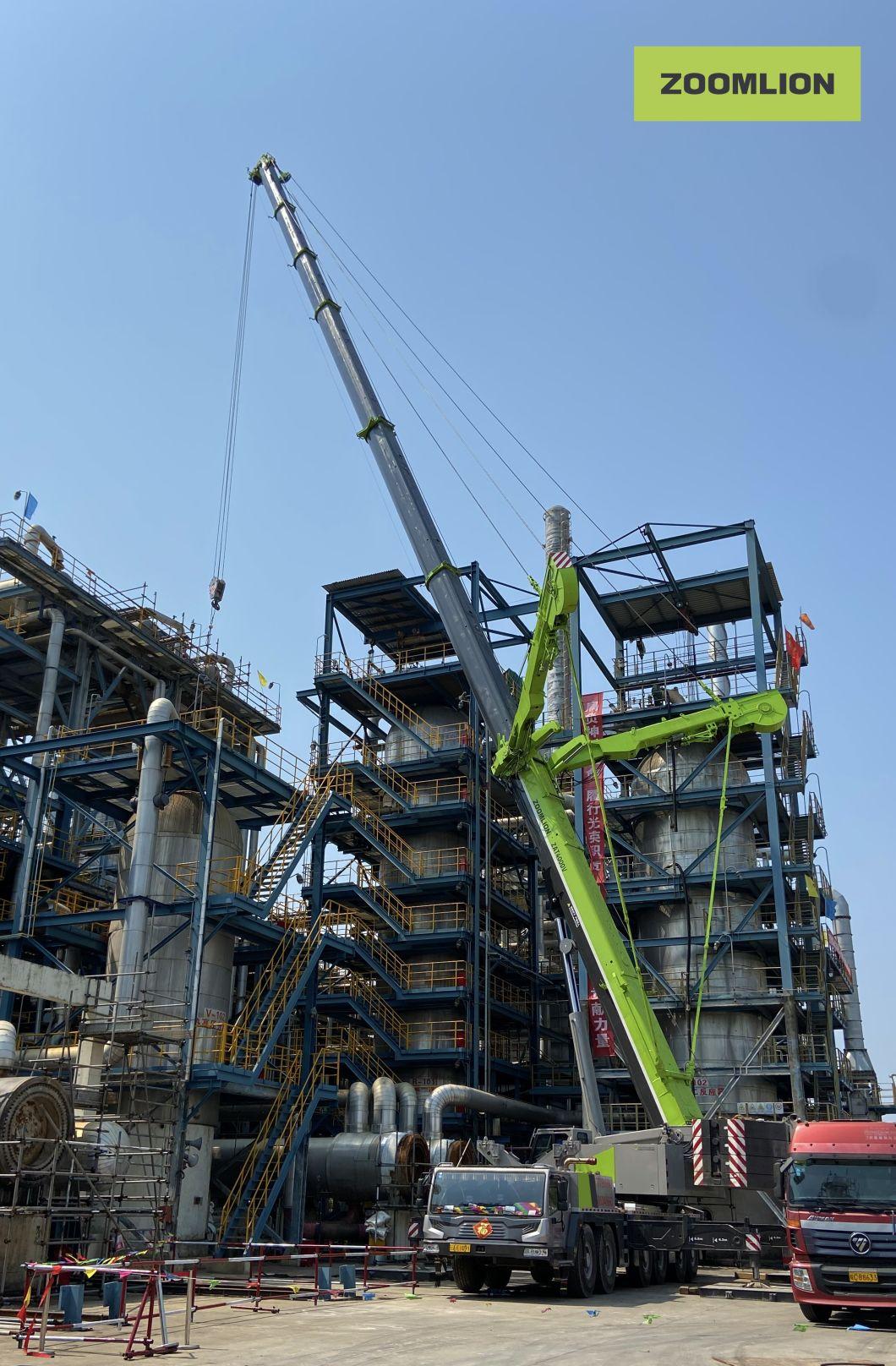

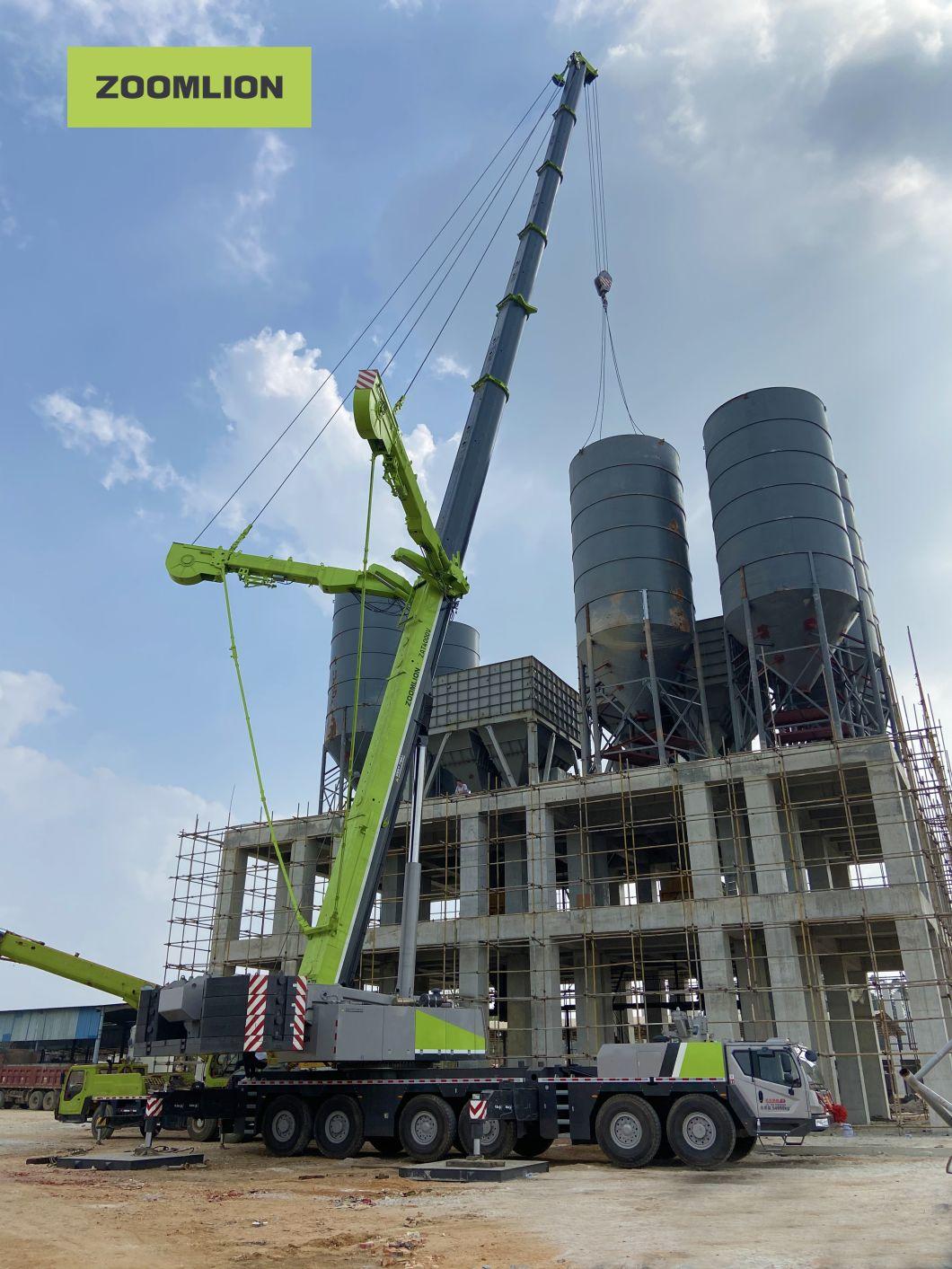

Application Cases
