16 Ton 5X8 Telescopic Boom Mounted Crane with Truck
JINING OKING TEC CO., LTD.- Certification：ISO9001
- Condition：New
- Maximum Lifting Height：30-40m
- Maximum Lifting Weight：14-16t
- Shaft Number：2
- Crane Jib：Five-Arm
Base Info
- Model NO.：OKT-16T
- Type：Folding
- Truck Brand：Kama , Foton , Dongfeng
- Total Mass：16335 Kg
- Overall Dimension：11620mm*2440mm*3550mm
- Rated Elevating Capacity ：16000 Kg
- Max. Lifting Height：33 M
- Transport Package：Fr Container
- Specification：17000 kgs
- Trademark：OUKE
- Origin：Jining, China
- HS Code：8705102100
- Production Capacity：100 Unit , Month
Description
Basic Info.
Model NO. OKT-16T Type Folding Truck Brand Kama / Foton / Dongfeng Total Mass 16335 Kg Overall Dimension 11620mm*2440mm*3550mm Rated Elevating Capacity 16000 Kg Max. Lifting Height 33 M Transport Package Fr Container Specification 17000 kgs Trademark OUKE Origin Jining, China HS Code 8705102100 Production Capacity 100 Unit / MonthProduct Description

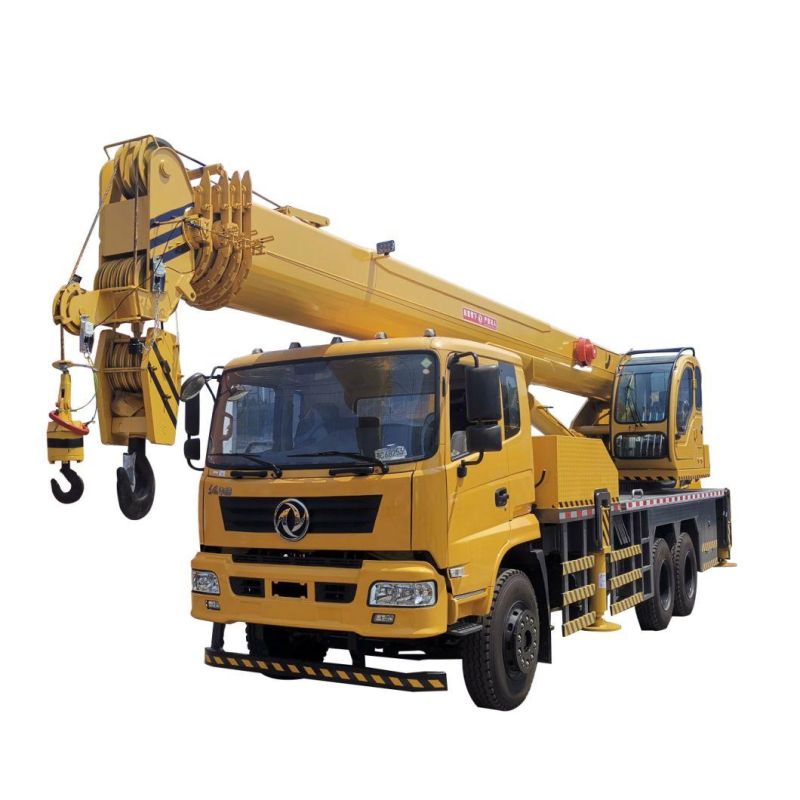

16 Ton 5X8 Telescopic Boom Mounted Crane with Truck
The optimizing layout of the machine makes the stress of the main bearing carriers more reasonable, and the lifting performance is higher than the products with the same tonnage.
• Apply the mature jib technique which integrates plug-in boom head, embedded boom block, and special telescoping mechanism, which makes the jib more stable and reliable.
• Optimize the stress design. Adopt the box-type outriggers which have larger span, stronger rigidity, and better stability.
Product parameters
| No | Items |
| Chassis | Futian Ruiwo car crane special chassis. |
| Engine | YC4S140-50 |
| tires | 900R20 |
| brake | air brake |
| Direction | Hydraulic boost |
| wheelbase | 4400mm |
| the highest speed | 85Km / h |
| single arm length | 8m |
| boom number | 5 |
| boom structure | inner rope |
| thick section boom size | height 58 cm, width: 48 cm |
| Number of lifting legs | 5 (two legs on the side, and auxiliary hind legs) |
| side leg structure | double leg, unilateral leg span 2 meters (from the body) |
| Outrigger span | spans 6.25 meters; longitudinal span: 5 meters |
| hydraulic system | three pump confluence system |
| Fan heat system | air-cooled fan heat system |
| motor | 18.5kw (optional) |
| double winch | double inclined shaft plunger motor hydraulic winch |
| large structure | I-shaped steel box large frame |
| Appearance size | length 11250mm; width 2400mm; height 3300mm |
| the total quality | 17500kg |
