• Model NO.：MG
• Main Girder Form：Single Girder
• Color：Red Per Your Request
• Capacity：10t-200t
• Lfiting Height：6m Per Your Demand
• Powe Supply：380V
• Span：22-40m
• Range：Double Girder Gantry Crane
• Power Supply：380V,50Hz,3p, Can Be Customized
• Electrical System Brand：Siemens,Schneider,Chint
• Affiliate Documents：English Operation Manual, Wiring Diagram
• Hoist Lift Speed：0.8,8 M,Min
• Transport Package：Wooden Box for Electric Parts
• Specification：CE
• Trademark：LYFOOCRANE
• Origin：Henan, China (Mainland)
• HS Code：84253190
• Production Capacity：800 Units

Basic Info.

Model NO. MG Main Girder Form Single Girder Color Red Per Your Request Capacity 10t-200t Lfiting Height 6m Per Your Demand Powe Supply 380V Span 22-40m Range Double Girder Gantry Crane Power Supply 380V/50Hz/3p, Can Be Customized Electrical System Brand Siemens/Schneider/Chint Affiliate Documents English Operation Manual, Wiring Diagram Hoist Lift Speed 0.8/8 M/Min Transport Package Wooden Box for Electric Parts Specification CE Trademark LYFOOCRANE Origin Henan, China (Mainland) HS Code 84253190 Production Capacity 800 Units

Product Description

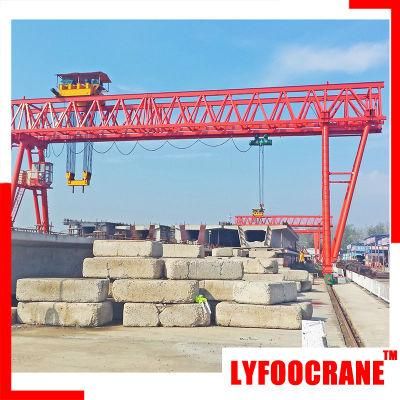

MGA Precast Beam/Girder Handling Gantry Crane

Designing Concept:
MGA double beam gantry crane for precast beam handling is a crane system by using 2 units of same capacity gantry crane. The capacity normally is 80t, 100t, 160t, 200t and 250t.  The 2 units of gantry crane will lift the precast beam synchronized.

Working Site:
It is special used for temperory site, such as road costruction site, bridge construction site.   The average production time is 1-3 years.

Features of Gantry crane:
Structure: All structure adopts truss frame, and legs are collumn.
Hoist: A winch system combined by pulley system.
Crane travel: Light duty motor and reducer.

Some Technical Parameter

Capacity/t	10/3.2 16/3.2 20/5 32/5 50/10 80/20 100/50 125/30 160/30
Span/m	22  26  30  35  40
Power Supply	Three Phrase Alternating Current

Technical Characteristics:
1) Hard-tooth surface of reducer
2) Steel winding drum
3) Imported rope
4) Converter function of adjustable speed without contact or module
5) Intelligence controlling
6) Trinity drive

Components:

1. Main girder
2. Saddle
3. Legs
4. Cab and ladder installation
5. Crane traveling mechanism
6. Electric wire rope hoist
7. Operate handle
8. Floor girder
9. Track and conductive device

Features:
1) Reasonable structure
2) Favorable performance
3) Smooth starting and stopping
4) Safe and reliable traveling
5) Low noise, commodious cabin and good view
6) Convenient maintenance, excellent exchangeability for parts and components
7) Saves electricity

1. Main Girder
Be welded of steel plates with honeycomb hole, connected by high-strength precision bolt.
There are sliding rail for trolley to travel upper the girder which is fixed on outrigger by high-tension precision bolt.

2. Outrigger
A. Consist of rigid outrigger and flexible outrigger, all connection points are connected by high-tension bolt
B. The ladder is used by operator to enter into cab or arriving at winch
C. When the span>30m, there need a flexible leg aiming at reducing the lateral thrust the trolley has to the rail when the girder load objects

3. Travelling mechanism
A. The driving gear box supplys power to realize the crane's travelling.
B. What the difference between driving gear box and passive wheel box is that passive wheel box lacks transmission structure such as dynamo,

4 Reducer and a pair of exposed gear4. Trolley with hoist
A. Trolley frame welded of steel plate is the loading and travelling mechanism of trolley with hoisting
B. Winch is the lifting mechanism of trolley...When it works, wire rope affects the pulley as rising and falling movement,
Which makes suspended objects lifting and lowering

5. Cab
A. Glass window through which one can watch overall working condition is installed in the front and two sides of the cab
B. Electric cabinet as a group of independent cabinet, fixed outside of cab is connected by control cable and linkage station which is set up in the cab

Cause this is a customized product, please provide us the following information
Capacity?
Lifting Height? (from hook to the ground)
Span?
Local Power-V-Hz-P?
