• Model NO.：W6017-8,10
• Type：Top-Slewing Crane
• Trademark：Zoomlion
• Origin：China

Basic Info.

Model NO. W6017-8/10 Type Top-Slewing Crane Trademark Zoomlion Origin China

Product Description

Feature

Superior performance

1. The free-standing height of the 1.8m bolted integral masts can reach 51m, and the 60m long jib tip can lift
1.7t,which is highly adaptable to various construction conditions.

2. The maximum lifting capacity is 10t, and the maximum lifting speed is 100m/min.

3. Flexible tower configuration, 1.8m bolted integral mast, 1.6m fishplate pinned masts and 2m fishplate
pinned masts can be chosen.

Safe and reliable

1. Lifting weight triple protection, torque double protection, prevent overload.

2. Triple protection for lifting to prevent collision, double protection to prevent collision.

3. Intelligent detection and protection of electronic control system to prevent slipping hook.

4. Lifting trim control and lifting motor control to prevent jacking accidents.

5. The tower body is equipped with an inclined ladder, and the large platform is anti-falling.

6. Jib-pin connection, strong resistance to sudden unloading and accidental collision.

Paint upgrade

1. The structural parts are made of water-based paint, one wash and three baking process.

2. Platforms, ladders, and railings are fully immersed in zinc, and the walking platform aluminum alloy anti-
skid  design, anti-corrosion and rust prevention during the life cycle.

3. The driver's cab is formed by one-time punching, automotive-grade spot welding process, electrophoresis
process.

4. The inner cavity of the main chord of the tenon standard section is electrophoresed, and the paint adheres
evenly and firmly without blind spots.

Good handling

1. Brand-new frequency conversion slewing system, instant response to start and stop, no jitter in the whole
field,no swing back when stopping.

2. The millimeter-level ant speed is in place, the minimum is 5mm/s, and the jog responds instantly.

Excellent humanity

1. Integrated assembly in the factory, professional loading plan, effectively reducing packaging units and
transportation vehicles.

2. Fast assembly technology, the main structure is only 4 cranes, the fastest 4 hours from unloading to
installation and commissioning

3. Identify and add multiple core fault diagnosis, increase the text description of fault alarms, and improve

maintenance efficiency.

4. The electronic lifting weight limiter assists pre-calibration before leaving the factory to improve
construction efficiency.

5. The structural parts have strong versatility, and the body parts (including balance weight) can be used in
common with W6013/W6017.

6. Flexible wall attached to a wide range of use, strong applicability and convenient installation.

Parameters


Model	W6017-8/10
Max lifting weight (t)	8/10
Max lifting moment (t.m)	162
Max working range (m)	60
Max hoisting capacity at jib tip (t)	1.7
Free-standing height (m)	51
Max lifting speed (m/min)	95
Slewing speed (r/min)	0~0.6
Trolleying speed (r/min)	0~55

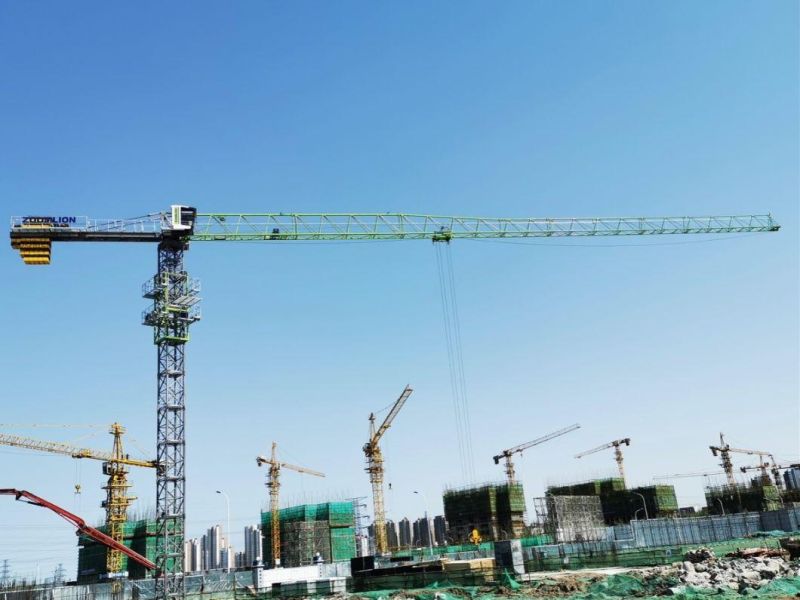

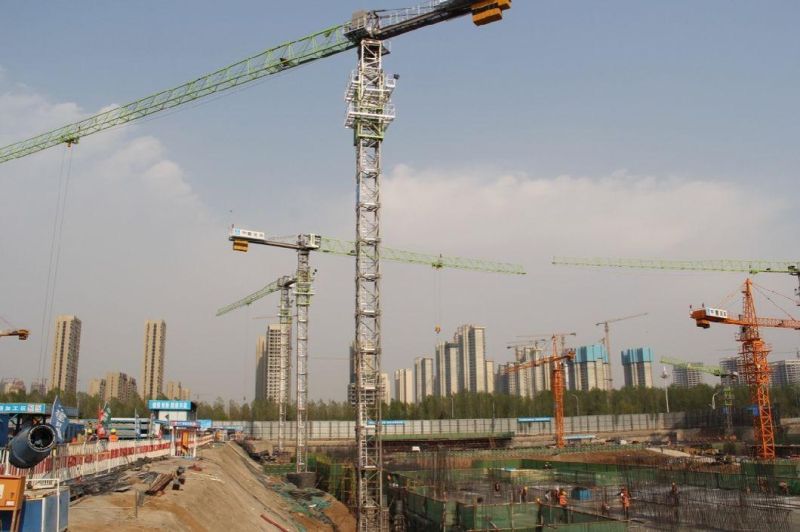

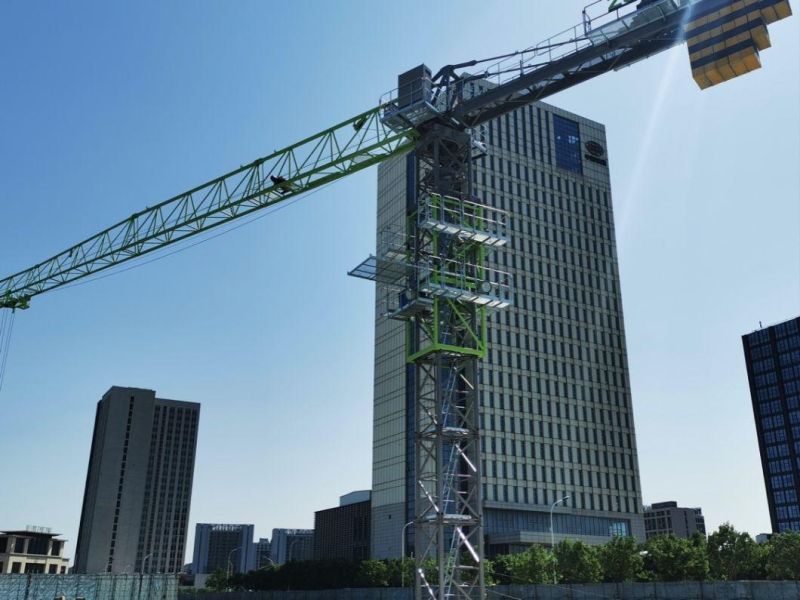

Product Show








Our Company



      Founded in 1992, Zoomlion Heavy Industry Science & Technology Co., Ltd. is mainly engaged in
      developing and anufacturing major high-tech equipment in the areas of engineering industry and
      agricultural industry.

      With more than 20 years of innovation and development, the company is now a global enterprise
      possessing    10 major categories and 55 product lines, as well as nearly 460 leading products. Zoomlion
      is China's first construction machinery company to be listed on both Shenzhen and Hong Kong stock
      exchanges, with registered   capital amounting to RMB 7.664 billion. At present, the company is actively
      promoting strategic transformation, aiming to build a high-end equipment.



      In 1956, the predecessor of Zoomlion, Changsha Construction Machinery Research Institute, developed
      the  first tower crane in China with independent intellectual property rights-QTZ160. With more than 60
      years of   technology inheritance and innovation, Zoomlion has now developed into a world-leading
     tower crane manufacturer and also the secretariat unit of the International Organization for
     Standardization/Crane Technical  Committee (ISO/TC96).

      The products of Zoomlion Construction Hoisting Machinery Company cover four series: hammer-head
      tower  cranes, flat-top tower cranes, luffing tower cranes and construction hoists. Many star products have
      been born  as well, such as the world's largest tonnage top-slewing jack-up Tower crane D5200, the
      world's longest-boom tower crane D1250, which set a world record for Guinness, the world's largest
      tonnage flat-top tower crane  T2850, and the world's largest tonnage internal climbing boom tower crane
      LH3350, which rolled off the assembly line in 2019.
