Double Girder Overhead Crane/Bridge Crane, Open Winch Crane
Lyfoo Industry Co., Ltd.- Certification：CE, ISO9001: 2000
- Condition：New
- Operation Form：Air Operation+Ground Operation
- Maximum Lifting Height：15-20m
- Maximum Lifting Weight：>200t
- Main Girder Form：Double Girder
Base Info
- Model NO.：LH
- Type：Single Girder Crane
- Color：Industrial Yellow and Red
- Application：Construction Usage, Workshop Usage
- Sling Type：Wire Rope
- Power Source：Electric
- Power Supply：380V,50Hz,3, Can Be Customized
- Affiliate Documents：English Operation Manual, Wiring Diagram
- Electrical System Brand：Siemens,Schneider,Chint
- Stepless Speed Control：Available (Variable Frequency Control)
- Hoist Lift Speed：0.8,8 M,Min
- Cross Speed：20 M,Min
- Transport Package：Wooden or Plastic
- Specification：A3-A5
- Trademark：zhongyuanshengqi
- Origin：Henan, China
- HS Code：84261120
- Production Capacity：100, 000 Sets Per Year
Description
Detailed Photos
Product Parameters
Critical distance between crab and upper platform of box section beam is optimize designed with 70%~80% measurement which compared to traditional product, therefore, workshop capital is saved.
High torque motor transmit power through hardened-tooth gear box connect by high speed shaft, optional with D.C brake or Hydraulic brake system. The integrate drive units outfit with winch and end carriage provide optimum performance, high precision, low noise while operation. Available modular speed regulation fulfill slow speed, double speed, frequency speed requirements, provide for each motion, comprehensively meets individual requirements.
Outfit with overloading alarm device, hook clashing protector, intelligent automatic limit switch, various safety protection measurement offer a more reliable operate experience.
Heavy Duty Winch Hosting System
- Work Duty can be designed to A5, A6, A7 and A8
- Hydraulic Brake for hoist and trolley
- Heavy duty gearbox
- IF44, IP54, F degree motor
Heavy Duty Long Travel System
- Work Duty can be designed to A5, A6
- Hydraulic Brake for long travel system
- Heavy duty gearbox
- IF44, IP54, F degree motor
Introduction

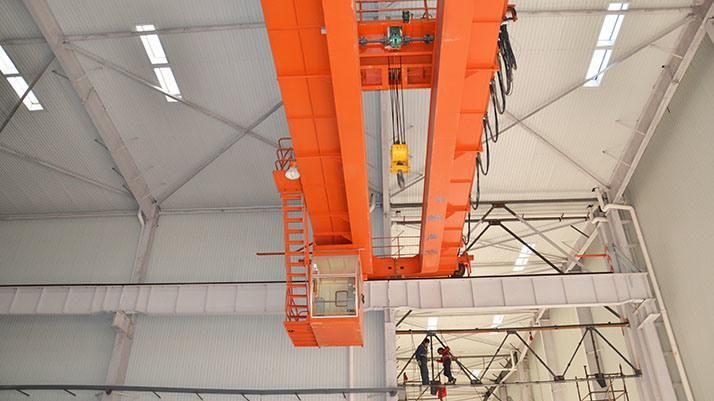

QD type double girder bridge crane, its trolley is bigger and stronger than LH type, reducer and brake separately. And this is the most important factor for working 24*7 hours per day. And this kind of heavy duty crane, it is widely used in plants, warehouses, materials stocks to lift goods or materials.
QD type crane mainly consists of two strong bridge beams, crane travelling mechanism, electric winch trolley and electric system, and could be classified into several working duties, e. G. A5, A6, A7, according to the working frequency and pure working time.
Safety insurance:1. Our cranes are all equipped with weight limiters, buffer, distance limit switch, voltage protection equipment, and emergency stop system and so on.2. The equipment is controlled by central control system. Quality guaranty:1. The quality of our crane would be guaranteed for one year, in this period, if any quality problem happens under correct operation, we will be responsible for repairing of replacing it for free.2. Low charge for maintenance when warranty is expired.
