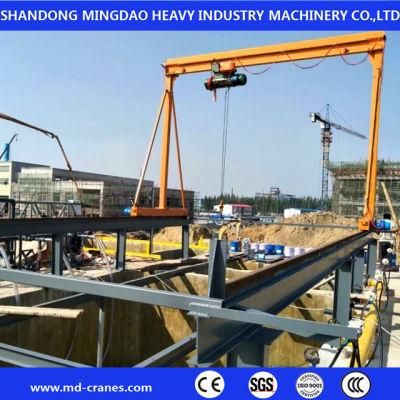

Simple Structure Small Size a Frame Gantry Crane Lifting Equipment
Shandong Mingdao Heavy Industry Machinery Co., Ltd.- After-sales Service：1 Year
- Warranty：2 Years
- Certification：CE, ISO9001, SGS
- Condition：New
- Maximum Lifting Weight：20-50t
- Maximum Lifting Height：30-40m
Base Info
- Model NO.：MH
- Operation Form：Remote+Pendant
- Type：Common Gantry Crane
- Main Girder Form：Single Girder
- Color：Yellow, Orange, and Customized
- Lift Height：30m or by Request
- Power Supply：Customized
- Girder Type：Box Type
- Working Class：A3
- Steel Material：Q235B,Q345b
- Span Size：30m or Customized
- Production Time：10-15 Days
- Transport Package：by Container or Bulk Ship
- Specification：customized
- Trademark：Mingdao
- Origin：China
- HS Code：842619300
- Production Capacity：1000set,Year
Description
Capacity
T
3
5
10
16
20
Span
m
12,16,20,24,30
Operational method
Pendent Line With Press Button /Cabin/ Remote
Speed
Lifting
m/min
8 ,8/0.8
8,8/0.8
7,7/0.7
3.5
3.5
Cross traveling
20
20
20
20
20
Long traveling
Ground
20
20
20
20
20
Cabin
20, 30,45
20, 30,40
30,40
30,40
30,40
Motor
Lifting
Type /kw
ZD41-4/4.5
ZDS1-4/0.4/4.5
ZD141-4/7.5 ZDS10.8/4.5
ZD151-4/13 ZDS11.5/4.5
ZD151-4/13
ZD152-4/18
Cross traveling
ZDY12-4/0.4
ZDY121-4/0.8
ZDY21-4/0.82
ZDY121-4/0.82
YZD-4/0.84
Long traveling
Ground
ZDY21-4/0.82
ZDY21-4/1.52
YZY22-4/1.52
YZR132M2-6/3.72
YZR22-4/1.52
YZR160M1-6/6.32
YZR160M2-6/8.52
YZR160M1-6/6.32
YZR160M2-6/8.52
Cabin
ZDR100-4/1.52
ZDR112-4/2.12
YZR112L1-4/2.12
YZR160M1-6/2.12
YZR112L1-4/2.12
YZR160M2
YZR160M2-6/8.52
YZR160L2-6/112
YZR160M2-6/8.52
YZR160L2-6/112
Electric hoist
Model
CD1/MD1
CD1/MD1
CD1/MD1
CD1
HC
Lifting height
m
6,9,12,18,24,30
Working duty
A3
Power supply
380V 60HZ 3phase AC (According to your demand

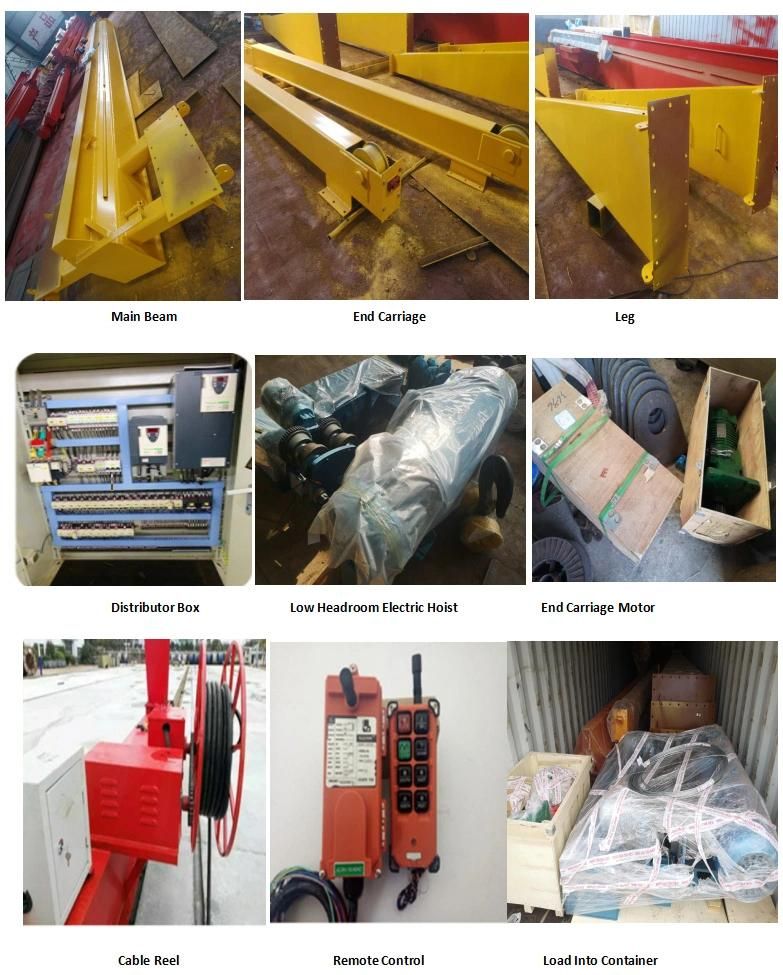

Detailes of single gantry crane
Safe Devices:
To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we
provide are not only the electric protective devices or alarm bell but also other
equipments as following:
1.Overload Limit Switch
2. Rubber Buffers
3.Electric Protective Devices
4.Emergency Stop System
5.Voltage Lower Protection Function
6. Current Overload Protection System
7. Rail Anchoring
8.Lifting Height Limit Device
Packing and shipping:
1.Electric parts and electric hoist packed by high quality plywood crate,
2.Other parts packed by Woven bag.
3.Shipped by Conatiners or Bulk Ship
Factory workshop:
Shandong Mingdao Heavy Industry Machinery Co., Ltd.Is located in Taian City,Shandong Province, China. We are mainly engaged in the design, manufacture,installation and maintenance of single girder cranes(LD Models), Double Girder Cranes (LH,QD etc),gantry cranes(MH,MDG..),Jib cranes(BZ,QZ,MZ etc), variable frequency cranes, Explosion-proof series cranes(LB,QB etc), Cranes with grab bucket,Low headroom monorail Hoist, Electric Winches, scrapers and CD1 MD1 HC Electric Hoist, Hand Chain Hoist etc...
In the past 10 years, we are aiming at China domestic market and become a leading manufacturer in China. Also,we have exported our products to many countries such as Vietnam, Philippines, Sri Lanka, Bangladesh, France, Dubai, Kazakhstan, Russia, Tanzania,Peru , New Zealand ,etc countries. We welcome you will cooperation with us in near future.
Certificates:
FAQ about Mingdao cranes:1.Can the cranes be customized?
Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements.
Please give us the information as clear as you can, so we can give our best design to suit for your demands.
2.How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind
of operation way you need.
3.I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.
4.Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...
For Inquiry:
In order to offer the most suitable design solution for you, it will be great helpful if you can offer the following information to us:
1. Lifting capacity.
2. Span length.(rail center to rail center)
3. Lifting height.(hook center to ground)
4. Have you installed the rails? Do you need us to supply the rails? How long is it?
5. Power supply: Voltage.
6. Working condition: what kind of material to lift? temperature?
7. It would be much better if it is possible for you to offer the drawing photo of your workshop.
