• Model NO.：F24-10D
• Main Girder Form：Single Girder
• Type：Ordinary
• Product Name：Wireless Remote Controller
• Max Control Distance：100m
• Color：Industrial Red
• Overseas Installation：Available
• Power Supply：380V 3pH 50Hz
• Work Duty：A3-A5
• Application：Warehouse Workshop Hoist,Crane etc
• Production Time：10-15 Days
• Transport Package：Container or Bulk Ship
• Specification：Customized type
• Trademark：telecrane
• Origin：China
• HS Code：8426112000
• Production Capacity：10000sets, Year

Transmitter Parameters : F24-10D-TX

Material

Glass-Fiber PA

Protection level

IP65

Frequency range optional

VHF:310-331 MHz; UHF:425-446 MHz(optional)

Transmitter power

<=10dBm

Transmitter power supply

Two AA batteries

Safety code

32 bits (4.3 billion)

Temperature range

-40ºC~+85ºC

Controlling distance

Approx100m(200 meters is customized)

Certification

CE  FCC

Receiver Parameters : F24-RXC

Material

Glass-Fiber PA

Protection level

IP65

Frequency range optional

VHF:310-331 MHz; UHF:425-446 MHz

Receiver sensitivity

-110dBm

Receiver power supply optional

AC/DC 12V ; 18-65V ; 65-440V

Output contactor capacity

8A sealed relay output

Controlling distance

Approx100m(200 meters is customized)

Safety code

32 bits (4.3 billion)

Temperature range

-40ºC~+85ºC

Certification

CE  FCC

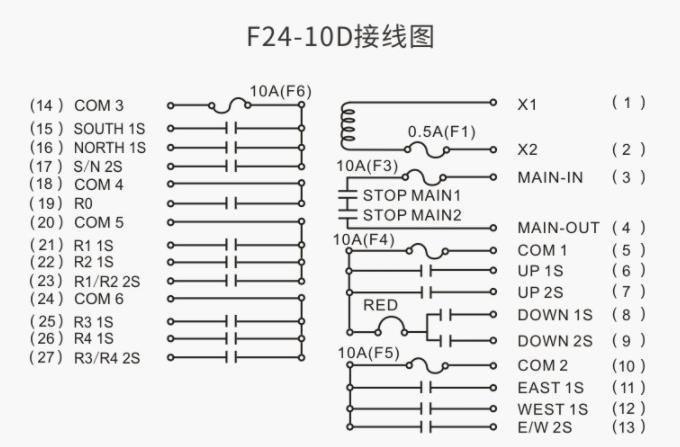

Connection diagram:



Shandong Mingdao Heavy Industry Machinery Co., Ltd. is mainly engaged in the design, manufacture,installation and maintenance of single girder overhead cranes(LD Models), Double Girder Overhead Cranes (LH,QD etc),gantry cranes(MH,MDG..),Jib cranes(BZ,QZ,MZ etc), frequency inverter cranes, Explosion-proof series cranes(LB,QB etc), Cranes with grab bucket, Low headroom Hoist, Electric Winches, Construction Cranes, Clean Room Cranes and CD1 MD1 HC Electric Hoist, Hand Chain Hoist ETC...

We are a member of China Lifting Industry Association, safety-recognized enterprise, national crane machinery designated production organizations, we have obtained mechanical engineering "design certificate", and the national issued crane "manufacturing permit",installation and maintenance, renovation and maintenance of the "License" and so on.

In the past 10 years, we are aiming at China domestic market and become a leading manufacturer in China. Also, with the help of China trading companies we have exported our products to many countries such as Vietnam, Philippines, Sri Lanka, Bangladesh, France, Dubai, Kazakhstan, Russia, Tanzania ,Peru , Newzealand,etc countries . We got 99% good feedback from the overseas customers.

Now we are not only aiming at China domestic market growth ,but also to expand the international market with our quality and price advantages. Send us an inquiry now.

The company has six functional departments, including R&D department, sales department, materials supply department, production department, QC department,after-sales department. There are 16 workshops including electrical, riveting, forging, assembly, heat treatment, machining and maintenance.

Our company produces various lifting equipment and loading and unloading. The equipment is 30,000 tons and the sales income is 360 million yuan. 18 offices and 76 sales and service agencies in power plants, industrial and mining enterprises, and port terminals.

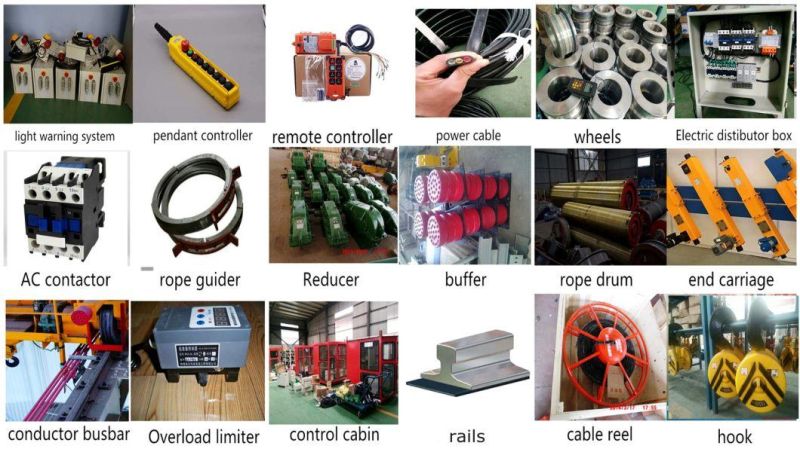

We offer all kinds of mechanial parts and electric parts for overhead cranes, jib cranes, gantry cranes etc, welcome to contact us for a quotation of the crane parts, customized parts accpeted for your special requirements.
