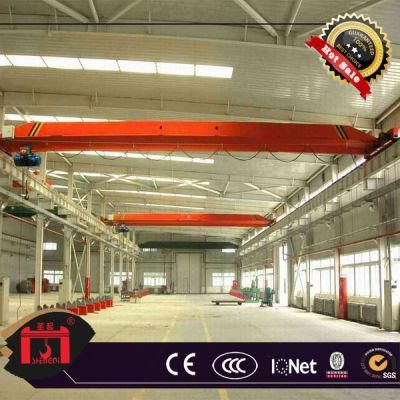

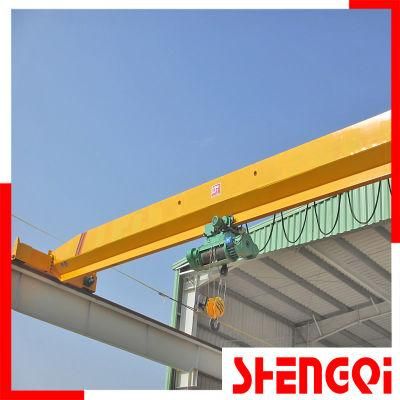

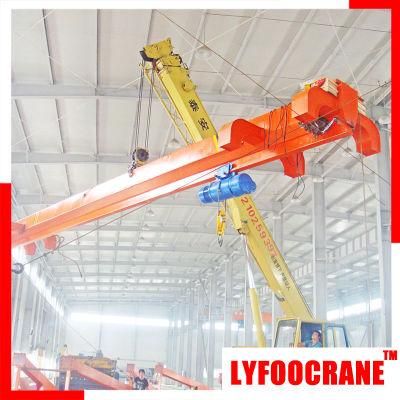

Ld Type Single Girder Bridge Crane with Electric Hoist
Lyfoo Industry Co., Ltd.- Certification：CE, ISO9001
- Condition：New
- Operation Form：Cabin
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：20-50t
- Main Girder Form：Single Girder
Base Info
- Model NO.：LD
- Type：Beam
- Crane Type：Overhead
- Quality：Reliability & Durability
- Types of Electric Hoist：CD, MD
- Crane Traveling Speed：20,30 M,Min
- Crane Motor：Zd52-4,18.5kw and Zd41-4,7.5kw
- Lifting Speed(M/Min)：8, 0.8,8; 7, 0.7,7
- Power Supply：380V,50Hz,3p, Can Be Customized
- Affiliate Documents：English Operation Manual, Wiring Diagram
- Electrical System Brand：Siemens,Schneider,Chint
- Stepless Speed Control：Available (Variable Frequency Control)
- Transport Package：Wooden Box, Plywood
- Trademark：LYFOO
- Origin：Xinxiang, Henan, China
- HS Code：84261120
- Production Capacity：15000 Per Year
Description
Crane traveling mechanism Performance parameters 1-5t 10t Traveling Speed (m/min) 20 20 Reduction Ratio (i) 38 38 Motor type YES power 2×0.4 2×0.8 Rotational speed 1200 Working System A5 Power supply 3phrase 380V 50Hz Wheel diameter Ф200 Width of Track 37-70mm
Safety feature:
1. Limit switch.
2. Overload stop device for hoisting.
3. Long bearing buffer for crane traveling.
4. Power faliure backup.
Notice: As this kind of crane is customized, in order to offer you most suitable design and solution, please confirm following information when you send inquiry.
1. Lifting capacity.
2. Span length. (rail center to rail center)
3. Lifting height. (hook center to ground)
4. Do you need bus bar, rail from us?
5. Local power supply 380V 50Hz 3P?
6. Working condition: What goods to lift?
7. Drawings of working place would be appreciated.
Here I list our major products for your reference, please check:
1. LH/QD model double girder overhead crane.

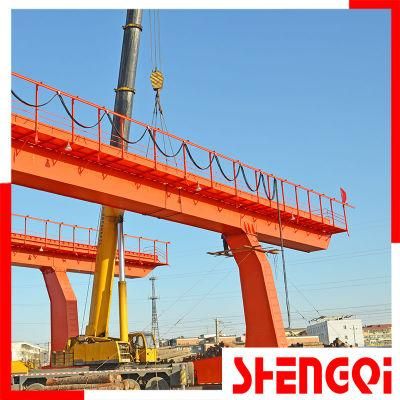

2. MH model single girder gantry crane.
3. MG model double girder gantry crane.
4. BMH semi gantry crane.
5. BZ model pillar mounted jib crane.
6. CD/MD electric hoist.
7. Crane spare part: Wheels/Motors/Hook block/Control panel/Coiling block.
