• Model NO.：XCA350
• Hydraulic Valve Brand：Famous Brand
• Hydraulic Pump Brand：Famous Brand
• Marketing Type：Hot Product 2019
• Video Outgoing-Inspection：Provided
• Hydraulic Cylinder Brand：Famous Brand
• Rated Loading Capacity：350t
• Rated Lifting Moment：11500 Kn.M
• Unique Selling Point：High Performance, Energy Saving
• Max. Grade Ability：57%
• Max. Lifting Height：125m
• Engine Brand：Benz
• Transport Package：Comply with Export Packaging Requirements
• Trademark：XCMG
• Origin：Jiangsu, China
• Production Capacity：1000 Unit,Units Per Year

Basic Info.

Model NO. XCA350 Hydraulic Valve Brand Famous Brand Hydraulic Pump Brand Famous Brand Marketing Type Hot Product 2019 Video Outgoing-Inspection Provided Hydraulic Cylinder Brand Famous Brand Rated Loading Capacity 350t Rated Lifting Moment 11500 Kn.M Unique Selling Point High Performance, Energy Saving Max. Grade Ability 57% Max. Lifting Height 125m Engine Brand Benz Transport Package Comply with Export Packaging Requirements Trademark XCMG Origin Jiangsu, China Production Capacity 1000 Unit/Units Per Year

Product Description

Product Description

XCMG XCA350 All Terrain truck Crane 350 ton crane.

1,The lifting capacity takes the lead in the industry with strong power, the 6-axle all terrain crane with high intelligent level.

2,Dynamically choosing different braking modes, which contributes to precise control on power performance and avoids invalid braking control or insufficient braking force, and can shorten emergency braking distance, effectively avoid traffic accident, reduce the abrasion of braking system and increase the service life.

3,With optimized steering system arrangement of center position matching special heavy-load, the mechanism damage can be avoided caused by axles suspending in the air under severe road conditions.4,With first launched multi-mode drive technology in the industry, real-time intelligent control for various working conditions is realized so that the crane has optimized travel state and crane safety and reliability are improved.

5,Axle load monitoring technology: Proper gear (the highest gear engaged) and axle driving mode are matched automatically by axle load monitoring technology, which provides protection for crane safety in traveling.

Specification

Project	Unit	Parameter
Overall Length	(mm)	17654
Overall Width	(mm)	3000
Overall Height	(mm)	4000
Wheel Base	(mm)	1650+3100+1650+2440+1650
Wheel Tread	(mm)	2590
Travelling Weight	(kg)	72000
Axle Load	(kg)	12000*6
Engine Model(Upper)		OM906LA.E3A/1
Rated Power	(kw/(r/min))	205/2200
Rated Torque	(N.m/(r/min))	1100/1200-1600
Engine Model(Chassis)		OM502LA.E3B/2
Rated Power	(kw/(r/min))	442/1800
Rated Torque	(N.m/(r/min))	2800/1300
Max.Travelling Speed	(km/h)	80
Min.Stable Travelling Speed	(km/h)	2
Min Diameter of Turning Circle	(m)	23
Min Diameter of Turning Circle of Boom Head	(m)	-
Max Gradeability	(%)	57
Minimum Ground Clearance	(mm)	280
Approach Angle	(°)	16
Departure Angle	(°)	15
Braking Length	(m)	≤10
Fuel Consumption Per Hundred Kilometers	(L)	89.2
Max.Rated Lifting Capacity	(t)	350
Min.Rated Range	(m)	3
Max. Lifting Moment of Basic Boom	(kN·m)	11500

Producr Show   You May Like

100 ton QY100K-I mobile crane truck .

The torque limiter adopts colorful LCD display, realizing the intelligence of the failure diagnosis. The precision is ahead of the industry.

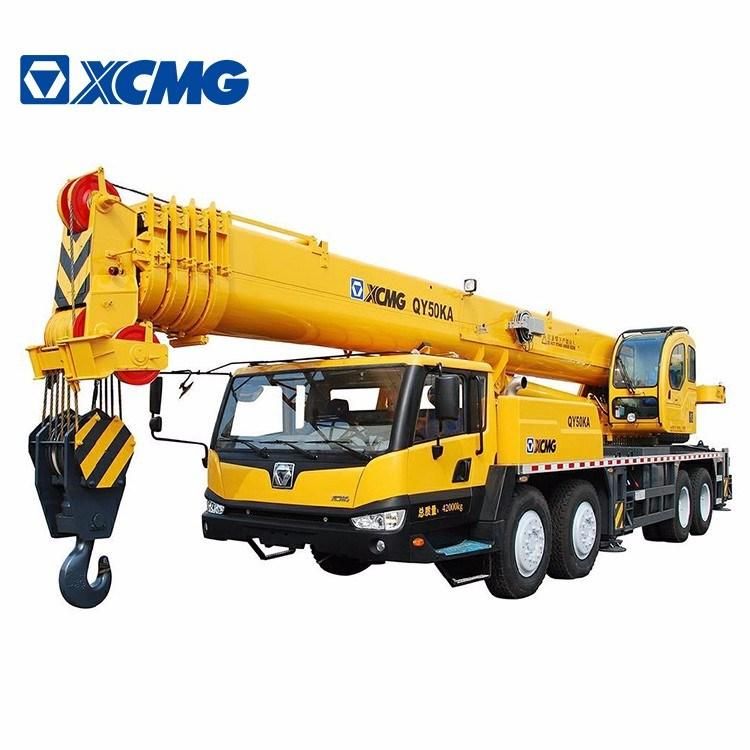

50 ton QY50KA mobile crane truck .

Leading lifting performance and traveling performance.Improved reliability of radiation and electric systems, safer lifting and driving operation.

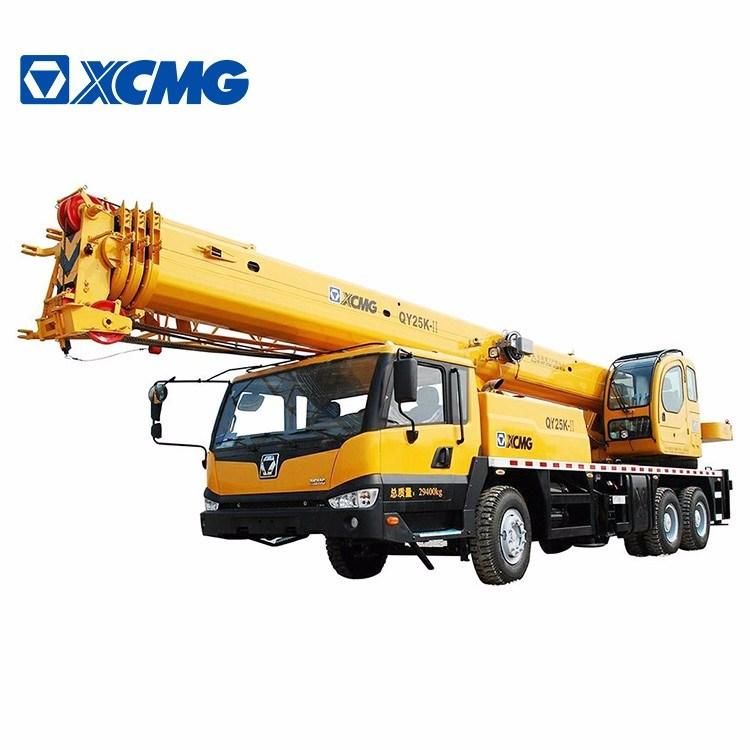

25 ton QY25K-II mobile crane truck .

We are constantly devoting ourselves to the development of the new cranes by applying the latest techniques. The jib is optimized octagon section, which has excellent lifting capacity.

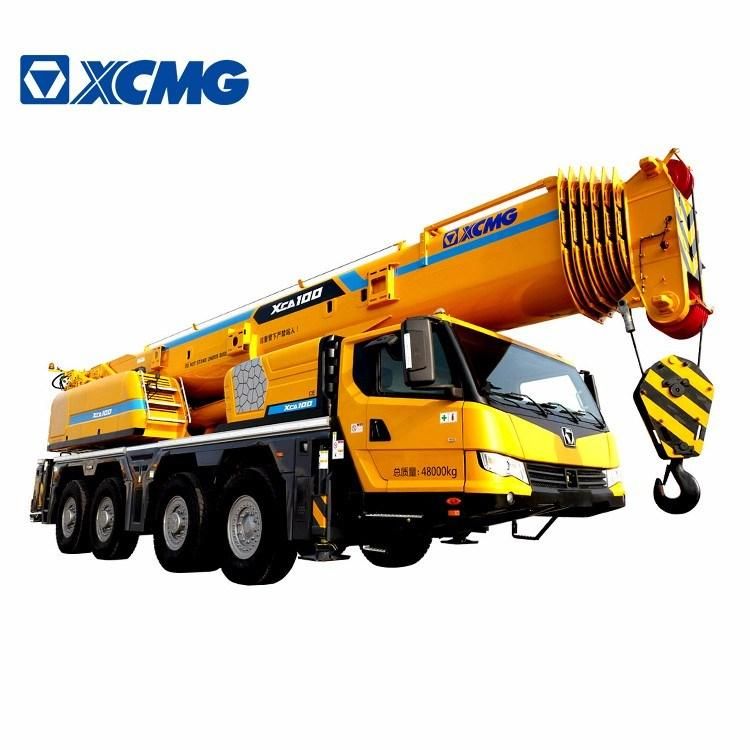

100 ton XCA100 All Terrain mobile truck crane .

The lifting capacity takes the lead in the industry with strong power, the 4-axle extreme 100-ton all terrain crane with high intelligent level.

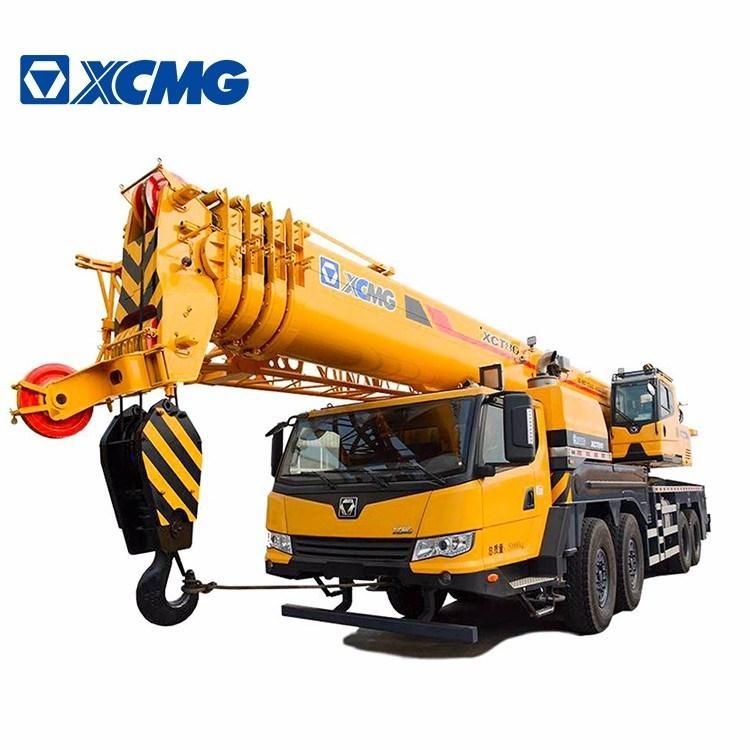

80 ton XCT80 mobile truck crane.

Powerful lifting performance and excellent travelling performance. Brand new motive power platform provides powerful motive force and fuel economy.



70 ton QY70K-I truck cranes xcmg crane.

Double cylinder plus ropes for boom telescoping. Thick cable and bearing are imported parts and have reliable performance.



         >>>>> More Choices

Top Selling



50ton qy50ka hydraulic telescopic boom truck crane.

Leading lifting performance and traveling performance.mature and reliable double pump confluence technology, highest hoisting, elevating and telescoping efficiency in the industry.

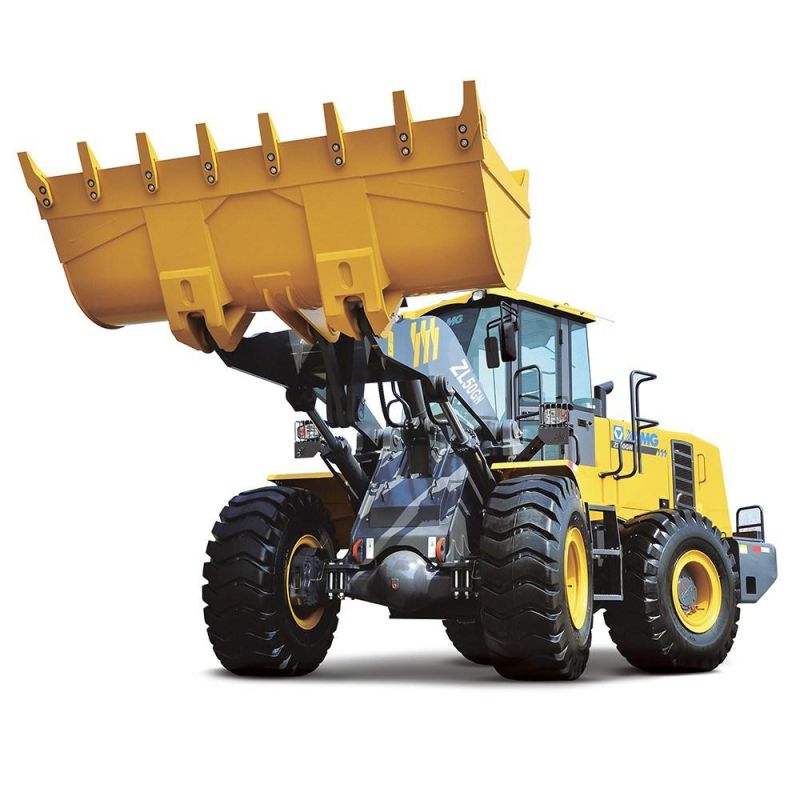

5 ton front end loader ZL50GN  wheel loader.

High torque and high efficiency drive chain features reasonable matching.the 160kN traction force and ≥3.5m high dumping capacity handle the severe conditions with ease.



20 ton hydraulic crawler excavator XE215C .

The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.the highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.



430HP 6x4 tractor truck NXG4250D3WC .

Saving oil, high efficiency (suitable for various working conditions, more efficient under super power), and environmental protection (low fuel consumption, carbon emission reduction, meeting euro V and VI emission standards.



3 ton LW300FN wheel loader  price .

XE700C boasts high-end configurations, high efficiency, low fuel consumption, low noise and high reliability, able to serve mine construction as ideal operation equipment.

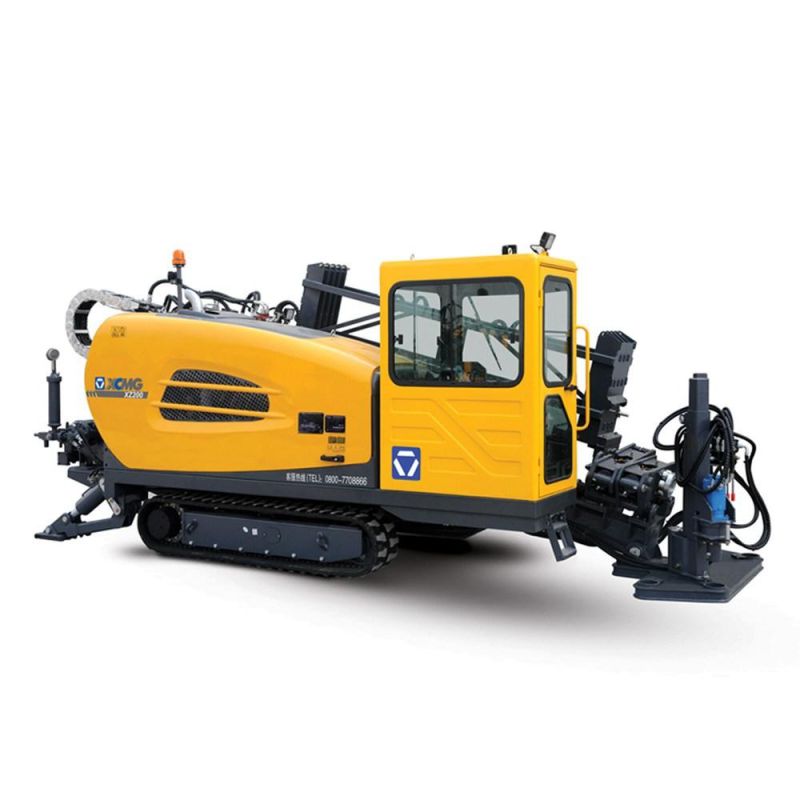

xz200 Horizontal Directional Drill (HDD).
