• Model NO.：ZTC201V551
• Type：Straight Arm
• Transport Package：Nude
• Specification：20t
• Trademark：Zoomlion
• Origin：Hunan, China
• HS Code：87051091
• Production Capacity：100units,Month

Basic Info.

Model NO. ZTC201V551 Type Straight Arm Transport Package Nude Specification 20t Trademark Zoomlion Origin Hunan, China HS Code 87051091 Production Capacity 100units/Month

Product Description

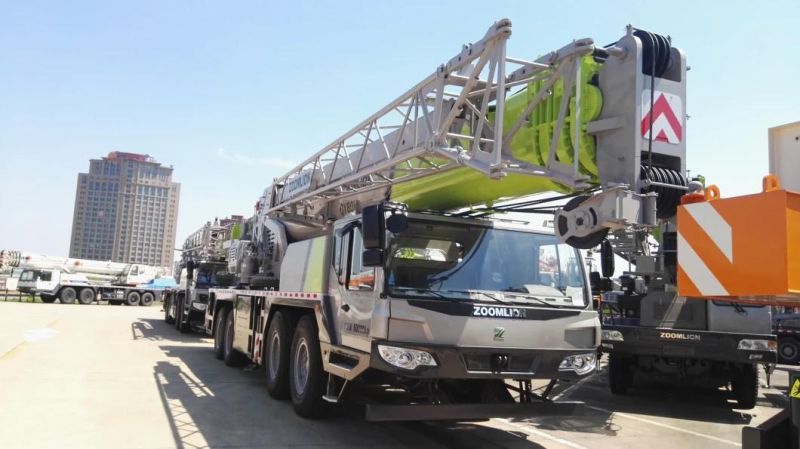

Zoomlion 20 Ton Small Truck Crane ZTC201V551 for Sale



Feasures
1, 5 sections of the longest 40-meter U-shaped main arm, the maximum lifting torque of the basic arm is 960kN·m, the maximum lifting torque of the full-extension arm is 598kN·m, and the maximum lifting weight of the full-extension arm is 6t.
2, Sanqiao heavy-duty truck crane chassis platform, strong load bearing, good passability, mobility, driving reliability. The chassis meets the requirements of Class G vehicles without front and rear guards.
3. Fully upgraded handling performance, rotary load sensitive system, lifting adopts high-voltage automatic variable motor, perfect balance of working speed, smoothness and micro-motion.
4, low operating costs, the use of gear pumps and variable motors, operating fuel consumption reduced by more than 10%. The Weichai WP7 engine and the Fast 8 gearbox are used to optimize the powertrain matching and reduce fuel consumption by 10%.
5, green and environmentally-friendly brand new painting, new two-room design, humanized detail design, with panoramic wide-body control room, convenient and safe operation experience.

Parameters
Maximum rated total lifting capacity (kg) 20000
Basic arm maximum lifting moment (kN.m ) 960
Longest main boom maximum lifting moment (kN.m ) 598
Basic arm maximum lifting height (m ) 10.9
Main arm maximum lifting height (m ) 40.2
The maximum lifting height of the jib (m) 47.8
Single rope maximum speed (main winch) (m/min) 135
Single rope maximum speed (sub-winding) (m/min) 135
Boom boom time ( s ) 25
Boom extension time ( s ) 82
Rotation speed ( r / min ) 0 ~ 3
Maximum use altitude (m) 2000
Maximum travel speed (km/h) 85
Maximum grade (%) 42
Minimum turning diameter (m ) ≤20
Minimum ground clearance (mm) 260
Fuel consumption per 100 km (L) 28
Driving weight (total mass) (kg) 30600
Vehicle kerb mass (kg) 30470
Front axle load (kg) 6500
Rear axle axle load (kg) 24100
Dimensions (length × width × height) ( mm ) 12600 × 2500 × 3450
Leg longitudinal distance ( m ) 5.40
The lateral distance of the legs (m) is 6.2, half extension 4.25
Tail radius of gyration (mm) 3265
Main arm length (m ) 10.2~40.0
Main arm elevation angle ( ° ) -2~80
Secondary arm length (m) 8
Auxiliary arm mounting angle ( ° ) 0, 15, 30
