• Lift：23m
• Application：Construction Usage
• Sling Type：Wire Rope
• Power Source：Electric
• Moving Type：Wheel
• Installation：Overall Rapid Disassembly
• Transport Package：Wooden Package
• Specification：MG
• Trademark：YFOOCRANE
• Origin：Beijing, China
• HS Code：84261930
• Production Capacity：4000

Basic Info.

Lift 23m Application Construction Usage Sling Type Wire Rope Power Source Electric Moving Type Wheel Installation Overall Rapid Disassembly Transport Package Wooden Package Specification MG Trademark YFOOCRANE Origin Beijing, China HS Code 84261930 Production Capacity 4000

Product Description

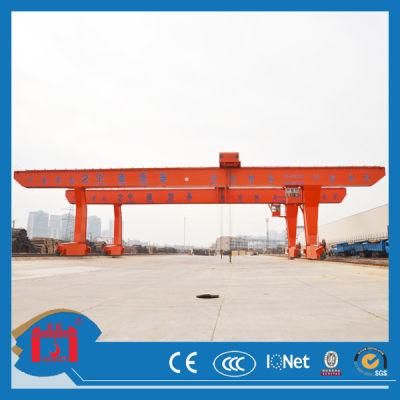

Double(Single) Girder Gantry Crane (MGA) For outside working yard, the gantry crane is the best choice. The MG doubel girder gantry crane is a heavy dutry gantry crane. It is mainly for heavy duty working designing, such as 24 hours logisitc yard, steel factory, fabrication yard, mining, port, railway station etc. The gantry crane can be equipped with hook, grab or magnet, or combination of the 3 devices. Hoist: The hoist is made by heavy steel frame, where hoist motor, hydraulic brake and heavy gearbox. The working duty could be designed to M5, M6 or M7. Safety device: - Overload protection - Zero-phase protection - Emergy stop protection - LT, CT limit switch - Buffer - Rail grab Features Designed for indoor or outdoor use,heavy duty works. Equipped with high quality gearbox;SEW/ABB can be as optional according clients special requirement. Safety limit switches for stoppers will be provided to prevent over traveling in all motions Main elcetrical devices are Siemens or Schneider brand Power supply of Crane through Cable drum/Energetic Chain Controlled via push button pendant/Radio remote/Cabin, separately or any combination. Tailored based on client's detailed requirement.

Capacity	Up to 300t
Span	Up to 120m
Lift height	Up to 30m
Lifting Speed	2.5m/min ~ 8m/min
Cross Travel Speed	16m/min ~ 35m/min
Long Travel Speed	80m/min
Work Duty	A5, A6
Controlled by	Cabinet
Power Supply	380v/400v/415v/460v
