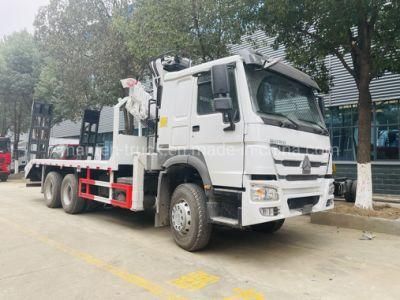

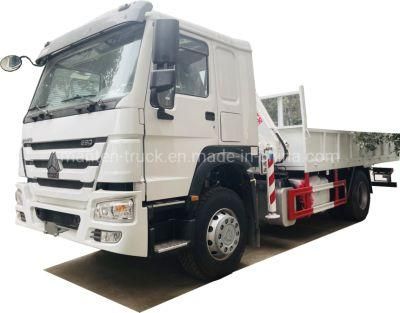

2017 New 5 Ton HOWO Truck Mounted Crane

Jinan Sinoheng Import and Export Co., Ltd.
  • Certification：ISO9001
  • Condition：New
  • Maximum Lifting Height：10-15m
  • Maximum Lifting Weight：5-7t
  • Shaft Number：2
  • Crane Jib：Three-Arm

Base Info

  • Model NO.：ZZ1167G5215C1R
  • Type：Straight Arm
  • Engine：Yc4e160-33, 160HP
  • Transmission：DC6j65tc
  • Wheel Base：5200mm
  • Transport Package：Nude
  • Specification：ISO9001
  • Trademark：howo
  • Origin：China Shandong
  • HS Code：87051091
  • Production Capacity：5000 Pieces,Year

Description

Model:ZZ1167G5215C1RCHASSIS SPECSCurb weight7970kgsTotal weight15795kgsDrive styleLHD,RHDEngine:Yuchai engine:YC4E160-33, 160HP, with EURO3 engine emissionTransmission:DC6J65TC(6 forward 1 reverse)Cabin:Howo light truck large-width cabin, two seats can hold 3 people, one sleeperWheel base:5200mmTire:9.00R20(6) radial tyreBrake:Engine exhaust brake and spring brakingFront axle:3.6TRear axle:10.5TWith power steeringWith air conditionWith wind scooperFront/Rear overhang1240/2255mmFront/Rear tread1801,1796mmCRANE SPECSCrane modelXCMG SQ5SK3QMax Lifting Capacity5000kgsMax Lifting Moment12.5 T•MMax Oil Flow of Hydraulic System32L/minMax Pressure of Hydraulic System18MPaMaximum reach of crane11000mmMaximum lifting height12500mmInstallation Space900mmRotation angle:Hydraulic 360°all rotaryCARRIAGE BODY SPECSOver length of the truck:8995*2498*3300mmBox dimenssions:6500*2400*550mm, 9CBMThickness of bottom plate3mmThickness of side1.5mmWith 5 doors
