• Model NO.：XCT25_M
• Rated Lifting Moment：938kn.M
• Transport Package：Comply with Export Packaging Requirements
• Specification：12650*2500*3380mm
• Trademark：XCMG
• Origin：Jiangsu, China
• HS Code：84295100
• Production Capacity：10000 Unit,Units Per Year

CategoryItemUnitParameterMain performanceMax. total rated lifing capacityt25Min. rated working radiusm3Turning radius at turntable tailCounterweightmm3425Max. load momentBase boomkN.m938Fully extended boomkN.m623Fully extended boom + JibkN.m370Outrigger spanLongitudinalm5.23Lateralm6.4Hoist heightBase boomm10.9Fully extended boomm34.5Fully cxtended boom + Jibm43.2Base boomBoom lengthm10.6Fully extended boomm34Fully extended boom + Jibm42.3Jib offset angle.0, 15, 30DimensionsDimensions (length x width x height)mm12535*2550*3420Wheel basemm4425+1350Track ( Front/ Rear )mm2027/1834Front/ Rear overhangmm2442/2420Front Rear extensionmm1528/370WeightTotal vehicle mass in travel configurationkg27500PowerEngine model SC7H260Q3Rated power/rpmkW/(r/min)192/2200Max. net power/rpmkW/(r/min)188/2200Max. output torque/rpmN.m/(t/min)1000/1400

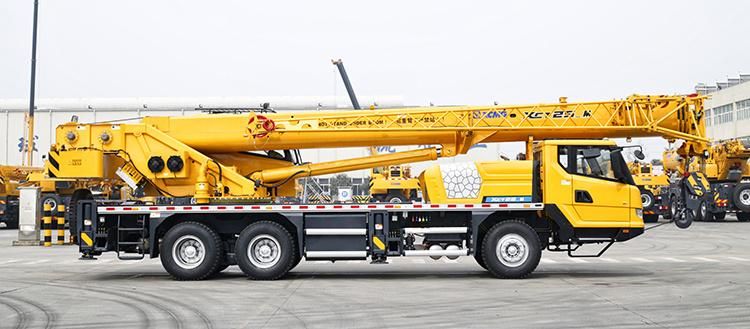

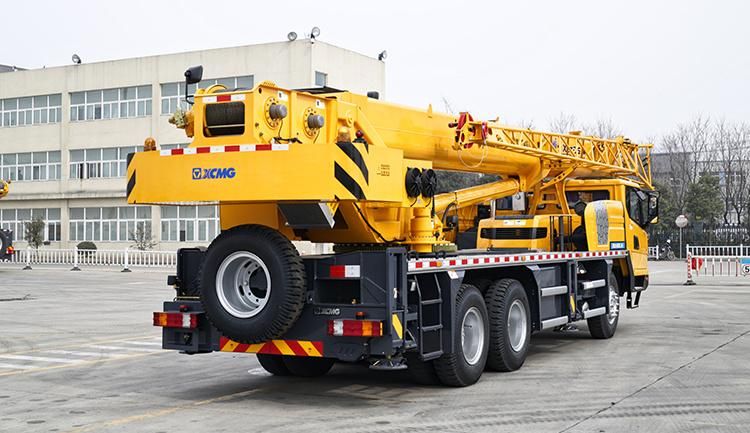

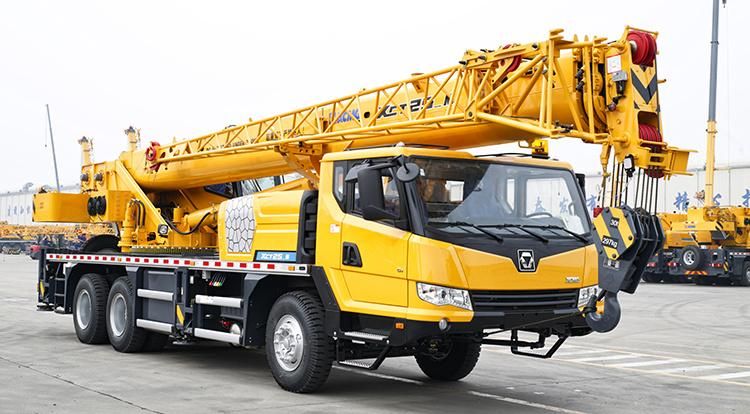

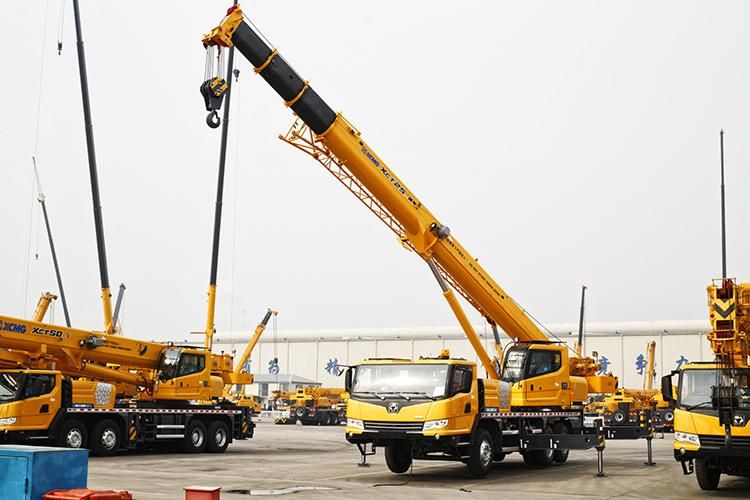

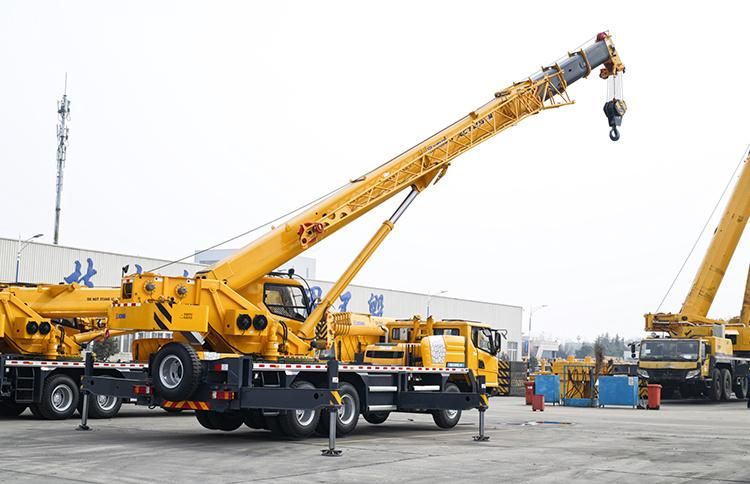

[Product Picture]





[Company Information]

[FAQ]
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
