Hydraulic Grab Excavator Mobile Material Handler with Orange Peel Grab

Sinoway Industrial (Shanghai) Co., Ltd.
  • Certification:ISO9001, ISO14001
  • Condition:New
  • Operation Form:Cabin
  • Maximum Lifting Height:15-20m
  • Maximum Lifting Weight:<20t
  • Working Radius:10.2 M

Base Info

  • Model NO.:swmh160
  • Max. Lifting Height:11.3 M
  • Max. Hoisting Moment:300kn.M
  • Warranty:One Year
  • Operating Weight:16 Ton
  • Transport Package:Nude
  • Specification:ISO
  • Trademark:Sinoway
  • Origin:China
  • HS Code:84314900
  • Production Capacity:100 PCS , Year

Description

Basic Info.

Model NO. swmh160 Max. Lifting Height 11.3 M Max. Hoisting Moment 300kn.M Warranty One Year Operating Weight 16 Ton Transport Package Nude Specification ISO Trademark Sinoway Origin China HS Code 84314900 Production Capacity 100 PCS / Year

Product Description

The main Feature of SWMH160K Material Handlers

1-Dual engine ( Electric motor + Diesel engine) more environmental protection;
2-Electric operation has over-current and heat leakage protection device;
3-Utomatic identification of phase sequence to prevent reverse rotation of oil pump;
4-Hydraulic system power-off, oil self-locking protection device;
5-Multiple compound movements during operation to improve efficiency;
6-The hydraulic system is equipped with air-cooled radiator;
7-The gripper can rotate and change direction automatically 360 degrees;
8-When electric operation is carried out in the upper control room, there is a dual-purpose air conditioner for heating and cooling;
9- Hydraulic Cabin elevatied.


Product Show

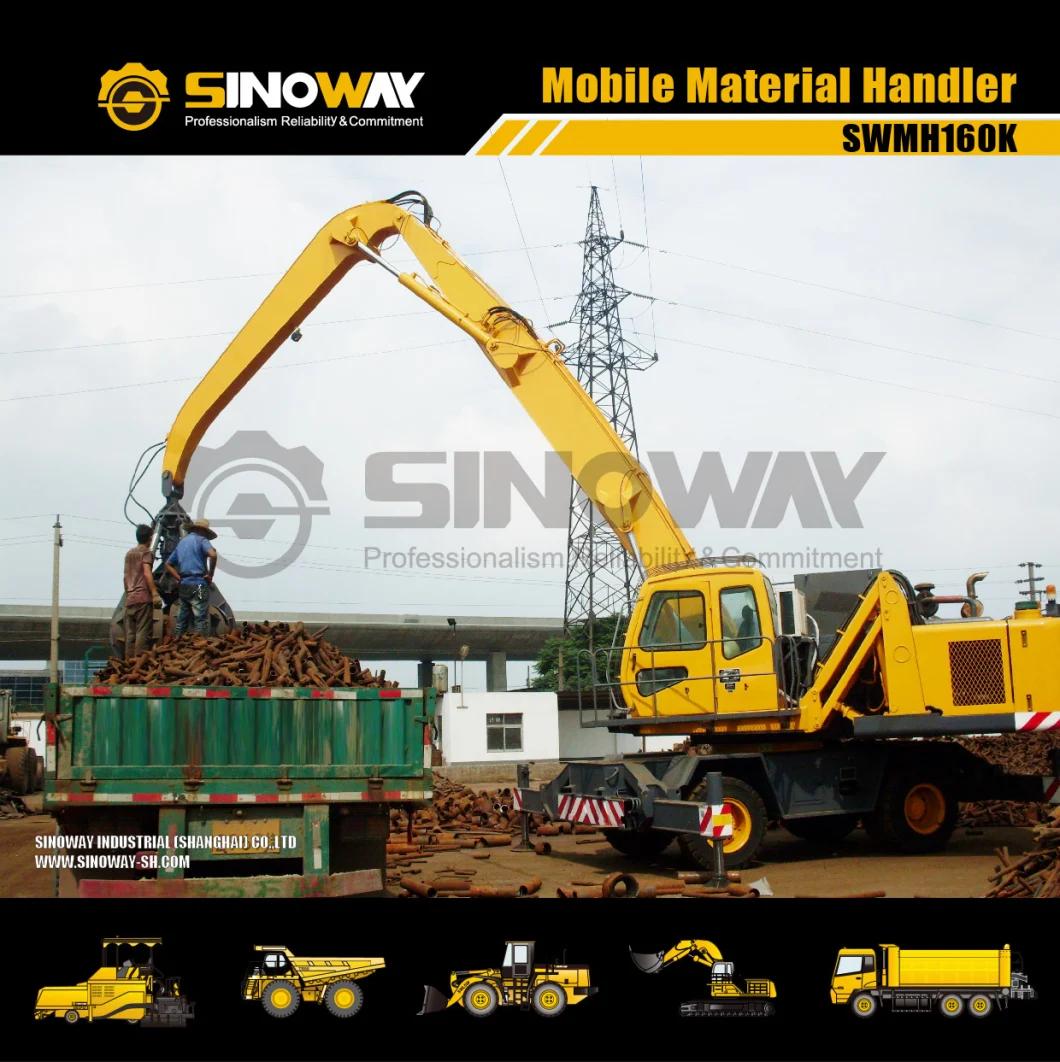

Hydraulic Grab Excavator Mobile Material Handler with Orange Peel Grab

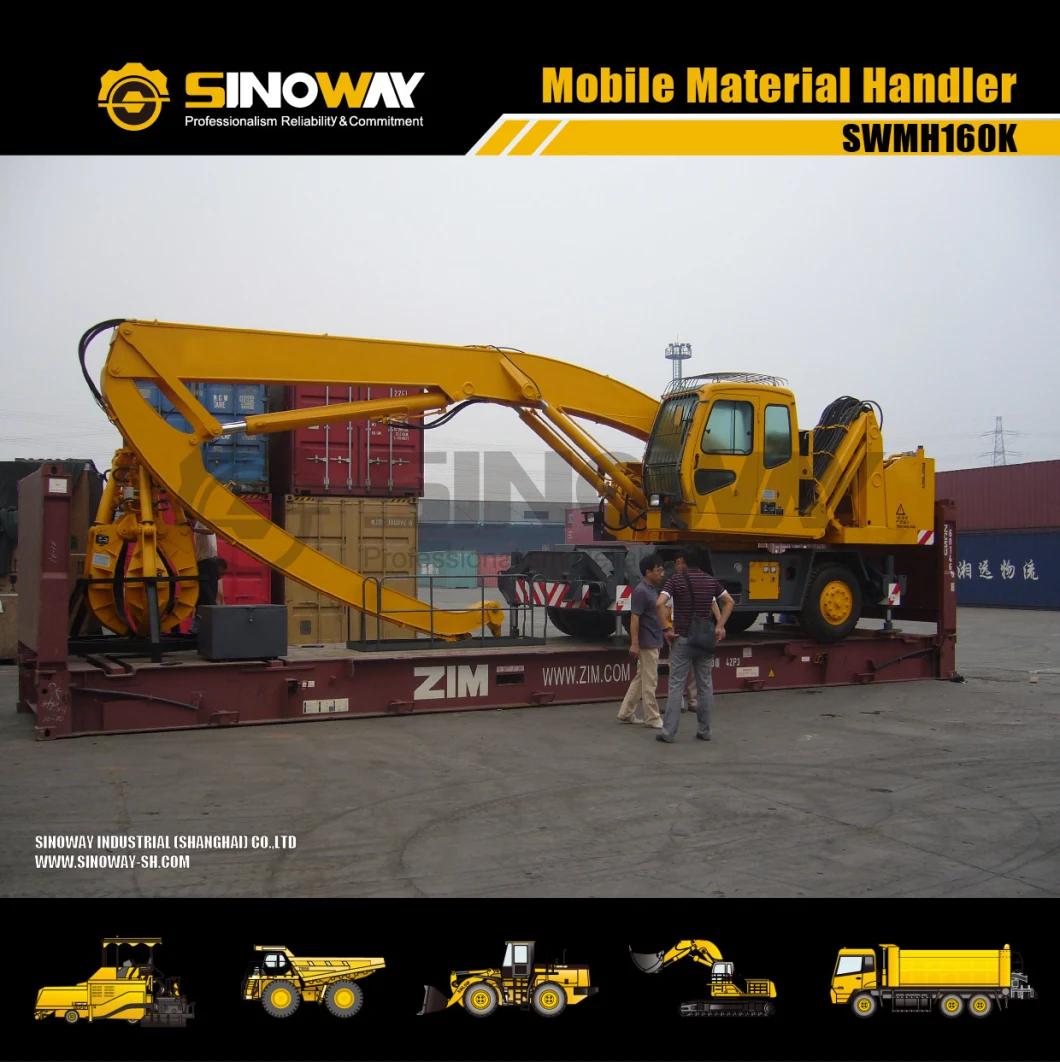

Hydraulic Grab Excavator Mobile Material Handler with Orange Peel Grab

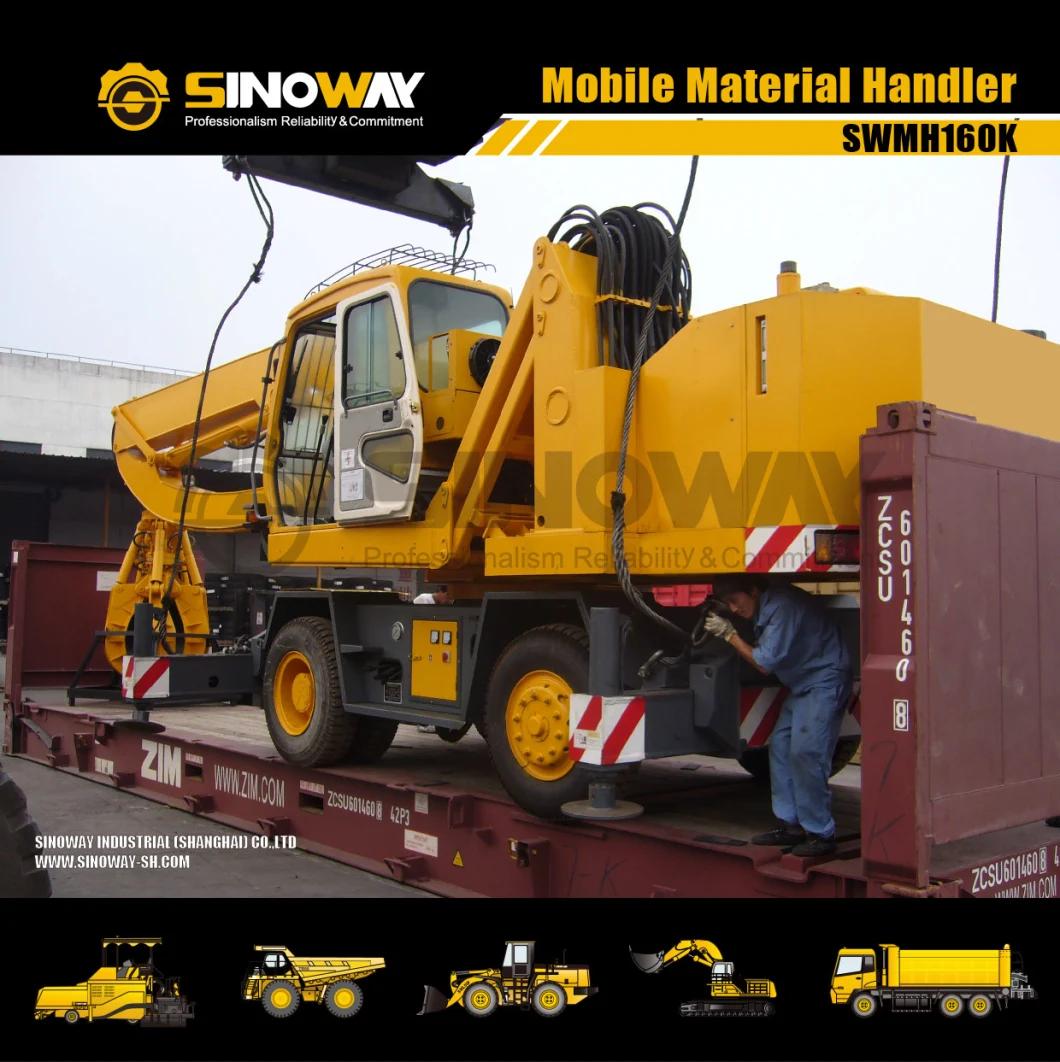

Hydraulic Grab Excavator Mobile Material Handler with Orange Peel Grab

Specifications
Materia Handler SWMH160K

Engine Power
Electrical motor75KW
Max. swing speed5.5r/min
Diesel engine105KW
Max. swing speed6r/min

Main Technical Specification
Max. pulling capacity10000kg
Working radius @Max. pulling capacity3000mm
Max. working radius11800mm
Max. lifting capacity @ Max. working radius2500kg
Maximum hoisting moment300kN.m
Max. lifting hight
Basic boom9000mm
Full boom14000mm
Outrigger distance
Lengthways4600mm
Transversal4400mm

Axle
Front axle load7500Kg
Rear axle load15500Kg

Travelling System
Max. travelling speed15km/h
Minimum turning radius13m
Maximum gradability10%
Minimum ground clearance250mm
Approach angle15.0°
Departure angle15.0°
Breaking lengh≤6.5m
Operating weight23000kg

Dimension
Overall length11360mm
Overall width2670mm
Overall height3410mm
Tread
Front wheel2350mm
Rear wheel2060mm
Wheel base2600mm

Grab Parameter
Model1.0m³ clam grab
Total mass1500kg
Total height3123mm
Total width1370mm
Total length (Open)2589mm
Total length (Close)1843mm
Open cycle3~5s
