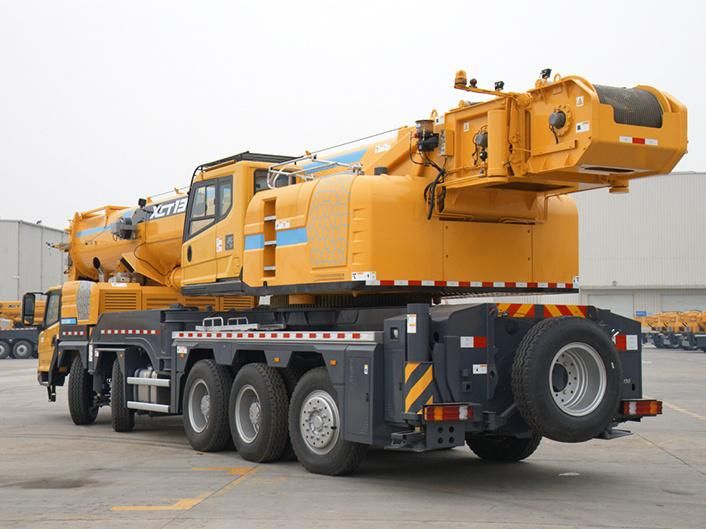

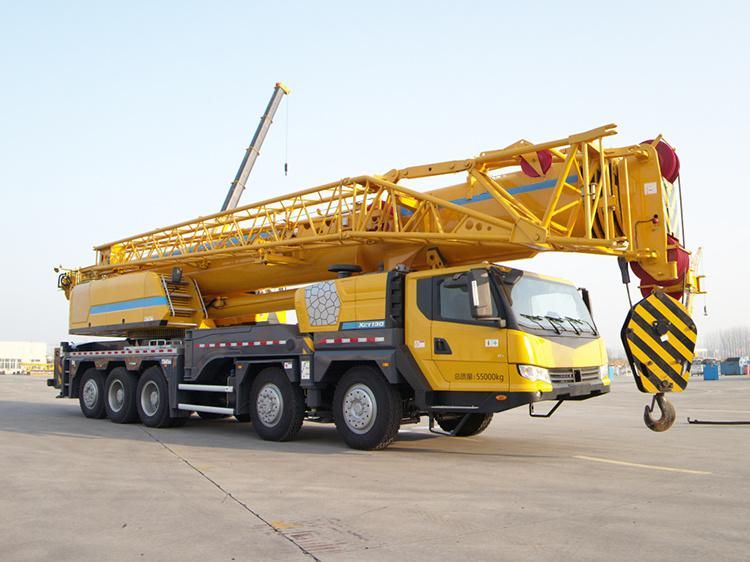

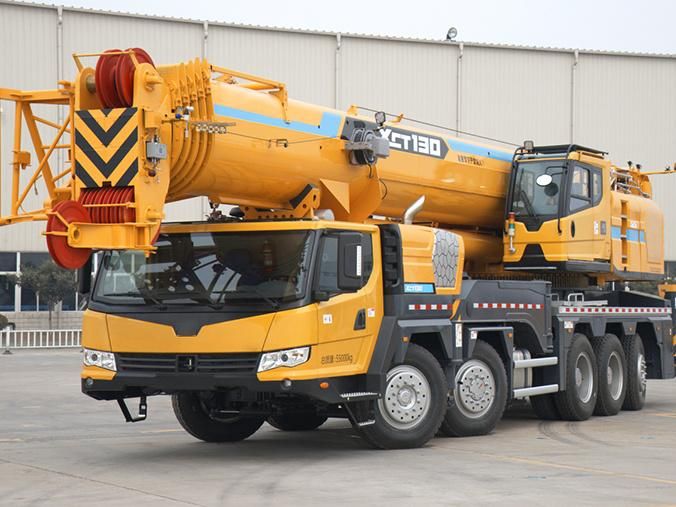

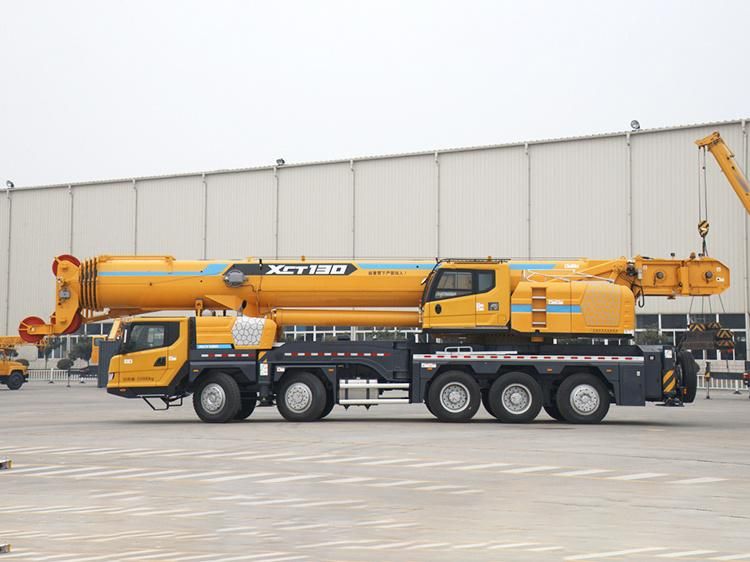

Xct130 130 Ton Hydraulic Mobile Telescopic Boom Truck Crane Machine for Sale
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Online Sevices
- Warranty：One Year
- Certification：GS, RoHS, CE, ISO9001
- Condition：New
- Maximum Lifting Height：>40m
- Maximum Lifting Weight：>16t
Base Info
- Model NO.：XCT130
- Shaft Number：2
- Crane Jib：Four-Arm
- Type：Folding
- Max. Driving Speed：90km,H
- Tail Slewing Radius：3265mm
- Specification：13150*2500*3450 mm
- Trademark：SINOMADA
- Origin：China
Description
Item
Specification
Unit
Overall Length
15195
mm
Overall Width
3000
mm
Overall Height
3970
mm
Wheel Base
2449/2449/2315/2315/2449
mm
Total vehicle mass in travel configuration
54990
kg
Front Axle Load
16200
kg
Rear Axle Load
26000
kg
Engine Model
WP6G240E330
Engine rated power
190/2200
kw/(r/min)
Engine rated torque
1000/1200-1600
N.m/(r/min)
Max. travel speed
85
km/h
Min. travel speed
2.5~3
km/h
Min. turning diameter
23
m
