Gantry Crane Applied Cable Reel Runs Drum Warehouse Semi Gantry Crane

Shandong Mingdao Heavy Industry Machinery Co., Ltd.
  • Certification:RoHS, CE, ISO9001
  • Condition:New
  • Maximum Lifting Weight:50-100t
  • Maximum Lifting Height:25-30m
  • Operation Form:Pendent Control+ Remote Controco , Remote Control
  • Type:Common Gantry Crane

Base Info

  • Main Girder Form:Single Girder
  • Product Name:Half Gantry Crane
  • Power Source:220V,380V,415V or on Request
  • Color:Industrial Yellow,Red or on Request
  • Girder Type:Box Type , Truss Type
  • Insulation:F
  • Moving Type:Rail Mounted
  • Power Supply Type:Cable Reel
  • Application:Widely Applied for Indoor and Outdoor Workplaces
  • Warranty:2 Years
  • Aftersale Service:Engineer Overseas Service Available
  • Electric Parts:Siemens Delixi Chnt
  • Hoist Type:Rope Hoist , Chain Hoist on Request
  • Work Duty:A3-A5
  • Lift Capacity:on Request
  • Motor:Gear Motor
  • Transport Package:Standard Package for Ocean Shipping or Railway
  • Specification:Materials: Q235B,Q345B
  • Trademark:Mingdao
  • Origin:China
  • HS Code:8426193000
  • Production Capacity:1000sets, Year

Description

Basic Info.

Main Girder Form Single Girder Product Name Half Gantry Crane Power Source 220V/380V/415V or on Request Color Industrial Yellow/Red or on Request Girder Type Box Type / Truss Type Insulation F Moving Type Rail Mounted Power Supply Type Cable Reel Application Widely Applied for Indoor and Outdoor Workplaces Warranty 2 Years Aftersale Service Engineer Overseas Service Available Electric Parts Siemens Delixi Chnt Hoist Type Rope Hoist / Chain Hoist on Request Work Duty A3-A5 Lift Capacity on Request Motor Gear Motor Transport Package Standard Package for Ocean Shipping or Railway Specification Materials: Q235B/Q345B Trademark Mingdao Origin China HS Code 8426193000 Production Capacity 1000sets/ Year

Product Description

                  European type Semi Gantry Crane  with Heavy Duty Trolley

Gantry Crane Applied Cable Reel Runs Drum Warehouse Semi Gantry Crane


European type semi-gantry crane is the most commonly used light duty crane, widely applied for indoor and outdoor workplaces,
such as storage yards, warehouse, workshop, freight yards, and dock.

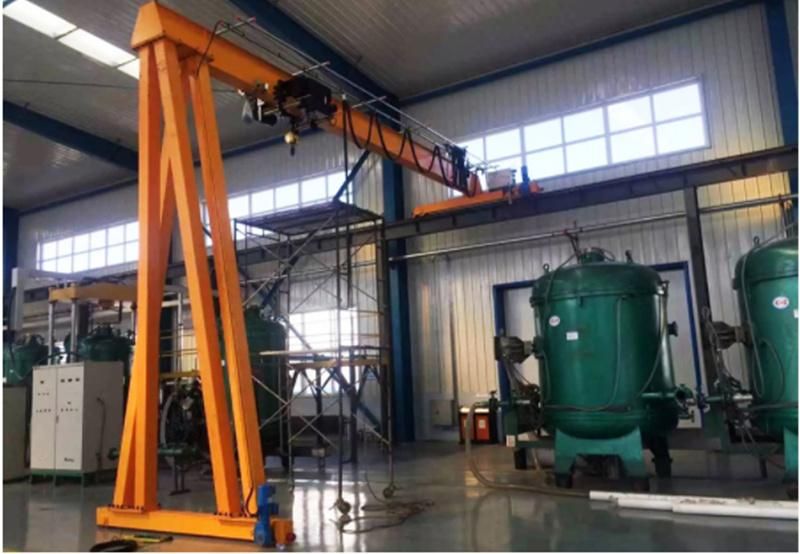

It is a typical A frame gantry crane and the lifting
capacity of this equipment is in a range of 3 ton to 16 ton to handle small and medium sized materials. The metal
structure of this lightweight gantry crane is usually designed with box type. For outdoor working environments with
strong wind, truss gantry crane is more often used to reduce wind resistance.



This light duty European type gantry crane is ideal for lifting and transferring small and lightweight loads from one place to another so as
to boost productivity and realize a high economic growth, which is widely applied in a large variety of fields, such as
construction site, railway, port, workshop, and shipyard. This
type gantry crane comes in various types and each type
is designed for different purposes. According to different girder designs, the light gantry crane can be divided into single
girder and double girder.  Besides, we supply fixed and adjustable gantry cranes to serve your specific uses.

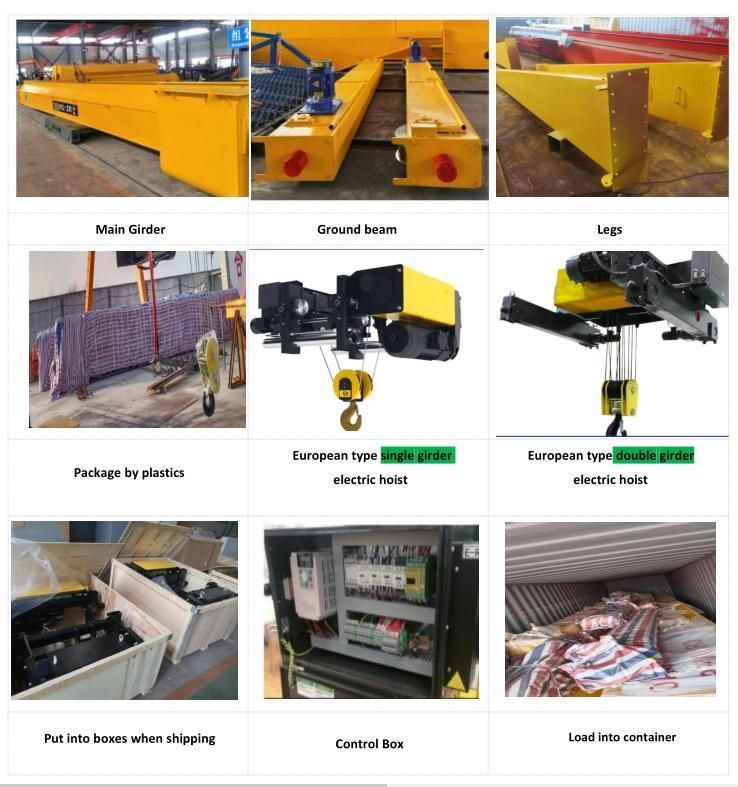

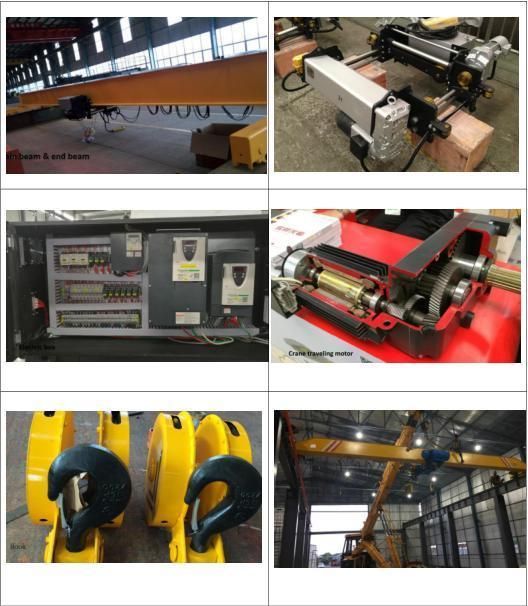

It is composed of beam, support legs, crane travelling mechanism, trolley, electric equipment and so on.
Gantry Crane Applied Cable Reel Runs Drum Warehouse Semi Gantry Crane

It has box type has characteristic of slim body and strong lifting capacity; trussed type has
characteristic of small windward surface, small
self weight and strong lifting capacity.



Gantry Crane Applied Cable Reel Runs Drum Warehouse Semi Gantry Crane

Control method:Pendent button control / radio remote control
Customized made gantry crane accepted according to client's actual using conditions.

Gantry Crane Applied Cable Reel Runs Drum Warehouse Semi Gantry Crane



Safety Devices for MH Gantry crane:
To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we provide are not only the electric protective devices or alarm bell but also other equipments as following:

1.Overload Limit Switch
2. Rubber Buffers
3.Electric Protective Devices
4.Emergency Stop System
5.Voltage Lower Protection Function
6. Current Overload Protection System
7. Rail Anchoring
8.Lifting Height Limit Device

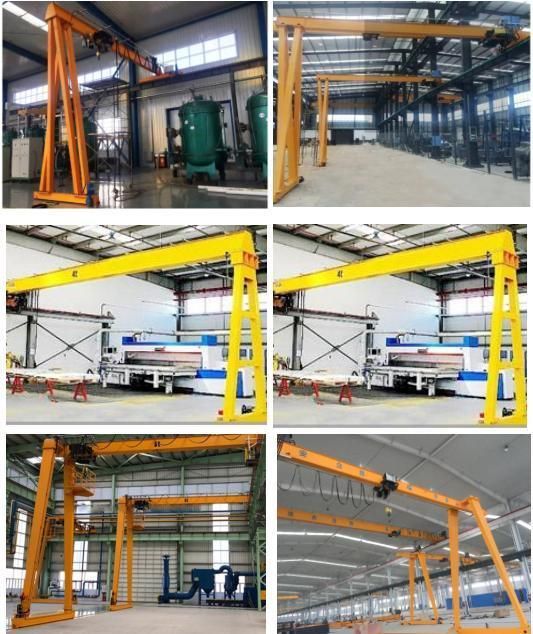

Installation for customers:
Gantry Crane Applied Cable Reel Runs Drum Warehouse Semi Gantry Crane

FAQ


Q1. Can the cranes be customized?
Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements. Please give us the information as clear as you can, so we can give our best design to suit for your demands.

Q2. How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind of operation way you need.

Q3. I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.

Q4. Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...

Q5: In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:
1. Lifting capacity.

2. Span length.(rail center to rail center)

3. Lifting height.(hook center to ground)

4. Have you installed the rails? Do you need us to supply the rails? How long is it? 5. Power supply: Voltage.

5. Working condition: what kind of material to lift? temperature?

6. It would be much better if it is possible for you to offer the drawing photo of your workshop.
