XCMG Official Xgc400 400 Ton Super Lift 400 Ton Crawler Crane

XGC400 is a new generation of crawler cranes developed on the basis of inheriting the advantages of QUY series products. The products are more safe and reliable, and enhance the convenience of disassembly and assembly, handling comfort and lifting performance. Equipped with mast a key to pull up, stepless and other advanced technology, all aspects of performance is better than the domestic counterparts.

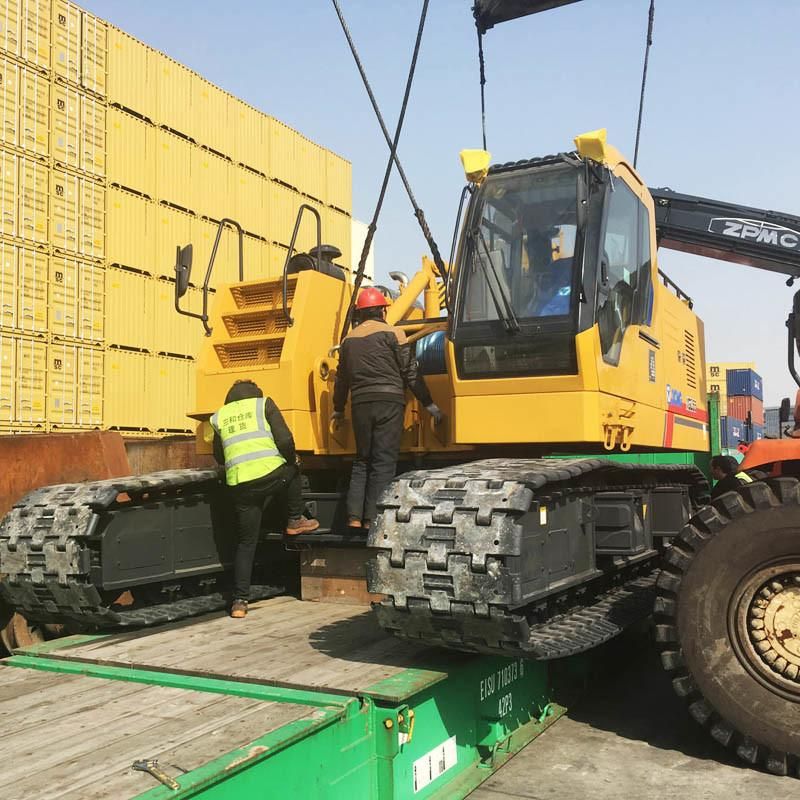

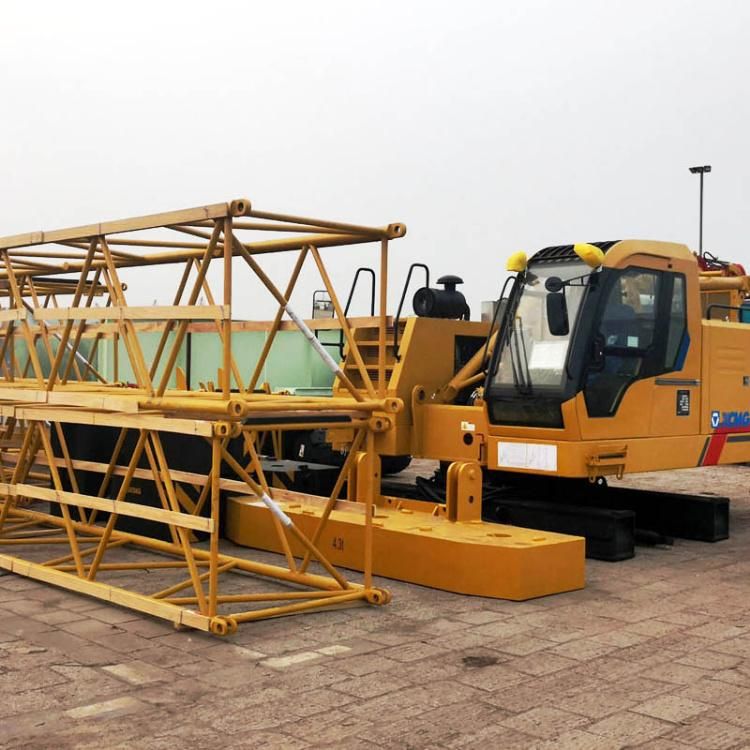

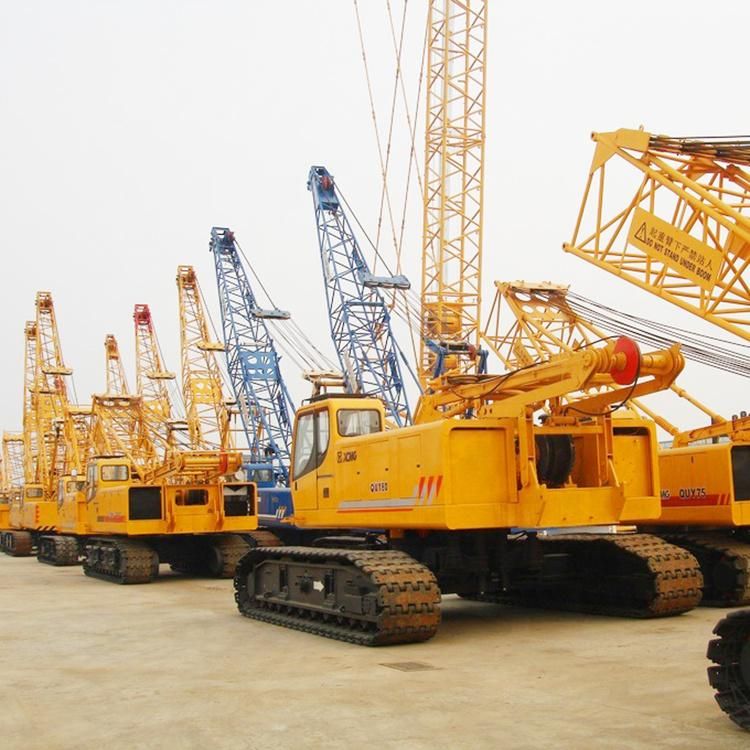

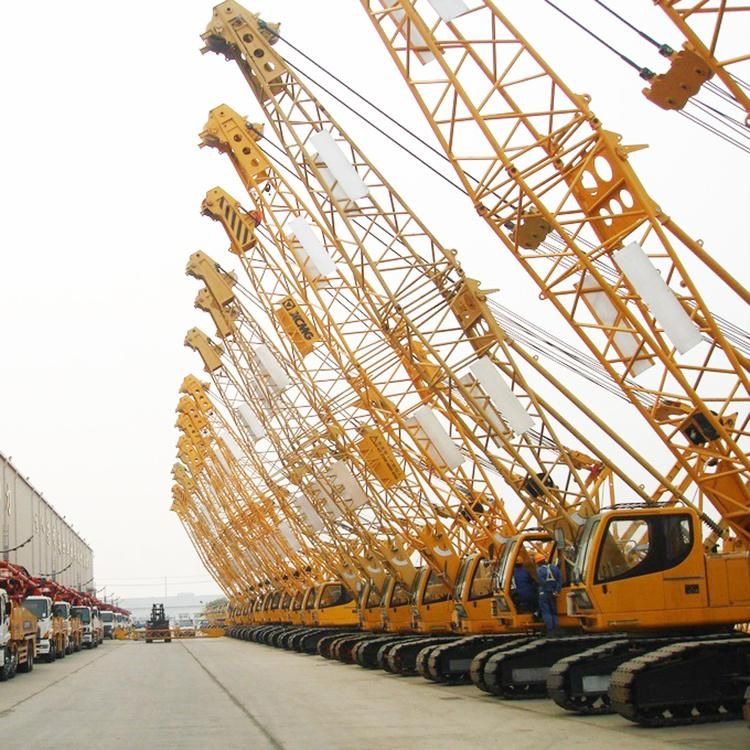

[Product Picture]




[Product Parameter]

Item	Unit	Parameter
Parameter item	-	XGC400
Performance parameters
Main boon rated liad	(t)	400
Fixed jib rated lifting weight	(t)	-
Luffing jib maximum rated lifting weight	(t)	185
Max Lifting Moment	(t.m)	5157
Tower jib maximum lifting weight	(t)	185
Working condition of single arm end pulley maximum rated lifting weight	(t)	26
	(t)	116
Dimension parameter
Main boom length	(m)	24~96
The main luffing Angle	(°)	-3~85
Fixed jib length	(m)	-
Tower jib length	(m)	24~84
Operating dimension(L*W*H)	(m)	11.1×3×3.38
Fixed jib installation Angle	(°)	-
Special deputy arm length	(m)	7
Speed parameter
The biggest single rope hoist speed	(m/min)	130
The boom luffer maximum speed of single rope	(m/min)	2×51
Deputy arm luffing mechanism's largest single rope speed	(m/min)	-
Maximum turning speed	(r/min)	1.1
Maximum travel speed	(km/h)	0.9
Gradeability	(%)	30
Average ground pressure	(MPa)	0.146
Luffing mechanism of tower arm's largest single rope speed	(m/min)	100
Over the range of maximum speed of single rope	(m/min)	105
Engine
Model	-	QSM11
power	(kW)	298
Emission	-	EuropeIII
mass parameter
Operating weight	(t)	350
Cargo status sheet maximum quality	(t)	48
