• Model NO.：LYFOOCRANE
• Type：Single Girder Crane
• Color：Red
• Voltage：380V
• Span：7.5-22.5m
• Capacity：1ton
• Lift Speed：8,0.8 M,Min
• Travel Speed：20 M,Min
• Work Duty：A3-A5
• Lift Height：6-30m
• Rail：24kg,M
• Hosit：CD,MD
• Sling Type：Wire Rope
• Power Source：Electric
• Moving Type：Wheel
• Installation：Overall Rapid Disassembly
• Transport Package：Plastic Cloth
• Specification：CE
• Trademark：LYFOOCRANE
• Origin：Beijing, China
• HS Code：84253190
• Production Capacity：50000 Units

Basic Info.

Model NO. LYFOOCRANE Type Single Girder Crane Color Red Voltage 380V Span 7.5-22.5m Capacity 1ton Lift Speed 8/0.8 M/Min Travel Speed 20 M/Min Work Duty A3-A5 Lift Height 6-30m Rail 24kg/M Hosit CD/MD Sling Type Wire Rope Power Source Electric Moving Type Wheel Installation Overall Rapid Disassembly Transport Package Plastic Cloth Specification CE Trademark LYFOOCRANE Origin Beijing, China HS Code 84253190 Production Capacity 50000 Units

Product Description

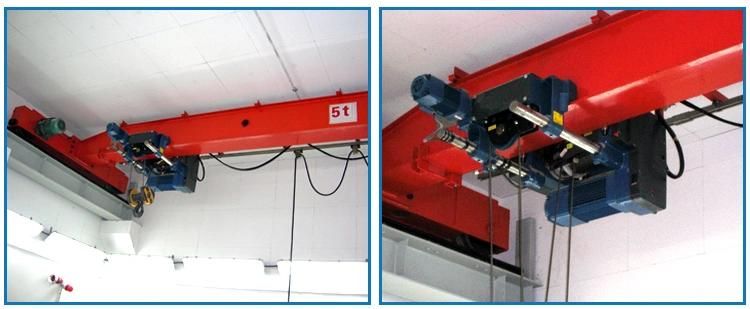

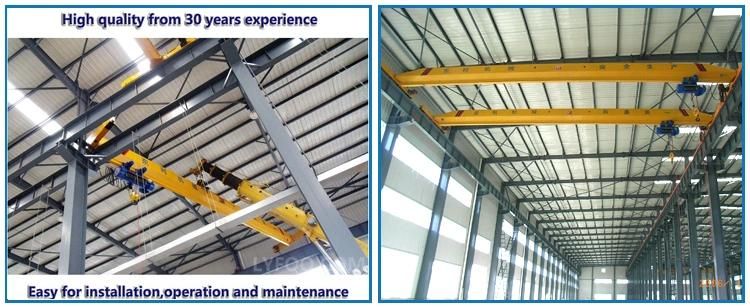

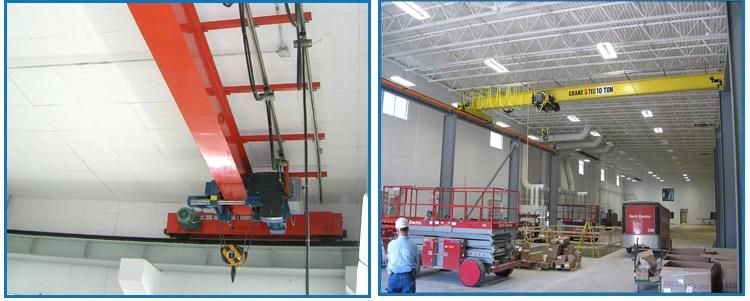

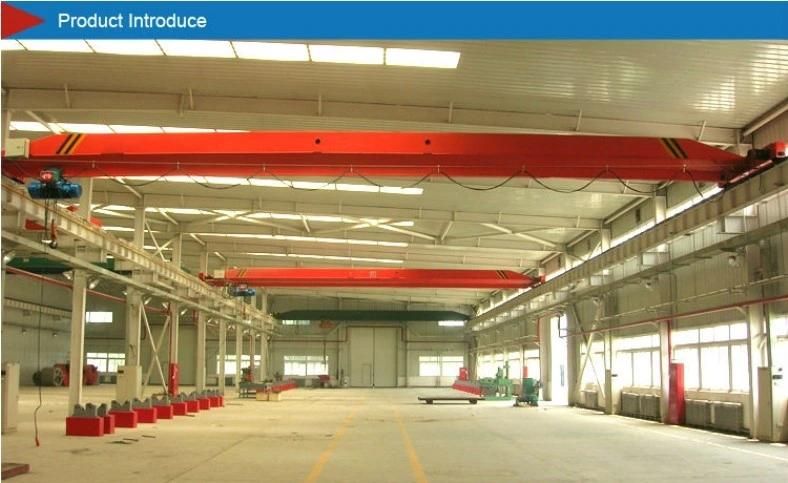

Single Girder Overhead Crane 12.5t

5t LD type electric single girder overhead cranes is the most commen crane. It has the advantage of light deadweight, little material, low price, easy control and convenient amending. LD type single beam electric bridge crane was recommended by WTO and apply to China standard JB/T1306-94.

LD type single girder electric crane can be divided into three parts as follow:
1. Steel structure inclueds main beam and end truck
2. Lift equipment, CD/MD or chain hoist. LD crane could have one or two speed.
3. Crane traveling mechanism: Two end carriages with wheels driven by electric motor.

Specification:

1. Capacity range: 0.5-20 ton.
2. Span length: 6-32m
3. Lifting height: 7.5-32m
4. Electric hoist: CD/MD Model.
5. Motors: Nanjing Zongchang (Best in China. )
6. Power supply: 380V/50Hz or as per client's requirement.

Safety feature:

1. Limit switch.
2. Overload stop device for hoisting.
3. Long bearing buffer for crane traveling.
4. Power faliure backup.

Notice: As this kind of crane is customized, in order to offer you most suitable design and solution, please confirm following information when you send inquiry.

1. Lifting capacity.
2. Span length. (rail center to rail center)
3. Lifting height. (hook center to ground)
4. Do you need bus bar, rail from us?
5. Local power supply 380V 50Hz 3P?
6. Working condition: What goods to lift?
7. Drawings of working place would be appreciated.

Here I list our major products for your reference, please check:

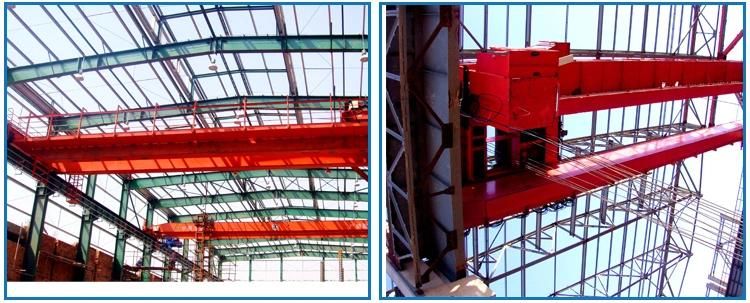

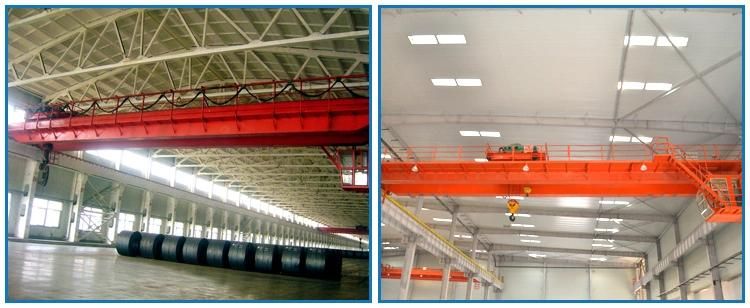

1. LH/QD model double girder overhead crane.
2. MH model single girder gantry crane.
3. MG model double girder gantry crane.
4. BMH semi gantry crane.
5. BZ model pillar mounted jib crane.
6. CD/MD electric hoist.
7. Crane spare part: Wheels/Motors/Hook block/Control panel/Coiling block.



Capacity	0.5t~20t
Span	4.5m~30m
Lift height	6m~12m
Lifting Speed	7m/min
Cross Travel Speed	20m/min
Long Travel Speed	20m/min or 30m/min
Work Duty	A3(Equal to m2)
Controlled by	Pendant/Radio
Power Supply	380v/400/415v/460v
