Crane

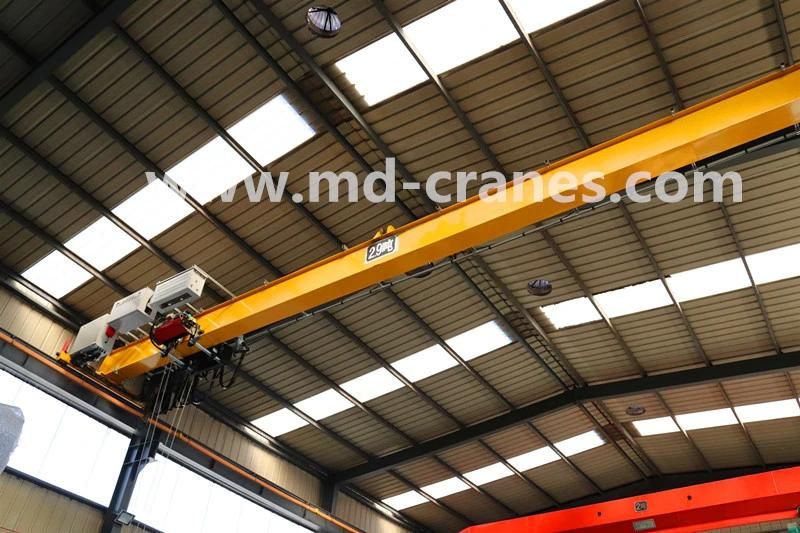

High Lift Capacity Mobile Travelling European Type Standard Workshop Overhead Bridge Crane

Shandong Mingdao Heavy Industry Machinery Co., Ltd.
  • After-sales Service:1 Year
  • Warranty:2 Years
  • Certification:GS, CE, ISO9001
  • Condition:New
  • Operation Form:Remote+Pendant
  • Maximum Lifting Height:30-40m

Base Info

  • Model NO.:LDE
  • Maximum Lifting Weight:20-50t
  • Main Girder Form:Single Girder
  • Type:Ordinary
  • Color:Yellow, Orange, and Customized
  • Lift Capacity:0.5-32 Tons
  • Lift Height:30m
  • Power Supply:Customized
  • Girder Type:Box Type
  • Working Class:A3 A4 A5
  • Steel Material:Q235B,Q345b
  • Lifting Mechanism:Electrical Hoist
  • Transport Package:by Container
  • Specification:customized
  • Trademark:Mingdao
  • Origin:China
  • HS Code:8426112000
  • Production Capacity:1000set,Year

Description

1.high reliability, safety, free maintenance rate;
  a) Work duty: FEM2M, M5
 b) Protection class: IP55
 c) Insulation class: F
 d) Continuing rate: 60% ( for the high class motor)
 e) Cooling rate: 30% than normal crane
 f) Over temperature protection: 170ºC2.Compact design, small size, low self weight, low headroom3.low noise4.Power-saved. The total motor power is much lower than normal design.

Main Girder:

1. Main girder uses bias-rail box type structure, with optimized design and light dead weight.
2. Steel material. Q235B / Q345B.
3. The cover and web plate should get surface rust removal by roller-way conveyor blasting machine before welding;this blasting machine can perform blanking, sandblasting, painting and drying.
4. The welding work of main girder should be performed on work platform (welding assembly unit). In order to avoid distortion of main beam, we adopts U-shaped welding assembly unit to assure that vertical deflection degree between the top cover plate and joint edge of stiffened plate and web plate is no more than H/200, and also effectively reduce the partial wave of web plate.
CE/SGS Wireless Remote Control Workshop Roof Traveling Fem European Type 2t 5t 10t Electric Single Girder Overhead Crane





CE/SGS Wireless Remote Control Workshop Roof Traveling Fem European Type 2t 5t 10t Electric Single Girder Overhead Crane

 CERTIFICATES
 Radio Remote Control Type Overhead Crane with Wire Rope Electric Hoist

FACTORY
 Shandong Mingdao Heavy Industry Machinery Co., Ltd.Is located in Taian City,Shandong Province, China. We are mainly engaged in the design,

manufacture,installation and maintenance of single girder cranes(LD Models), Double Girder Cranes (LH,QD etc),gantry cranes(MH,MDG..),Jib

cranes
(BZ,QZ,MZ etc), variable frequency cranesExplosion-proof series cranes(LB,QB etc), Cranes with grab bucket,Low headroom

monorail Hoist
Electric Winches, scrapers and CD1 MD1 HC Electric HoistHand Chain Hoist etc...

In the past 10 years, we are aiming at China domestic market and become a leading manufacturer in China. Also,we have exported our products to

many countries such as Vietnam, Philippines, Sri Lanka, Bangladesh, France, Dubai, Kazakhstan, Russia, Tanzania,Peru , New Zealand ,etc

countries. We welcome you will cooperation with us in near future.

High Lift Capacity Mobile Travelling European Type Standard Workshop Overhead Bridge Crane

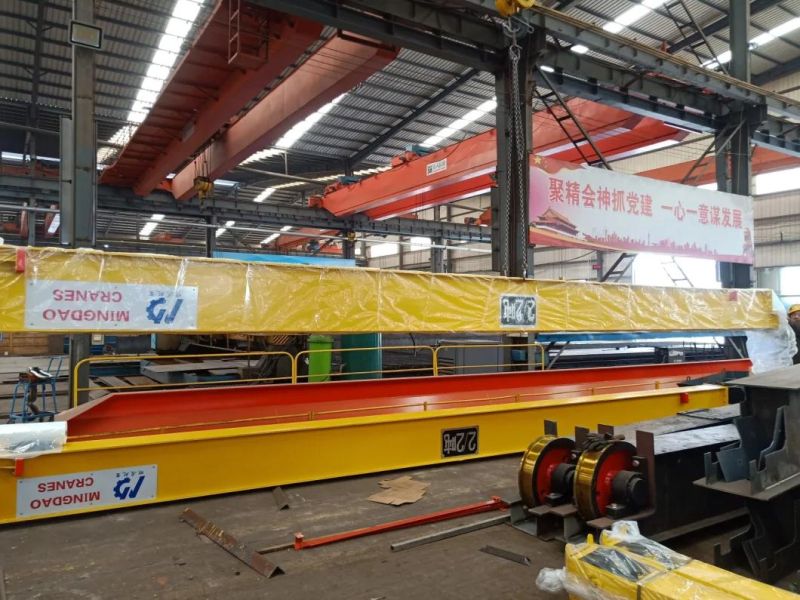

PACKAGE AND SHIPPING
High Lift Capacity Mobile Travelling European Type Standard Workshop Overhead Bridge Crane


FAQ ABOUT MINGD CRANES:
 1.Can the cranes be customized?
Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements.
Please give us the information as clear as you can, so we can give our best design to suit for your demands.

2.How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind
of operation way you need.

3.I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.

4.Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...
 FOR INQUIRY:
In order to offer the most suitable design solution for you, it will be great helpful if you can offer the following information to us:
1. Lifting capacity.
2. Span length.(rail center to rail center)
3. Lifting height.(hook center to ground)
4. Have you installed the rails? Do you need us to supply the rails? How long is it?
5. Power supply: Voltage.
6. Working condition: what kind of material to lift? temperature?
7. It would be much better if it is possible for you to offer the drawing photo of your workshop.
