• Model NO.：LH
• Type：Ordinary
• Product Name：Workshop Overhead Crane
• Power Source：220V,380V,415 on Request
• Color：Industrial Yellow ,Red or on Request
• Girder Type：Box Type
• Insulation：F
• Application：Steel Mills, Warehouse,Hydropower Station,Producti
• Motor：Gear Motor
• Warranty：2 Years
• Aftersale Service：Engineer Overseas Service Available
• Electric Parts：Siemens Delixi
• Lifting Spped：8m,5m Per Minute
• Hoist Type：Rope Hoist
• Cross Speed：0~20m ,Min
• Work Duty：A3 A5 A6 A7 or on Request
• Lift Capacity：on Customer′s Request
• Transport Package：Standard Export Package
• Specification：Material: Q235B,Q345B
• Trademark：Mingdao
• Origin：China
• HS Code：8426112000
• Production Capacity：1000sets, Year

Basic Info.

Model NO. LH Type Ordinary Product Name Workshop Overhead Crane Power Source 220V/380V/415 on Request Color Industrial Yellow /Red or on Request Girder Type Box Type Insulation F Application Steel Mills, Warehouse,Hydropower Station,Producti Motor Gear Motor Warranty 2 Years Aftersale Service Engineer Overseas Service Available Electric Parts Siemens Delixi Lifting Spped 8m/5m Per Minute Hoist Type Rope Hoist Cross Speed 0~20m /Min Work Duty A3 A5 A6 A7 or on Request Lift Capacity on Customer′s Request Transport Package Standard Export Package Specification Material: Q235B/Q345B Trademark Mingdao Origin China HS Code 8426112000 Production Capacity 1000sets/ Year

Product Description

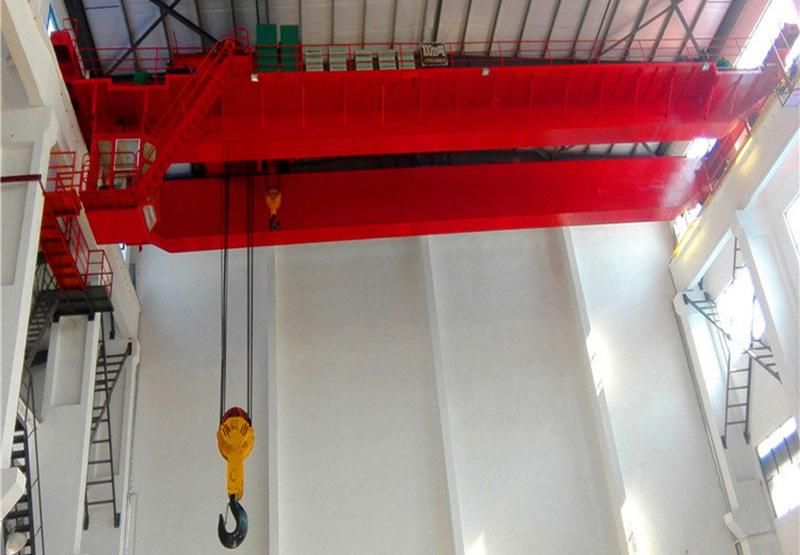

Mingdao Crane Brand Double Girder Overhead Crane with Electric Traveling Hoist


Double girder electric overhead crane has the advantages of compact shape dimension, low building headroom height, light weight,small wheel pressure and so on. It uses together with CD1 or MD1 electric hoist. It is suitable for transporting, assembling ,repairing and load; unload works in mechanical processing workshop,metallurgy auxiliary workshop, storage, yards, power station and so on. It can replace normal double-beam bridge crane and being used in workshop of textile industry and food industry. The work type can be divided into two kinds- light class and intermediate class.

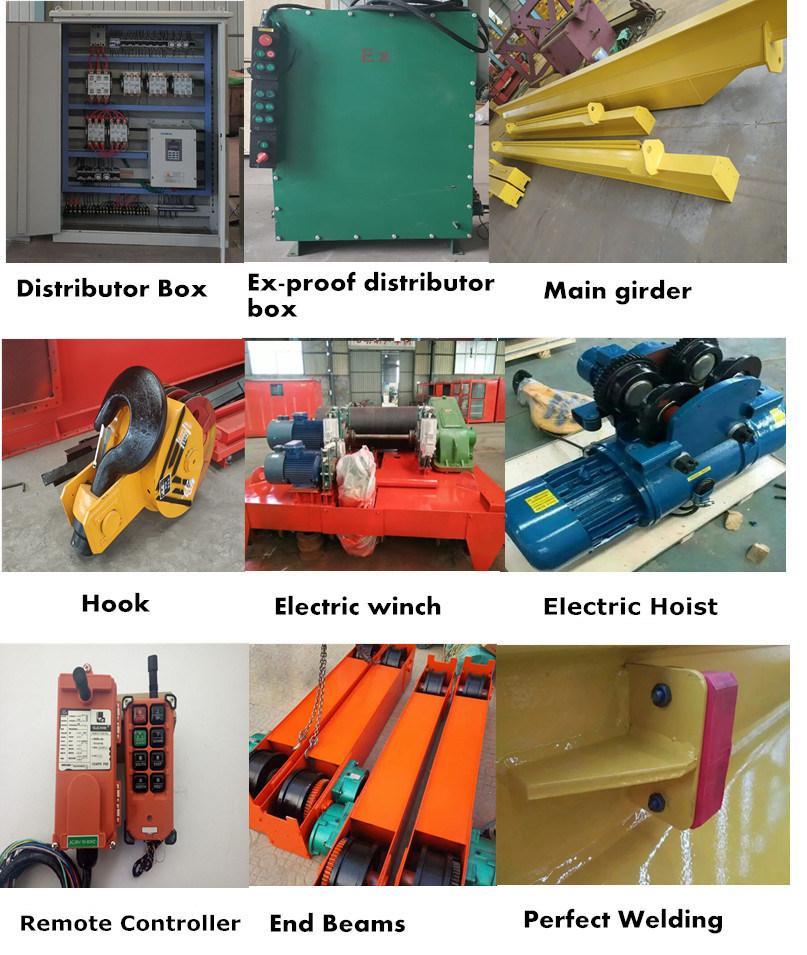

Lifting Mechanism	Wire Rope Hoist (CD/MD/European Type) Lift Speed: single/dual Travel speed:variable Function: Lift goods
Main Girder/Beam	Rigid welded box type Module design Gear motor Travel speed:variable Function:Bearing load Material: Q235/345

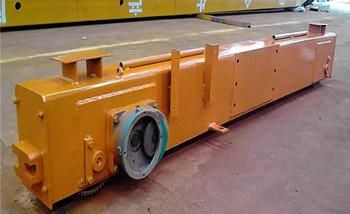

End Carriages	Rigid welded box type Modular design Function: Push crane run forward or reverse Materials:Q235/345

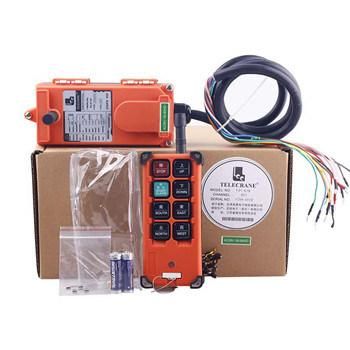

Control	Ground pendent button Radio Remote control Cabin control
Electric parts	Circuit breaker/ AC contactor etc electric parts use Schneider /Siemens/ABB/DELIXI Etc famous brand

Advantages of a Double Girder Design

1.Greater hook height - how far above the floor the hoist will lift (typically 18-36" more than single girder)

2.No limits to maximum span or capacity

3.Ideal for production and transportation of heavy equipment

4.Ideal for frequent lifting of heavy loads

5.Added features like walkways and maintenance platforms, cabs, magnetic reels, and lights can be added and supported by a double girder design

6.Can be used in indoor and outdoor applications, including mining, iron and steel, railyards, and ports.

Safe Devices:
1.Overload Limit Switch

2. Rubber Buffers 3.Electric Protective Devices

4.Emergency Stop System

5.Voltage Lower Protection Function

6. Current Overload Protection System

7. Rail Anchoring 8.Lifting Height Limit Device

FAQ
Q1. Can the cranes be customized?
Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements. Please give us the information as clear as you can, so we can give our best design to suit for your demands.

Q2. How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind of operation way you need.

Q3. I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.

Q4. Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...

Q5: In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:

1. Lifting capacity.

2. Span length.(rail center to rail center)

3. Lifting height.(hook center to ground)

4. Have you installed the rails? Do you need us to supply the rails? How long is it? 5. Power supply: Voltage.

6. Working condition: what kind of material to lift? temperature?

7. It would be much better if it is possible for you to offer the drawing photo of your workshop.
