• Main Girder Form：Single Girder

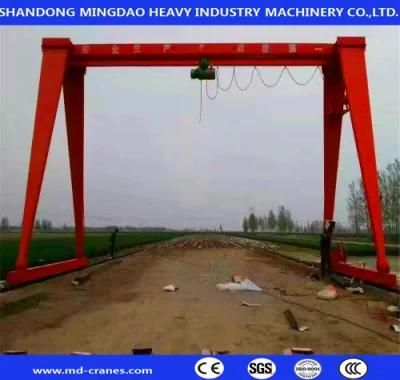

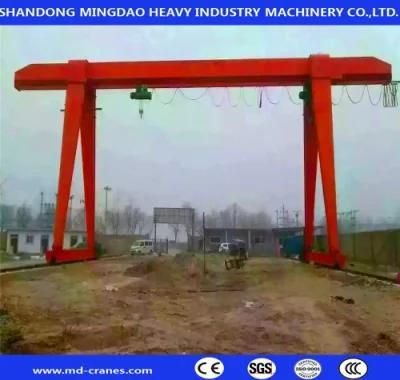

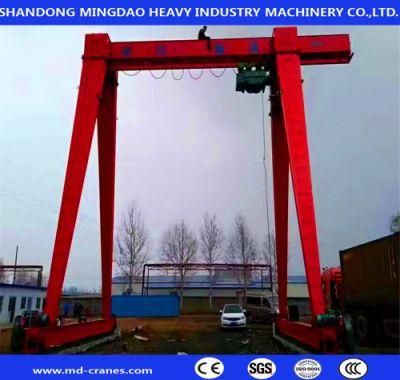

• Product Name：Single Beam Gantry Crane
• Span：10~35m
• Color：on Request
• Warranty：2 Years
• Overseas Installation：Available
• Power Source：380V 3pH 50Hz
• Work Duty：A3-A5
• Application：Warehouse Workshop
• Control Method：Pedent Button or Remote Control or Cabin
• Production Time：10-15 Days
• Running Type：Rails
• Power Supply：Bus Bar
• Girder Type：Double Girder Single Girder
• Manufacture：Mingdao
• Co：China
• Transport Package：Container or Bulk Ship
• Specification：Customized type
• Trademark：MD
• Origin：China
• HS Code：8426193000
• Production Capacity：1000sets, Year

Capacity

T

3

5

10

16

20

Span

m

12,16,20,24,30

Operational method



Pendent Line With Press Button /Cabin/ Remote

Speed

Lifting

m/min

8 ,8/0.8

8,8/0.8

7,7/0.7

3.5

3.5



Cross traveling



20

20

20

20

20



Long traveling

Ground



20

20

20

20

20





Cabin



20, 30,45

20, 30,40

30,40

30,40

30,40

Motor

Lifting

Type /kw

ZD41-4/4.5

ZDS1-4/0.4/4.5

ZD141-4/7.5 ZDS10.8/4.5

ZD151-4/13 ZDS11.5/4.5

ZD151-4/13

ZD152-4/18



Cross traveling



ZDY12-4/0.4

ZDY121-4/0.8

ZDY21-4/0.82

ZDY121-4/0.82

YZD-4/0.84



Long traveling

Ground



ZDY21-4/0.82

ZDY21-4/1.52

YZY22-4/1.52

YZR132M2-6/3.72

YZR22-4/1.52

YZR160M1-6/6.32

YZR160M2-6/8.52

YZR160M1-6/6.32

YZR160M2-6/8.52





Cabin



ZDR100-4/1.52

ZDR112-4/2.12

YZR112L1-4/2.12

YZR160M1-6/2.12

YZR112L1-4/2.12

YZR160M2

YZR160M2-6/8.52

YZR160L2-6/112

YZR160M2-6/8.52

YZR160L2-6/112

Electric hoist

Model

CD1/MD1

CD1/MD1

CD1/MD1

CD1

HC

Lifting height

m

6,9,12,18,24,30

Working duty



A3

Power supply



380V 60HZ 3phase AC (According to your demand

Safety Devices for overhead bridge crane:

 To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we
provide are not only the electric protective devices or alarm bell but also other
equipments as following:

1.Overload Limit Switch
2. Rubber Buffers
3.Electric Protective Devices
4.Emergency Stop System
5.Voltage Lower Protection Function
6. Current Overload Protection System
7. Rail Anchoring
8.Lifting Height Limit Device

Features:

• Crane traveling limit switch

• Weight overload protection device

• Lifting height limit device

• Voltage lower protection function

• Phase sequence protection function

• Emergency stop function



Packing and Shipping:

1.Electric parts and electric hoist packed by high quality plywood crate,

2.Other parts packed by Woven bag.

3.Shipped  by Conatiners or Bulk Ship

Customers Visiting Factory:





FAQ

1.Can the cranes be customized?
Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements.
Please give us the information as clear as you can, so we can give our best design to suit for your demands.

2.How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind
of operation way you need.

3.I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.

4.Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...

5.In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:
1. Lifting capacity.
2. Span length.(rail center to rail center)
3. Lifting height.(hook center to ground)
4. Have you installed the rails? Do you need us to supply the rails? How long is it?
5. Power supply: Voltage.
6. Working condition: what kind of material to lift? temperature?
7. It would be much better if it is possible for you to offer the drawing photo of your workshop.
