• Model NO.：XGC75
• Rated Power of Engine：155kw
• Transport Package：Standard Packaging
• Specification：46300.000kg
• Trademark：XCMG
• Origin：Xuzhou
• Production Capacity：10000,Year

Basic Info.

Model NO. XGC75 Rated Power of Engine 155kw Transport Package Standard Packaging Specification 46300.000kg Trademark XCMG Origin Xuzhou Production Capacity 10000/Year

Product Description

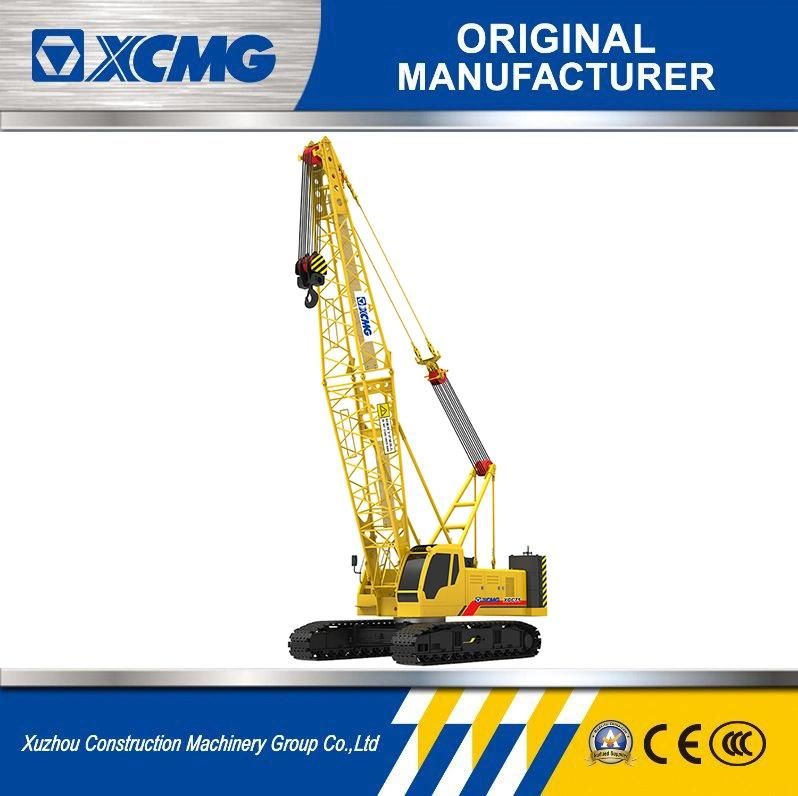

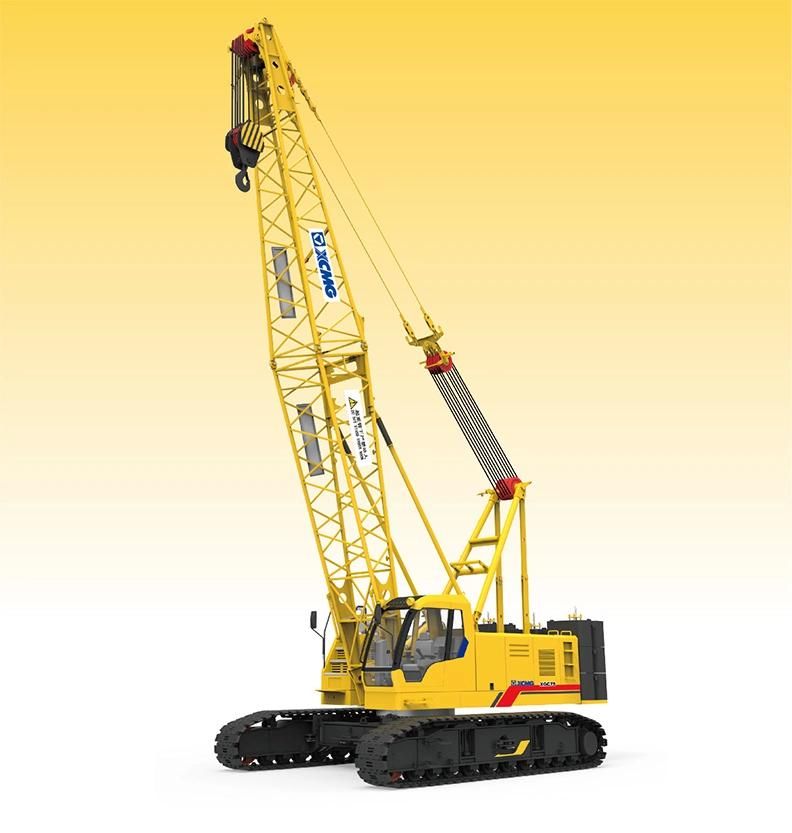

XCMG XGC75 75ton Crawler Crane

XGC75 is a new generation crawler crane which is successfully developed on the basis of XCMG second generation product XGC55, XGC75 and XGC85. Inheriting the advantages from the old generation product, XGC75 crawler crane pays more attention to the improvement of crane performance, transport convenience and operation comfort. The system is mature and reliable with complete safety devices. Fitted with multiple advanced technologies, such as gantry self-erecting function, aux. hook quick release function,  main and auxiliary hook block one-key switch function, slewing fine motion control and etc., the crane's  performance is superior to that with other domestic brands in various aspects.

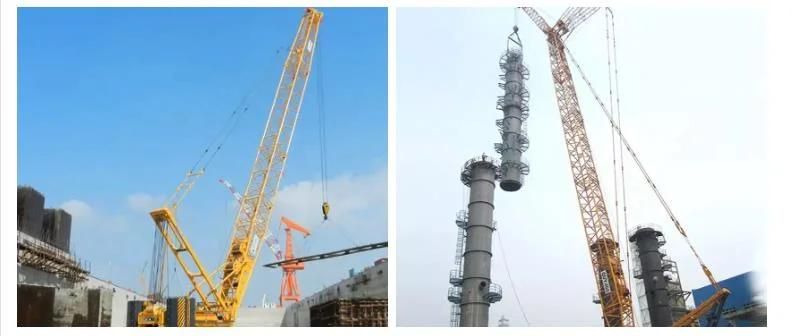

XGC75 crawler crane has a wide range of application, including transportation infrastructure construction, city building construction, large load lifting and transfer, energy equipment installation and others.

Item	Unit	Parameter value
Parameter Item	-	XGC75
Operation performance parameter		*
Max. rated lifting capacity for boom	(t)	75
Max. rated lifting capacity for fixed jib	(t)	12
Max. rated lifting capacity for luffing jib	(t)	-
Max. load moment	(t.m)	286
Max. rated lifting capacity for tower jib	(t)	-
Max. rated lifting capacity for boom single top	(t)	6.5
Max. rated lifting capacity for special jib	(t)	-
Dimension parameter		*
Boom length	(m)	13~58
Boom luffing angle	(°)	-3~80
Fixed jib length	(m)	7~19
Tower jib length	(m)	-
Max. dimension of single unit in transport state(L×W×H)	(m)	12.7×3.4×3.4
Fixed jib offset angle	(°)	10,30
Special jib length	(m)	-
Speed parameter		*
Max. single line speed for hoist mechanism	(m/min)	128
Max. single line speed for boom luffing mechanism	(m/min)	70
Max. single line speed for jib luffing mechanism	(m/min)	-
Max. slewing speed	(r/min)	3
Max. travel speed	(km/h)	1.4
Grade ability	(%)	30
Mean ground pressure	(MPa)	0.08
Max. single line speed for tower jib luffing mechanism	(m/min)	-
Max. single line speed for superlift luffing	(m/min)	-
Engine		*
Model	-
Engine power	(kW)	155/153
Emission	-
Mass parameter		*
Overall crane mass	(t)	61(main hook, 13m boom)
Max. mass of single unit in transport state	(t)	37
