• Model NO.：OKT-16
• Type：Folding
• Transport Package：Container
• Specification：11260*2330*3260mm
• Trademark：OUKE
• Origin：Shandong, China
• HS Code：842790000
• Production Capacity：100set,Month

Basic Info.

Model NO. OKT-16 Type Folding Transport Package Container Specification 11260*2330*3260mm Trademark OUKE Origin Shandong, China HS Code 842790000 Production Capacity 100set/Month

Product Description

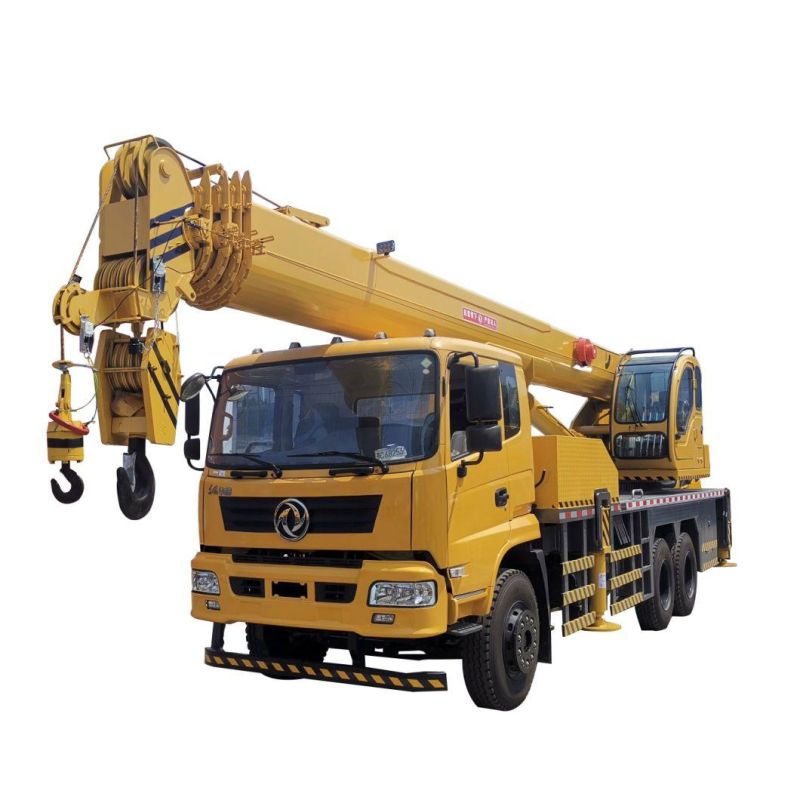

Factory Supply Price Small Truck Crane Truck Mounted Crane Mobile Crane

1.Advanced development & analysis means make sure design is very reliable.2.Using two-section telescopic cylinder design,one of the cylinders push the second large boom,another cylinder push the rest of the telescopic boom by the pulley block and wire rope.To ensure that the crane has strong lifting capacity in the middle distance and effectively protect the wire rope in the boom.3.The more symmetrical center design of pentagon & hexagon boom made it has bigger anti-bending capacity.4.Anti-slewing impulse equipment that make vehicle running safely.

Product parameters

No	Items
Chassis	Futian Ruiwo car crane special chassis.
Engine	YC4S140-50
tires	900R20
brake	air brake
Direction	Hydraulic boost
wheelbase	4400mm
the highest speed	85Km / h
single arm length	8m
boom number	5
boom structure	inner rope
thick section boom size	height 58 cm, width: 48 cm
Number of lifting legs	5 (two legs on the side, and auxiliary hind legs)
side leg structure	double leg, unilateral leg span 2 meters (from the body)
Outrigger span	spans 6.25 meters; longitudinal span: 5 meters
hydraulic system	three pump confluence system
Fan heat system	air-cooled fan heat system
motor	18.5kw (optional)
double winch	double inclined shaft plunger motor hydraulic winch
large structure	I-shaped steel box large frame
Appearance size	length 11250mm; width 2400mm; height 3300mm
the total quality	17500kg
