• Model NO.：XGC260
• Main Boom Length：13~58(M)
• The Main Luffing Angle：-3~80
• Transport Package：Comply with Export Packaging Requirements
• Specification：ISO
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：84264910
• Production Capacity：100,Year

Basic Info.

Model NO. XGC260 Main Boom Length 13~58(M) The Main Luffing Angle -3~80 Transport Package Comply with Export Packaging Requirements Specification ISO Trademark XCMG Origin Xuzhou, Jiangsu, China HS Code 84264910 Production Capacity 100/Year

Product Description

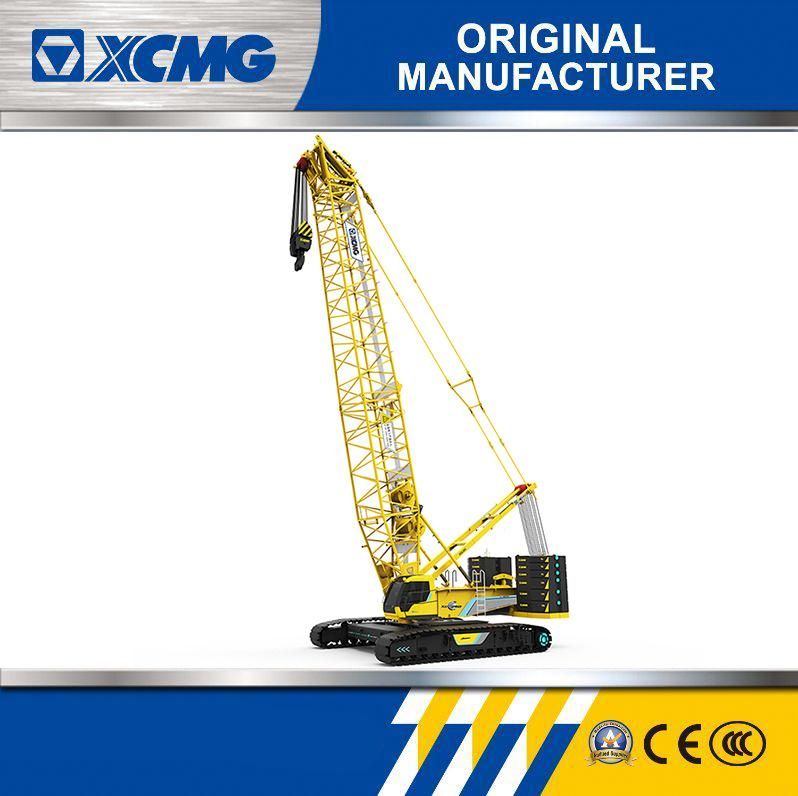

Crawler Cranes XCMG 260ton Lift Capacity Lifting Equipment

XGC260 crawler crane fully equipped self-assembly system can easily achieve: rear counterweight self-assembly, track frame self-assembly, and boom base self-assembly.

XGC260 crawler crane superstructure is a large box-type structural design, with heavy load bearing capacity, light weight, and good rigidity.
Auxiliary hoisting winch is placed in boom base, with ralaxed arrangement for turntable, easy maintenace.
Undercarriage is integrated full coverage design, expand the space for maintenance, improve operation and assembly accessibility, and the whole mahcine looks more compact.

XGC260 crawler crane excellent performance
It uses the world's first boom function integrated technology, one set of JIB can achieve 3 kinds of working conditon such as TBM JIB, wind power JIB and fixed JIB; one independent machine cna complete 8m diameter TBM equipment turnin-over and assembly into position, give full play to the parts versatility and interchangeability, and minimize the parts site transfer.
XGC260 260ton crawler crane has selection of counterweight combination according to the lifting load, more ecomonical purchase and operation costs, more applicability for working conditions.

[Product Picture]




[Product Parameter]

Item	Unit	Parameter
Parameter item	-	XGC260
Performance parameters
Main boon rated liad	(t)	260
Max. load moment	(t.m)	1450
Boom length	m	24-93
Light-duty boom length	m	67.5-100.5
Boom luffing angle	(°)	-3 - 85
Tower JIB length	m	24-66
Tower JIB luffing angle	(°)	20-75
Max. travel speed	(r/min)	1.1
Max. slewing speed	(km/h)	1.2
Power	(kw/rpm)	247/1900

[Company Information]


Company profile
XCMG is a construction machinery manufacturer with over 70 years of experience. Over the years, we have grown to become the world's most comprehensive construction machinery manufacturer and influential multinational company. In 2015, we rank No.1 in China and No. 5 in global heavy equipment industry.XCMG's construction machinery covers an astonishing range of equipment, including cranes, earth-moving  machinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.  Our other businesses include finance, leasing, and remanufacturing.

Competitive Advantage
My company's straight arm crane crane covers 1-25 tons 14 models 65 kinds of products, to meet a variety of conditions, with the longest arm of the largest tonnage crane mature manufacturing technology, scientific research and development process, advanced Research and development technology, and constantly have new products to market, to meet customer use.
My company's boom arm section with mature pentagonal, hexagonal and octagonal, the latest generation of products with U-shaped arc arm body weight reduction, arm width of a large deflection, stability and resistance to deformation Ability to improve, significantly enhance the lifting capacity.
The application of the sub-arm, sub-winch and vice-hook provides a basis for the rapid and large-scale operation of the crane light load and the high-altitude operation. The application of automatic hook technology saves time and effort when starting and ending crane operations, making it easy to operate easily.
Our company will offer you the high quality products with a low price, quick delivery,and professional after-sale service.






FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
