5t 10t 15t for Indoor Warehouse Single Girder China Gantry Crane

Shandong Mingdao Heavy Industry Machinery Co., Ltd.
  • Certification：RoHS, CE, ISO9001
  • Condition：New
  • Maximum Lifting Weight：3ton-32ton
  • Maximum Lifting Height：6m, 9m
  • Operation Form：Remote Control
  • Type：Common Gantry Crane

Base Info

  • Model NO.：MH
  • Main Girder Form：Single Girder
  • Product Name：Single Beam Gantry Crane
  • Span：12~30m
  • Color：on Request
  • Warranty：2 Years
  • Overseas Installation：Available
  • Power Source：380V 3pH 50Hz
  • Work Duty：A3-A5
  • Application：Warehouse Workshop
  • Control Method：Pedent Button or Remote Control or Cabin
  • Production Time：10-15 Days
  • Running Type：Rails
  • Power Supply：Bus Bar
  • Girder Type：Double Girder Single Girder
  • Manufacture：Mingdao
  • Co：China
  • Transport Package：Container or Bulk Ship
  • Specification：Customized type
  • Trademark：MD
  • Origin：China
  • HS Code：8426193000
  • Production Capacity：1000sets, Year

Description

Crane Traveling MechanismTraveling Speed(m/min)20MotorTypeCone Squirrel-cagePower(kw)ZDY21-4/0.8X2Hoist Lifting Mechanism and Traveling MechanismElectric Hoist ModelCD1,MD1,HCLifting Speed(m/min)8 0.8/8Span(m)12-30Lifting Capacity(t)3-32TonLifting Height(m)6,9Traveling Speed(m/min)20MotorCone Squirrel-cageWork DutyIntermediate Jc=25%Power Supply380V 50HZ 3PWheel DiameterΦ270 Φ400ReducerZSC650 ,LD
Customized made gantry crane accepted according to client's actual using conditions.

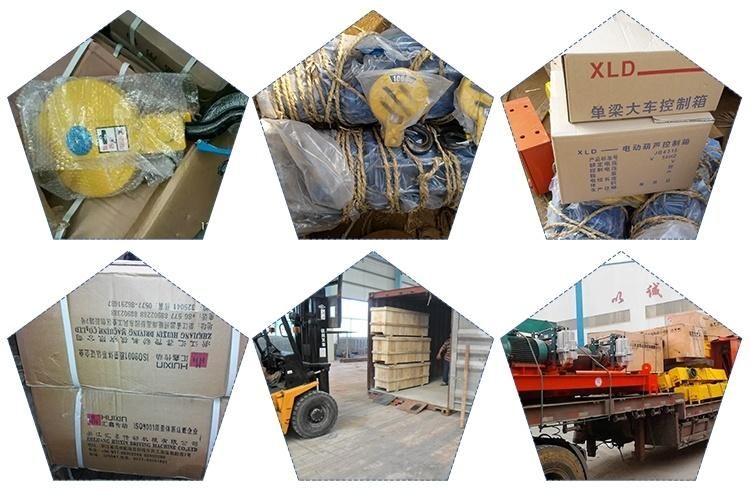

Gantry Crane Packing and Shipping

1.Electric parts and electric hoist packed by high quality plywood crate,

2.Other parts packed by Woven bag.

3.Shipped  by Conatiners or Bulk Ship

5t 10t 15t for Indoor Warehouse Single Girder China Gantry Crane


Safety Devices for overhead bridge crane:

 To guarantee the normal operation of crane and avoid the personal casualty and mechanical damage, the safety device we
provide are not only the electric protective devices or alarm bell but also other
equipments as following:

1.Overload Limit Switch
2. Rubber Buffers
3.Electric Protective Devices
4.Emergency Stop System
5.Voltage Lower Protection Function
6. Current Overload Protection System
7. Rail Anchoring
8.Lifting Height Limit Device

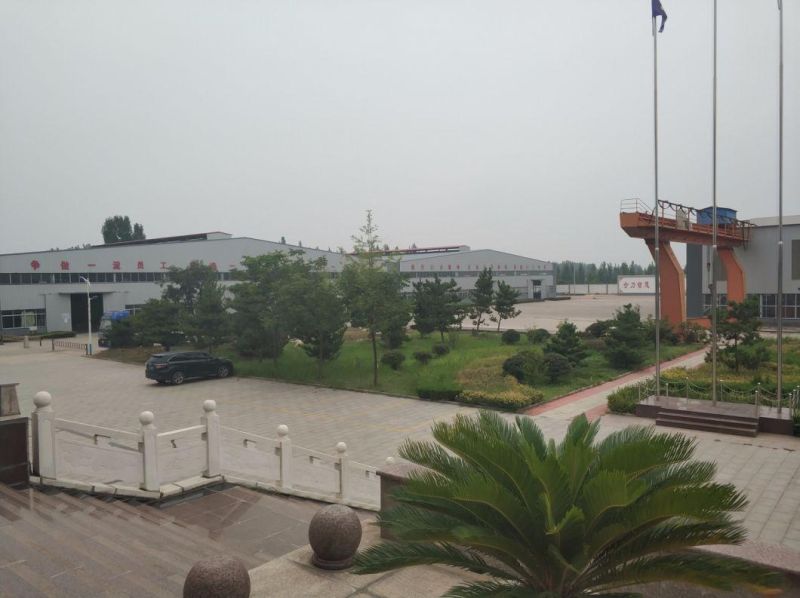

ABOUT MINGD CRANES:
5t 10t 15t for Indoor Warehouse Single Girder China Gantry Crane

FAQ

1.Can the cranes be customized?
Yes,every customer's working condition is different, all of our products can be customized depend on customers' requirements.
Please give us the information as clear as you can, so we can give our best design to suit for your demands.

2.How many operation methods for my selections?
We provide pendent controller with push button control type, remote control type or cabin control type.Please tell us what kind
of operation way you need.

3.I have low headroom in my workshop, is it possible to install a crane in it?
We have special products for low headroom workshop, our engineer can give the best design according to your dimensions.

4.Do you supply lift tools?
Yes, we can provide any kind of lifting tools such as hook, electromagnetic, grab bucket etc...

5.In order to offer the most suitable design solution for you, it will be great helpful if you can offer us the following information to us:
1. Lifting capacity.
2. Span length.(rail center to rail center)
3. Lifting height.(hook center to ground)
4. Have you installed the rails? Do you need us to supply the rails? How long is it?
5. Power supply: Voltage.
6. Working condition: what kind of material to lift? temperature?
7. It would be much better if it is possible for you to offer the drawing photo of your workshop.

Certificates:
 5t 10t 15t for Indoor Warehouse Single Girder China Gantry Crane

Customized Design &Production Accepted According to Your Using
Situation, Please Contact Us for Further Communication:
