• Model NO.：T2850-120V
• Type：Top-Slewing Crane
• Trademark：Zoomlion
• Origin：China
• HS Code：8426200000
• Production Capacity：1000

Basic Info.

Model NO. T2850-120V Type Top-Slewing Crane Trademark Zoomlion Origin China HS Code 8426200000 Production Capacity 1000

Product Description

Feature

Performance parameters

Performance parameters and technical indexes reach both domestic and international advanced level.
• Max. jib length: 85m; Jib length under different assembling modes can decrease progressively by 5 meters and the Min. jib length is 50 meters.
• Max. lifting capacity 120/160t;
• Hoisting capacity at jib tip:27t;
• Max. lifting moment 2850 t.m;
• Hoisting mechanism:H132FL150-1230-D; power: 132/160kW; rope capacity:1230/1300m;
• Slewing mechanism:HP185F1.350A/HP185F2.350A; power: 4×18.5kW(85m  jib), 3×18.5kW(others);
• Trolleying mechanism: T185FC85; power:18.5kW
• Types of tower crane: stationary crane with embedded outriggers, stationary crane with embedded bolts, stationary crane with under-frame and mobile tower crane.

Electrical control system

With PLC control, the electrical control system enjoys better reliability and safety. Produced by professional manufacturers with advanced foreign technology, the electrical elements feature service lives that are 3 or 4 times longer than that of domestic products, less faults, easy maintenance and repair as well as reliable operation.

Technical features

•The crane boasts of multiple operation modes and wide application. The crane can work in different forms: stationary crane with embedded outriggers, stationary crane with under-frame, stationary crane with embedded bolts and crane anchored to wall, thus being applicable to various construction projects.
• The complete machine adopts internationally well-received beautiful shape;
• The crane features high working speed and excellent speed regulation performance. Stepless speed regulation by frequency control, the world's most advanced solution, is adopted for the trolleying mechanism and slewing mechanism, thus ensuring more stable and reliable operation;
• The cab is independently installed externally with good vision and large inner space, thus offering a good working environment for operators;
• A variety of safety devices are equipped, which are all mechanical or mechatronic products that are applicable to severe working conditions, so as to ensure the tower crane's reliable operation.



Our Company




     Founded in 1992, Zoomlion Heavy Industry Science & Technology Co., Ltd. is mainly engaged in
     developing and anufacturing major high-tech equipment in the areas of engineering industry and
     agricultural industry.

      With more than 20 years of innovation and development, the company is now a global enterprise
      possessing 10 major categories and 55 product lines, as well as nearly 460 leading products. Zoomlion is
      China's first construction machinery company to be listed on both Shenzhen and Hong Kong stock
      exchanges, with registered  capital amounting to RMB 7.664 billion. At present,   the company is actively
      promoting strategic transformation, aiming to build a high-end equipment.



      In 1956, the predecessor of Zoomlion, Changsha Construction Machinery Research Institute, developed
      the  first tower crane in China with independent intellectual property rights-QTZ160. With more than 60
      years of  technology inheritance and innovation, Zoomlion has now developed into a world-leading tower
      crane manufacturer and also the secretariat unit of the International Organization for
      Standardization/Crane Technical  Committee (ISO/TC96).

      The products of Zoomlion Construction Hoisting Machinery Company cover four series: hammer-head
      tower  cranes, flat-top tower cranes, luffing tower cranes and construction hoists. Many star products
      have been born  as well, such as the world's largest tonnage top-slewing jack-up Tower crane D5200, the
      world's longest-boom  tower crane D1250, which set a world record for Guinness, the world's largest

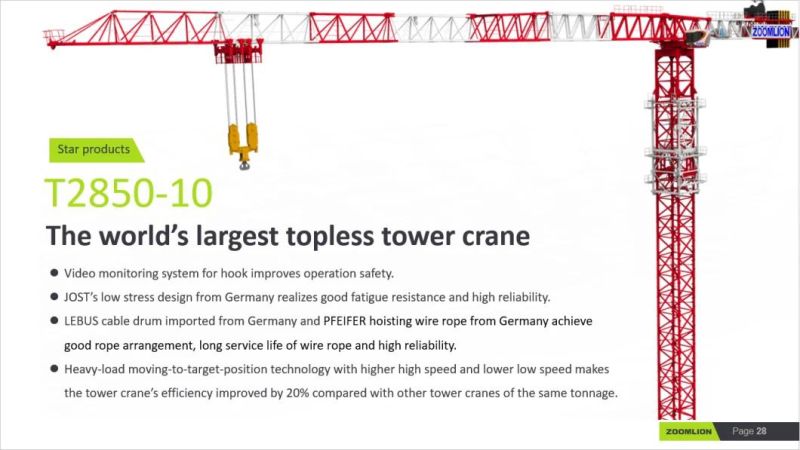

      tonnage flat-top tower crane  T2850, and the world's largest tonnage internal climbing boom tower crane
      LH3350, which rolled off the assembly line in 2019.
