• Model NO.：Qy30K5
• Shaft Number：3
• Crane Jib：Five-Arm
• Transport Package：Nude
• Trademark：Top Brand
• Origin：Jiangsu, China
• HS Code：8429521200

Basic Info.

Model NO. Qy30K5 Shaft Number 3 Crane Jib Five-Arm Transport Package Nude Trademark Top Brand Origin Jiangsu, China HS Code 8429521200

Product Description

Various brands and prices available, just send me inquiry, product list will be offered!!!

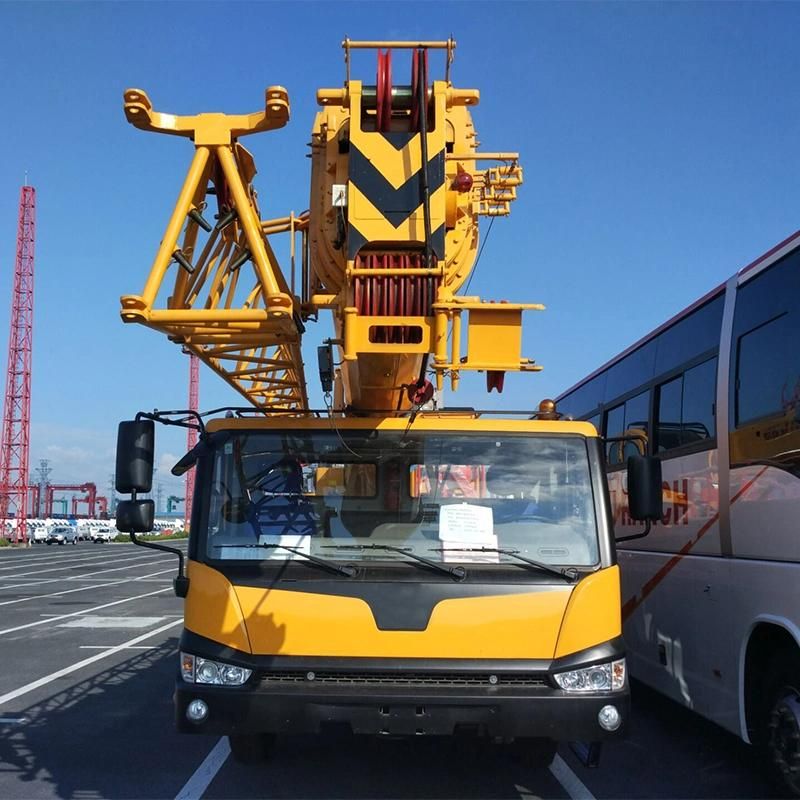

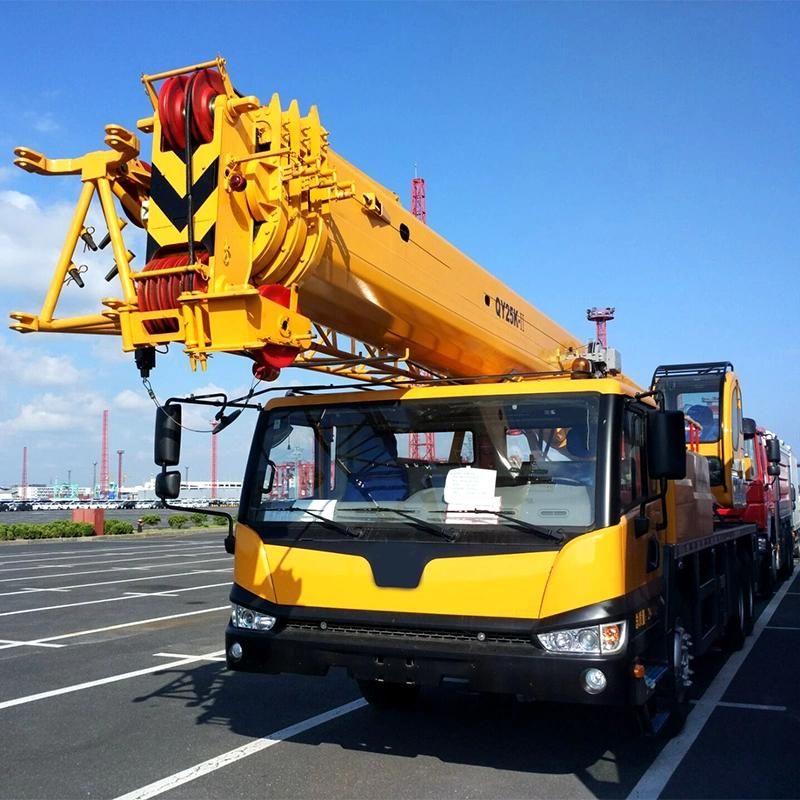

New 30T Construction Truck Crane  Qy30K5         Description

Dimension	Unit	QY30K5
Overall length	mm	12070
Overall width	mm	2500
Overall height	mm	3390
Weight
Total weight in travel	kg	32400
Front axle load	kg	7000
Rear axle load	kg	25400
Power
Engine model		WD615.329 / SC8DK280Q3 (domestic III)
Engine rated power	kW/(r/min)	206/2200  213/2200
Engine rated torque	N.m/(r/min)	1160/1400  1112/1400
Travel
Max. travel speed	km/h	75
Min. turning diameter	m	22
Min. ground clearance	mm	291
Approach angle	°	19
Departure angle	°	13
Max. grade ability	%	30
Fuel consumption for 100km	L	40
Main performance
Max. rated total lifting capacity	t	30
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.065
Max. lifting torque	kN.m	1025
Base boom	m	10.1
Fully extended boom	m	38.5
Fully extended boom+ jib	m	46.8
Longitudinal outrigger span	m	5.85
Lateral outrigger span	m	6
Working speed
Boom luffing time	s	68
Boom full extension time	s	150 / 140
Max. swing speed	r/min	≥2.5
Max. speed of main winch (single rope)	m/min	≥ 120
Max. speed of aux. winch (single rope)	m/min	≥ 120
