Wa7015-10e Zoomlion Construction Machinery 10t Flat-Top/Top-Less Tower Crane

Zoomlion Heavy Industry Science & Technology Co., Ltd.
  • Certification:ISO9001
  • Condition:New
  • Maximum Lifting Height:>250m
  • Maximum Lifting Weight:10t
  • Installation:Assembled
  • Moving Type:Fixed

Base Info

  • Model NO.:WA7015-10E
  • Type:Top-Slewing Crane
  • Trademark:Zoomlion
  • Origin:China
  • HS Code:84262000
  • Production Capacity:1000

Description

Basic Info.

Model NO. WA7015-10E Type Top-Slewing Crane Trademark Zoomlion Origin China HS Code 84262000 Production Capacity 1000

Product Description

Feature


Superior Performance


1.  The arm length has obvious advantages. The tip load is 1.5t, and the adaptability of various construction conditions is strong.

2.  The maximum lifting weight is 10t and the maximum lifting speed is 95m/min

3.  Abundant arm length combination. The arm can reach 70m with 2.5m variable arm length, Minimum 30m, 17 kinds of arm length
    combination.

4.  The tower body configuration is flexible, 2m bolt standard section and 2m fishplate standard section are optional.



Safe and Reliable

1.  Triple lifting weight protection, torque double protection, strictly prevent overload

2.  Lifting mechanism is equipped with three protection devices to anti collision. Arm mechanism is equipped with two protection debices to
     anti collision.


3.   Intelligent electronic control system anti-slip hook.

4.  With jacking control and jacking motor control, jacking operation accident is prevented.

5.  Masts are equipped with inclined ladders and large platform, preventing from fall down.



Good handling

1. Brand-new frequency conversion slewing system, instant response to start and stop, no jitter in the whole
field, no swing back when stopping
2. The millimeter-level ant speed is in place, the minimum is 5mm/s, and the jog responds instantly.



Excellent humanity

1.  Integrated assembly in the factory, professional loading plan, effectively reducing packaging units and
transportation vehicles.

2.  Fast assembly technology, the main structure is only 4 cranes, the fastest 4 hours from unloading to
installation and commissioning.

3.  Identify and add multiple core fault diagnosis, increase the text description of fault alarms, and improve
maintenance efficiency.

4.  The electronic lifting weight limiter assists pre-calibration before leaving the factory to improve
construction efficiency.

5.  Flexible wall attached to a wide range of use, strong applicability and convenient installation.



Parameters

ModelWA7015-10E
Lifting Capacity (t)10
Capacity lifting moment (t.m)125
Max working range (m)70
Hoisting capacity at jib tip (t)1.5
Free-standing height (m)60
Max lifting speed (m/min)95
Slewing speed (r/min)0~0.8
Trolleying speed (r/min)0~100

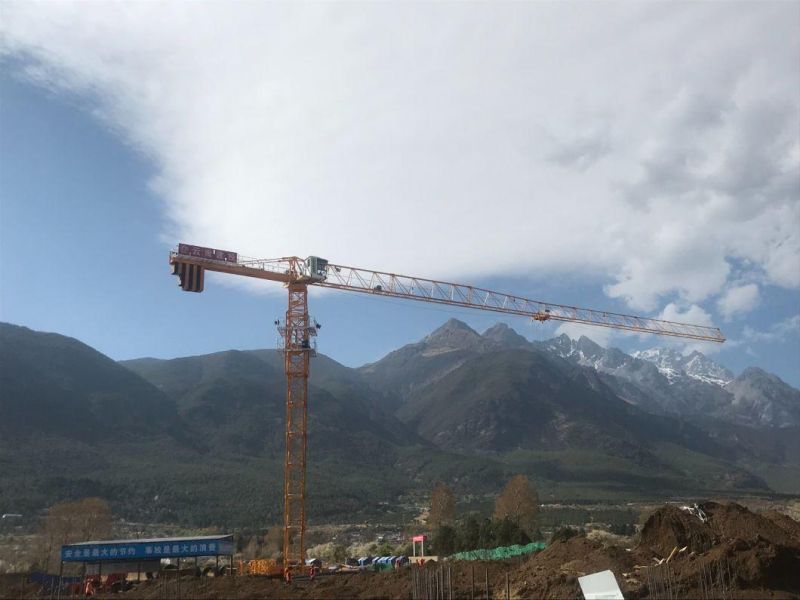

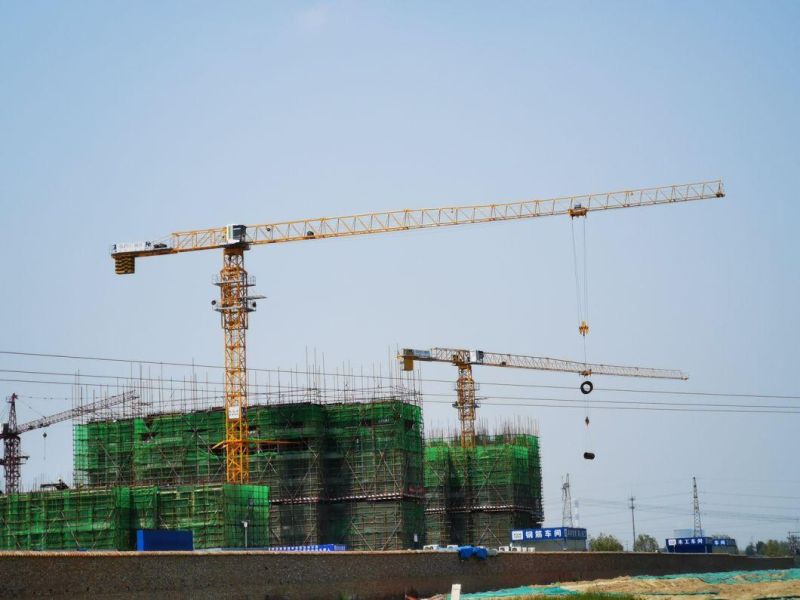

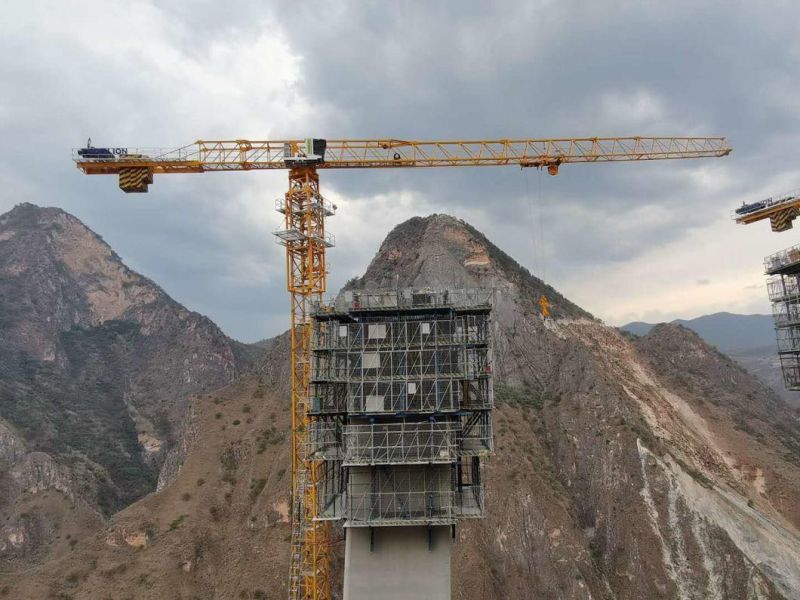

Product Show

Wa7015-10e Zoomlion Construction Machinery 10t Flat-Top/Top-Less Tower CraneWa7015-10e Zoomlion Construction Machinery 10t Flat-Top/Top-Less Tower CraneWa7015-10e Zoomlion Construction Machinery 10t Flat-Top/Top-Less Tower Crane

Our Company

Wa7015-10e Zoomlion Construction Machinery 10t Flat-Top/Top-Less Tower Crane


      Founded in 1992, Zoomlion Heavy Industry Science & Technology Co., Ltd. is mainly engaged in
      developing and anufacturing major high-tech equipment in the areas of engineering industry and
      agricultural industry.

      With more than 20 years of innovation and development, the company is now a global enterprise
      possessing 10 major categories and 55 product lines, as well as nearly 460 leading products. Zoomlion is
      China's first construction machinery company to be listed on both Shenzhen and Hong Kong stock
      exchanges, with registered  capital amounting to RMB 7.664 billion. At present, the company is actively
      promoting strategic transformaion, aiming to build a high-end equipment.


Wa7015-10e Zoomlion Construction Machinery 10t Flat-Top/Top-Less Tower Crane

     In 1956, the predecessor of Zoomlion, Changsha Construction Machinery Research Institute, developed
     the first tower crane in China with independent intellectual property rights-QTZ160. With more than 60
     years of  technology inheritance and innovation, Zoomlion has now developed into a world-leading tower
     crane manufacturer and also the secretariat unit of the International Organization for
     Standardization/Crane Technical  Committee (ISO/TC96).

     The products of Zoomlion Construction Hoisting Machinery Company cover four series: hammer-head
     tower cranes, flat-top tower cranes, luffing tower cranes and construction hoists. Many star products have
     been born as well, such as the world's largest tonnage top-slewing jack-up Tower crane D5200, the world's
     longest-boom  tower crane D1250, which set a world record for Guinness, the world's largest tonnage flat-
     top tower crane T2850, and the world's largest tonnage internal climbing boom tower crane LH3350,
     which rolled off the assembly line in 2019.
