Ld Single Girder Overhead/Bridge Crane with Ce (0.5t, 1t, 2t, 3t, 5t, 10t, 16t, 20 ton)

Lyfoo Industry Co., Ltd.
  • Certification：CE, ISO9001: 2000
  • Condition：New
  • Operation Form：Crane Console
  • Maximum Lifting Height：25-30m
  • Maximum Lifting Weight：20t
  • Main Girder Form：Single Girder

Base Info

  • Model NO.：LD
  • Type：Single Girder Crane
  • Power Supply：380V,50Hz,3, Can Be Customized
  • Span：7.5-22.5m
  • Lift Speed：8,0.8 M,Min
  • Travel Speed：20 M,Min
  • Work Duty：A3-A5
  • Lift Height：6-30m
  • Rail：24kg,M
  • Hosit：CD, Wire Rope Hois
  • Application：Construction Usage, Workshop Usage
  • Installation：Overall Rapid Disassembly
  • Transport Package：Packed by Plywood Crate and Plastic Woven Cloth
  • Specification：CE, ISO
  • Trademark：LYFOOCRANE
  • Origin：China Henan
  • HS Code：84261120
  • Production Capacity：50, 000,Year

Description

Basic Info.

Model NO. LD Type Single Girder Crane Power Supply 380V/50Hz/3, Can Be Customized Span 7.5-22.5m Lift Speed 8/0.8 M/Min Travel Speed 20 M/Min Work Duty A3-A5 Lift Height 6-30m Rail 24kg/M Hosit CD/ Wire Rope Hois Application Construction Usage, Workshop Usage Installation Overall Rapid Disassembly Transport Package Packed by Plywood Crate and Plastic Woven Cloth Specification CE, ISO Trademark LYFOOCRANE Origin China Henan HS Code 84261120 Production Capacity 50, 000/Year

Product Description

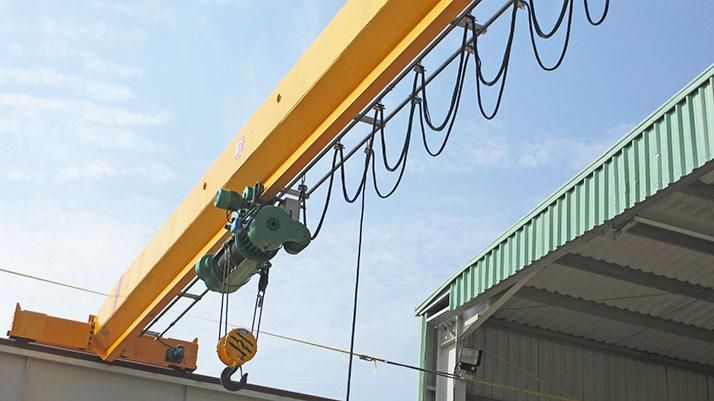

LD-Single Girder Overhead Crane

Under Running Crane (LD)

The LD type of under running overhead crane (also called bridge crane )is the most popular designing since the very beginning.  Our annual turnout is 20,000 units for the whole market. The main girder adopts 6mm and 8mm thickness steel plate. Chinese workshop has a 1700mm clearrance above the rail, which is excellenct for the maintenance of the crane.  In some Middle East countries, the clearance is  less than this, and please indicate this data when you placing the order.
Ld Single Girder Overhead/Bridge Crane with Ce (0.5t, 1t, 2t, 3t, 5t, 10t, 16t, 20 ton)

Steel Plate Cutting and Treatment

The board was cut by auto-cutting machine.



Main Beam

We reserve the concept of "safety factor", and remain the traditional main beam fabrication methord. Each of the beam is made by 6mm thickness of side board, and 8mm top and bellow board.



Bearing System

The  reducer is hardtooth designing. Bearing is HA/WA/LUO 3 brands. Casting box type. The gear box is made by our factory in order to give a reliable quality. The market has many suppliers, and some of them can get 50% price than ours.  However, we do not reduce the quality in order to reduce the cost.


Ld Single Girder Overhead/Bridge Crane with Ce (0.5t, 1t, 2t, 3t, 5t, 10t, 16t, 20 ton)


Safety Device

  Long travel limit switch

  Cross travel limit switch

 Counter-weight and pedal limit switch for hoisting

   Pedal limit switch for lowing

   Overload limit switch



End Trucks (Carriage)


Soft start driving system(380v only) makes the long travel smoothly, reduces noise.  Modular system designing gives the crane more free working space. Unique conbinations with steel profiles sections for maximum distance between suspensions.


Ld Single Girder Overhead/Bridge Crane with Ce (0.5t, 1t, 2t, 3t, 5t, 10t, 16t, 20 ton)


Double C-track Festoon System



 4mm thickness national standard trackpull  and push wheel with sealed bearing

 Flat cable for strong life.

 Electrical box has indication of working.

 This double C-track festoon system makes the driver can be seperate from the hoist , so that give a maximum safety protection.
