• Model NO.：SWTC80W
• Type：Straight Arm
• Drive Model：8X4
• Max. Travel Speed：80km,H
• Operating Weight：50 Ton
• Base Boom Length：12.4 M
• Transport Package：Nude
• Specification：80 ton lifting capacity
• Trademark：SINOWAY
• Origin：China
• HS Code：8430412900
• Production Capacity：200 Unit Per Year

Basic Info.

Model NO. SWTC80W Type Straight Arm Drive Model 8X4 Max. Travel Speed 80km/H Operating Weight 50 Ton Base Boom Length 12.4 M Transport Package Nude Specification 80 ton lifting capacity Trademark SINOWAY Origin China HS Code 8430412900 Production Capacity 200 Unit Per Year

Product Description

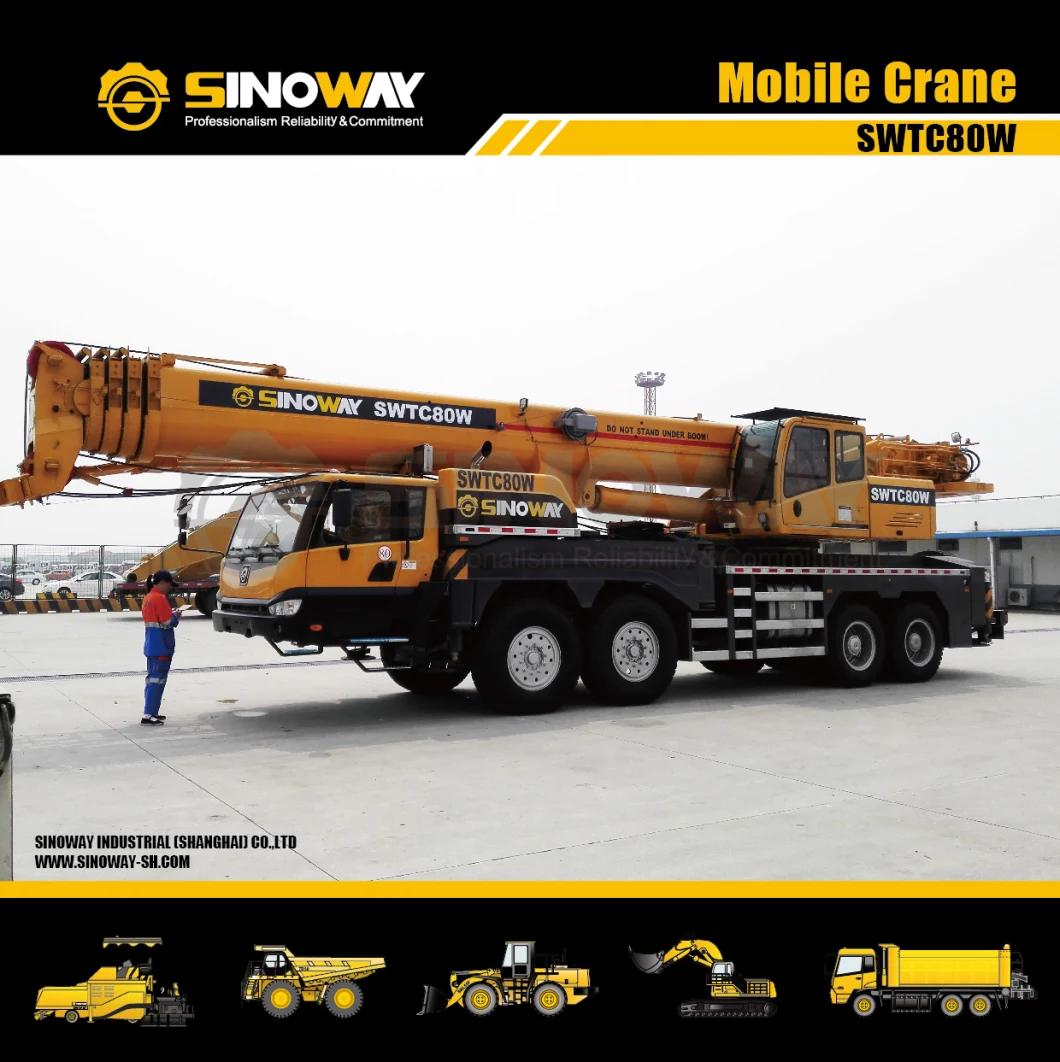

SINOWAY MOBILE CRANE SWTC80W HIGHLIGHT

Highlights 1: Deep optimization of structural design, lifting capacity is the strongest in the industry.
1). Five-section U-shaped main arms, insert type arm head, lifting height and scope of operation are ahead of competitors, lifting performance is the highest in the industry, 3% - 15% ahead of the same tonnage products of the competitor;
2). Scope of work: The main boom is 47m long, the jib is 17.5m in length, the scope of work covers all competitors in an all-round way.
3). Mature combined balance-weight technology: Through multiple combination modes of the combined balance weight, it can provide users with more abundant combination of working conditions.
4). New type of mechanical fixing device for the balance weight: When driving, the balance weight can be fixed at multiple points on the same carriage. It is more convenient and fast to place the balance weight. It ensures that the balance weight will not vibrate and turn over, and is more efficient, stable and reliable.

Highlights 2: Hydraulic control & pilot control technology + variable load sensitive control technology, high working efficiency, stable and reliable.
1). The main lifting speed is increased to 140 m/min, and the operation efficiency is higher;
2). New hydraulic-controlled pilot valve, has zero overflow loss, high operation efficiency, low heating of the system, energy saving and environmental protection.
3). Increase compound action function of the main & auxiliary coils, provide more abundant working conditions for users, and greatly improve working efficiency;

Dimensions
Overall length	14770mm
Overall width	2800mm
Overall height	3890mm
Weight
Dead weight in travel state	49870kg
Front axle load	24000kg
Rear axle load	26000kg
Power
Engine model	WP12.375N MC11.39-30
Engine rated output	276kw/1900rpm/290kw/1900rpm
Engine rated torque	1800N.m/(1000~1400)rpm/1900N.m/(1000~1400)rpm
Travel
Max. travel speed	80km/h
Min. turning diameter	24m
Min. ground clearance	371mm
Approach angle	17°
Departure angle	15.5°
Max. grade ability	40%
Fuel consumption of per 100km	≤45L
Lifting performance
Max. total rated lifting load	80t
Min. rated working radius	3m
Turning radius at swing table tail	4670mm
Base boom max. load moment	3000kN.m
Base boom	12.4m
Full-extend boom	47.5m
Full-extend boom+Jib	65mm
Outrigger longitudinal distance span	8.075
Outrigger lateral distance span	7.9m
Working speed
Boom elevating Time	70s
Boom telescoping Time	150s
Max. slewing speed	≤1.9r/min
Main winch max. speed(no load)	130m/min
Auxiliary winch max. speed(no load)	110m/min

Sinoway treat Service as a significant segment in our value chain. All of our service-related businesses-aftermarket parts, technical support, training, OEM Solutions are based on offering more professional service, extending the life of each machine we delivered.

For special key projects and VIP customers, Sinoway offer on-site field service for a certain period, to allow the team of our users with a better understanding on the operating and maintenance, to help training the service team of their own, or give a proposal on the maintenance solutions according to the special operating environment. With the field service, we are confident to enable our machinery reduce the downtime at maximum and help our clients fulfill the project smoothly and on time.

Condition	Brand New
Warranty	One year or 2000 working hours, whichever comes earlier.
Shipment Terms	FOB, CFR, CIF, CIP DAF
