• Model NO.：ZTC550V532
• Type：Straight Arm
• Max.Travel Speed：74km,H
• Max.Gradeability：42%
• Slewing Speed：0-2.2r,Min
• Transport Package：Roro
• Specification：13530*2600*3700
• Trademark：TOP BRAND
• Origin：China
• HS Code：8705109100
• Production Capacity：100units,Month

Overview Product Description

Product Parameters

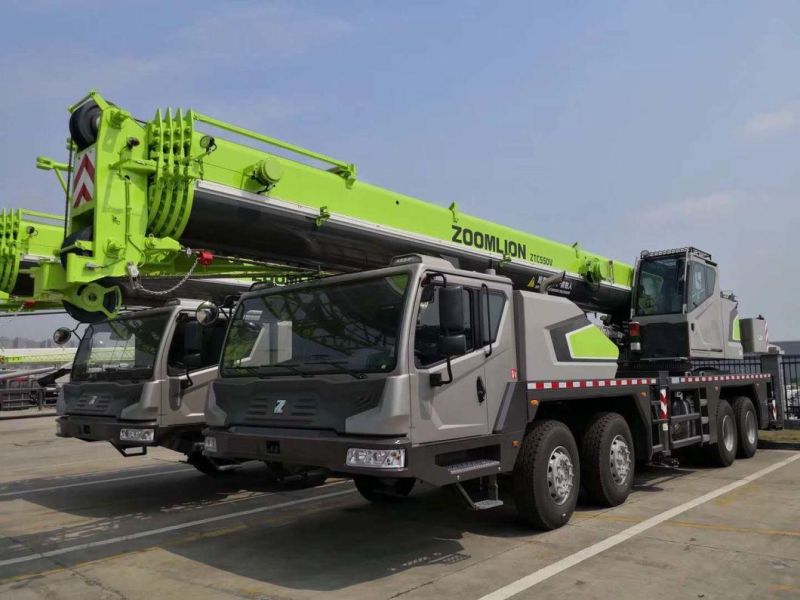

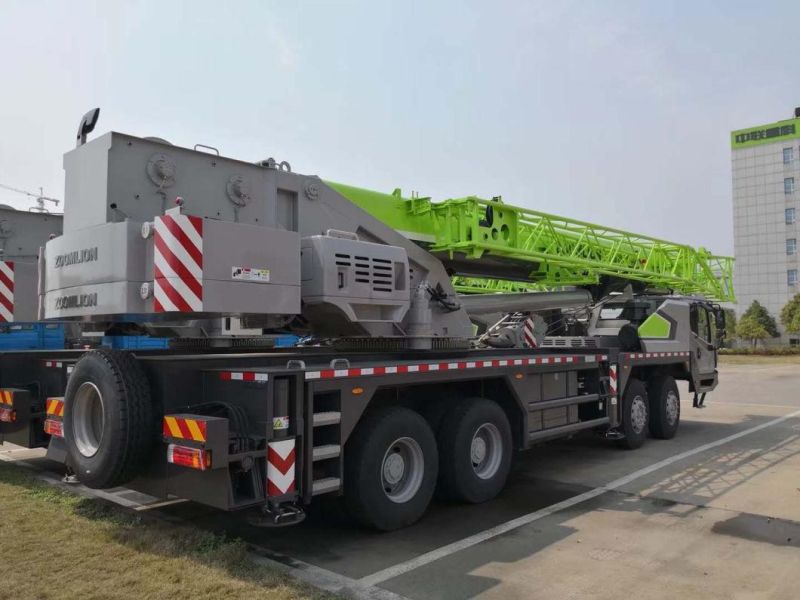

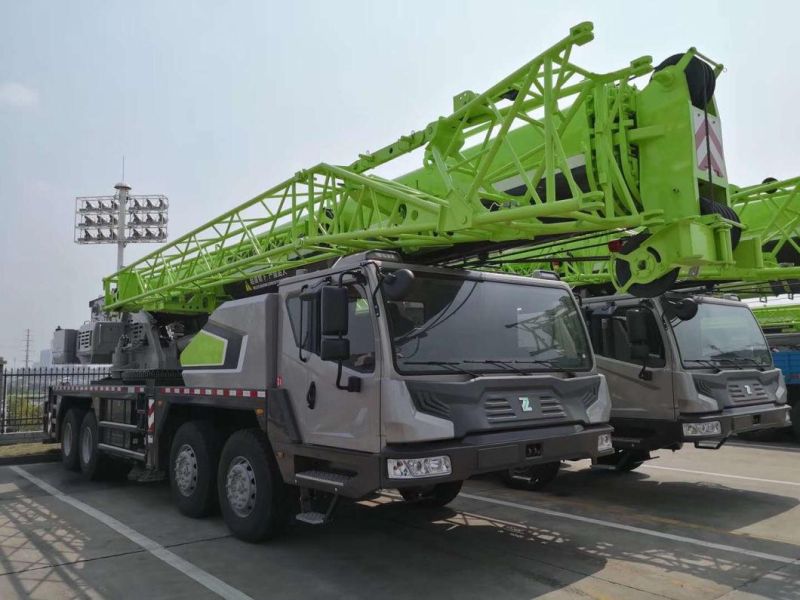

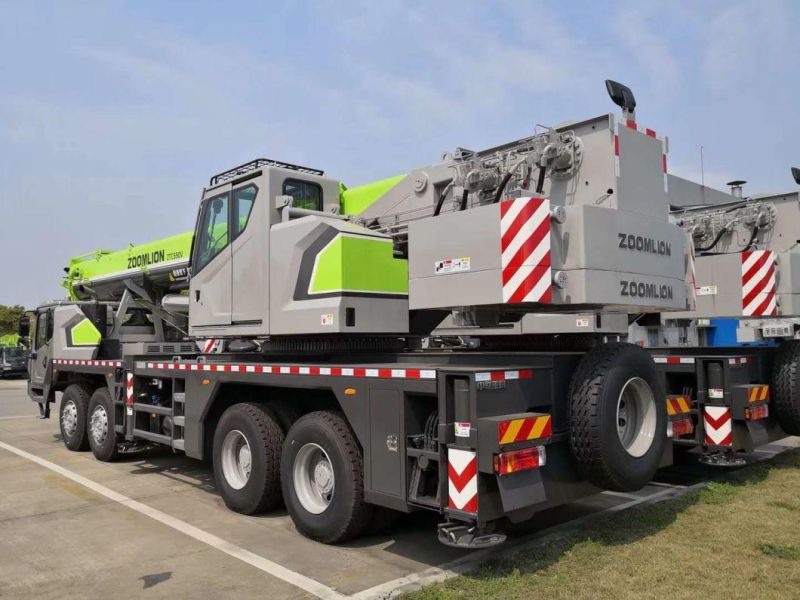

ItemUnitValueRemarksWorking performanceMax. rated lifting capacitykg55000 Max. load moment of basic boomkN.m1568 Max. load moment of main boom(fully extended)kN.m940.8 Max. lifting height of main boomm44These  parameters do not include deflection of main boom and jibMax. lifting height of jibm60Working speedsMax. hoist rope speed(Main winch)m/min135At 4th layerMax. hoist rope speed(Auxiliary winch)m/min120At 2nd layerBoom demrricking up times45 Boom telescoping out times95 Slewing speedr/min0-2.2 Driving parametersMax. height above sea levelm2000 Max. driving speedkm/h74 Max. gradeability%40 Min. turning diameterm≤24 Min. ground clearancemm260 Oil consumption per hundred kilometersL40 MassDeadweight in driving conditionkg39000 Complete vehicle kerb masskg38805 Front axle loadkg13000 Rear axle loadkg26000 DimensionsOverall dimensions(L×W×H)mm13530×2600×3700 Outrigger spread(L)m7.3 Outrigger spread(W)mFully extended: 5.95, intermediately extended: 4.8 Tail slewing radiusmm3690 Main boom lengthm11.2 - 44.0 Boom angle°-2 - 80 jib lengthm9.5, 16 Offset°0/15/30  Detailed Photos
