• Model NO.：SC200,200BG
• Frequency Converter Power：2 X 3 X 37kw
• Rated Current：2 X 3 X 34.5A
• Safety Device Type：Saj50-2.0A
• Cage Size：3.2m X 1.5m X 2.5m
• Size of Mast Section：650mm X 650mm X 1508mm
• Trademark：Zoomlion
• Origin：China
• HS Code：84281090
• Production Capacity：1000

Basic Info.

Model NO. SC200/200BG Frequency Converter Power 2 X 3 X 37kw Rated Current 2 X 3 X 34.5A Safety Device Type Saj50-2.0A Cage Size 3.2m X 1.5m X 2.5m Size of Mast Section 650mm X 650mm X 1508mm Trademark Zoomlion Origin China HS Code 84281090 Production Capacity 1000

Product Description

Feature

Energy efficient

1. Using imported NORD (Germany) reducer motor, the efficiency of the drive unit is increased by 26%, and
    the operation is stable and reliable.

Intelligent

1. Equipped with an intelligent control system, functions such as booting with one card, identity
    authentication, status display, and fault self-diagnosis can be realized.

2. Equipped with a manual and automatic integrated operating system, labor intensity and the damage to the
    shock electrical components can be reduced.

3. Equipped with the secretary smart application, remote management, fault diagnosis, maintenance reminder,
    and personnel management of the construction elevator can be realized.

Low operating cost

1. Easy to install and dismantle: quick-install structure design such as underframe guardrail, attached wall
    frame, etc., can save time and effort for installation and disassembly.

2. Easy maintenance: Easy-caring design, such as lubrication-free rollers, anti-loosing back wheels, anti-
     loosing double rollers, hot-dip galvanized underframe guardrails, hot-dip galvanized doors, etc. can favor to
     the customers without maintenance costs or low maintenance costs.

Parameters

Model	SC200/200 EB	SC200/200 BZ	SC200/200 BG
Capacity(kg)	2*2000	2*2000	2*2000
Lifting Speed(m/min)	0~40	0~63	0~90
Motor Power(kw)	2*2*13	2*3*9.2(NORD)	2*3*18.5(NORD)
Speed Ratio of Reducer	1:16	1:13.69	1:11.4
Inverter Power(kw)	2*30	2*75	2*110
Max Lifting Height(m)	500	500	500
Working Current	2*2*27	2*3*32.6	2*3*59.9

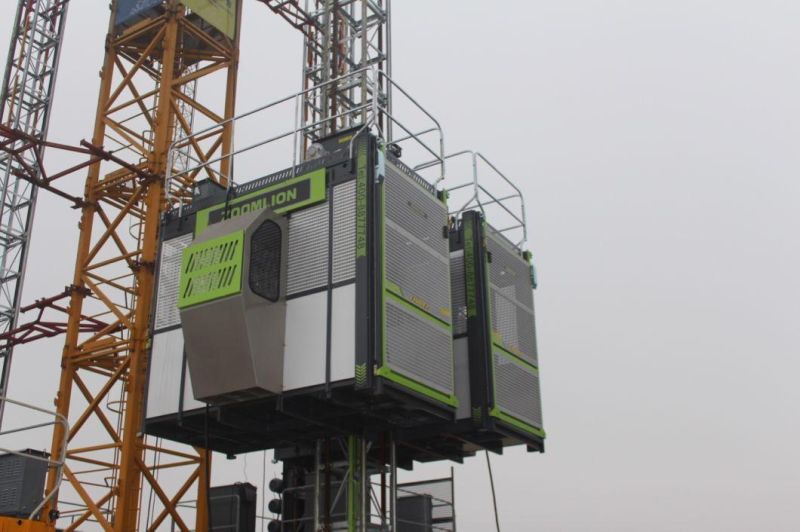

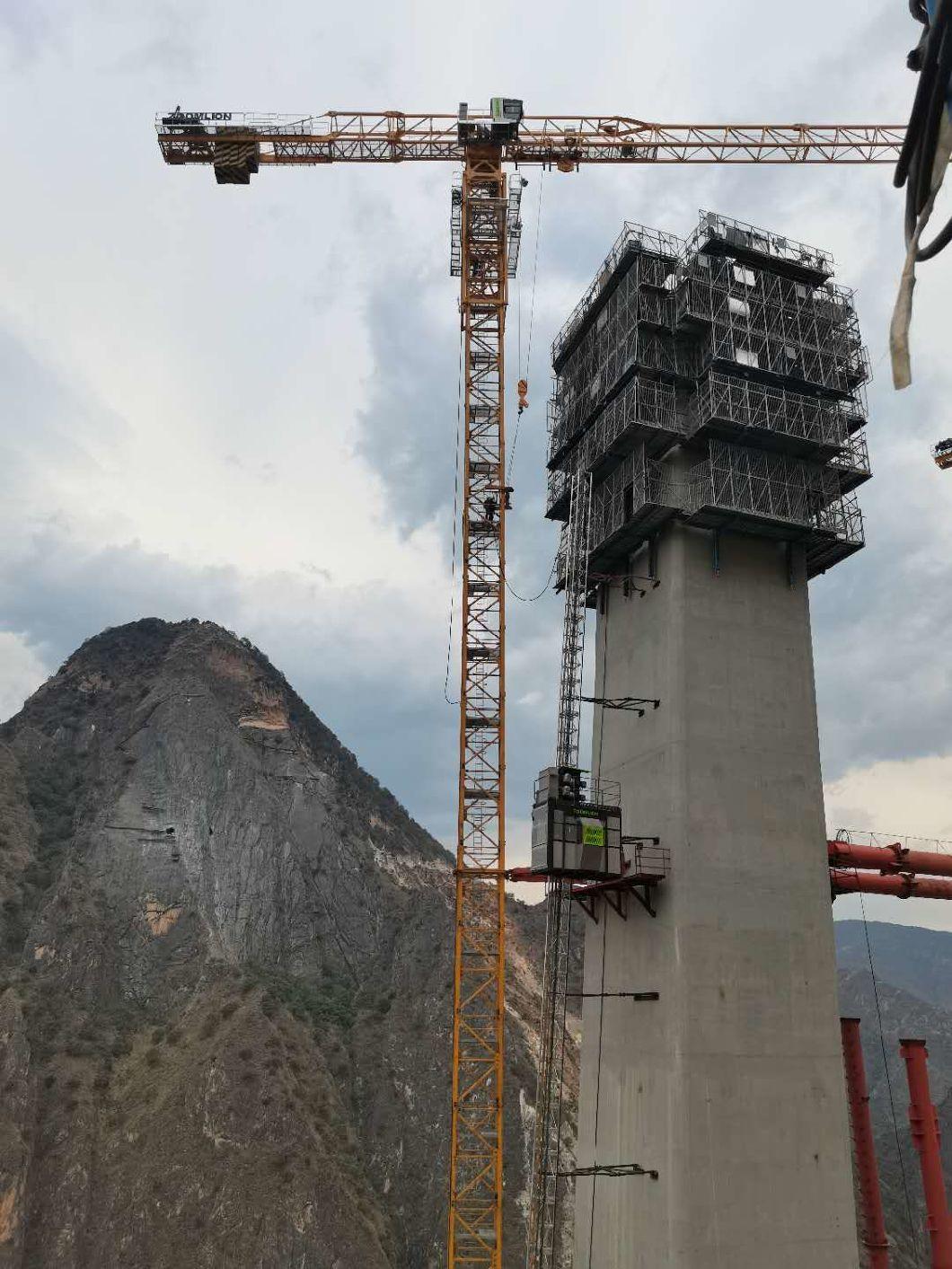

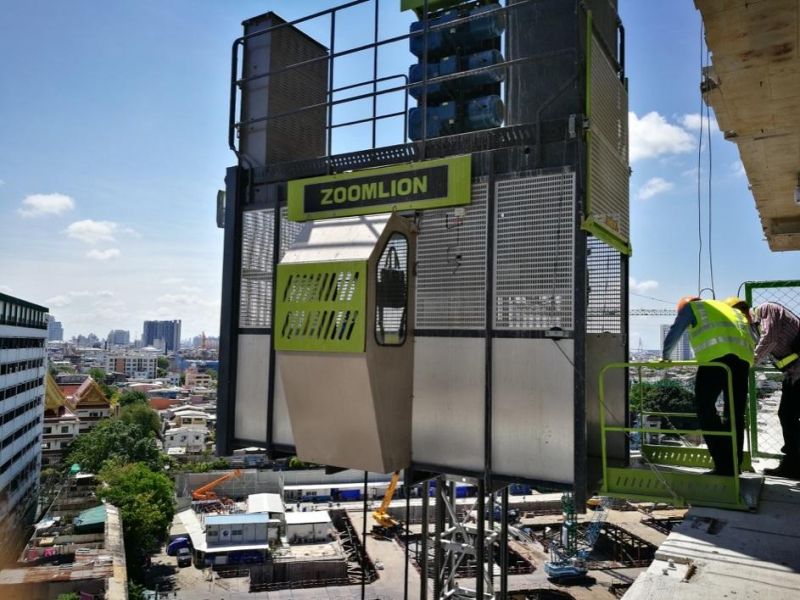

Product Show







Our Company



  Founded in 1992, Zoomlion Heavy Industry Science & Technology Co., Ltd. is mainly engaged in develop-
  ing and anufacturing major high-tech equipment in the areas of engineering industry and agricultural industry.

  With more than 20 years of innovation and development, the company is now a global enterprise possessing
  10 major categories and 55 product lines, as well as nearly 460 leading products. Zoomlion is China's first con-
  struction machinery company to be listed on both Shenzhen and Hong Kong stock exchanges, with registered
  capital amounting to RMB 7.664 billion. At present,   the company is actively promoting strategic transforma-
  tion, aiming to build a high-end equipment.



     Founded in 1992, Zoomlion Heavy Industry Science & Technology Co., Ltd. is mainly engaged in
     develop-ing   and anufacturing major high-tech equipment in the areas of engineering industry and
     agricultural industry.

     With more than 20 years of innovation and development, the company is now a global enterprise
     possessing 10   major categories and 55 product lines, as well as nearly 460 leading products. Zoomlion is
     China's first con-struction machinery company to be listed on both Shenzhen and Hong Kong stock
     exchanges, with registered   capital amounting to RMB 7.664 billion. At present, the company is actively
     promoting strategic transformation, aiming to build a high-end equipment.
