• Model NO.：TRUST
• Type：Common Gantry Crane
• Main Girder Form：Double Girder
• Product Name：Marine Hatch Cover Gantry Crane
• Usage：Marine Hatch Cover
• Crane Painting Color：Customized
• Transport Package：Standard Package
• Origin：China
• Production Capacity：300 Pieces,Year

Basic Info.

Model NO. TRUST Type Common Gantry Crane Main Girder Form Double Girder Product Name Marine Hatch Cover Gantry Crane Usage Marine Hatch Cover Crane Painting Color Customized Transport Package Standard Package Origin China Production Capacity 300 Pieces/Year

Product Description

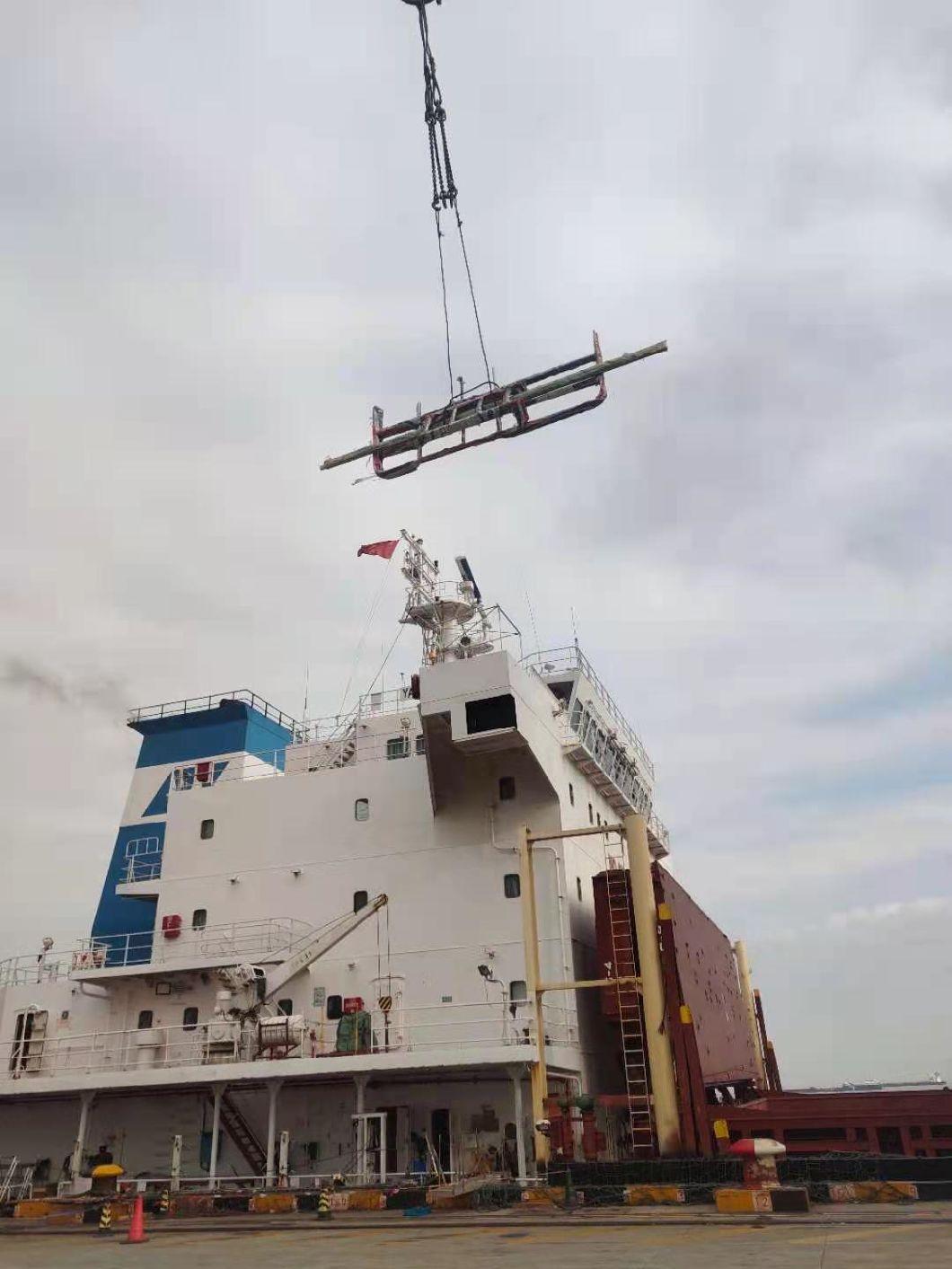

Marine Hatch Cover Gantry Crane
Designed to Remove and Replace Heavy Hatch Covers! Built to individual requirements MAIN BOX GIRDER: Supported at the ends by flanged wheel dollies, traveling on permanently mounted fixed rails on the boat deck. "DEAD MAN" TYPE CONTROLS: Return to neutral for safety purposes. Cover hooks are self engaging into cover attaching eyes. DIESEL OR ELECTRIC DRIVEN HYDRAULIC SYSTEMS:
Utilized for hoisting, traveling and braking. Hoist cylinder has hydraulic counter balance valve to require "power down".
MECHANICALLY BALANCED DRIVE: Drives on all four wheels to prevent yaw and assure traction. Hydraulic motor for drive system has planetary gear reducer with final chain drive to all four wheels. Hydraulic motion control valves prevent overspeeding and provide smooth deceleration. LOW HEIGHT: Permits handling hatch covers without having to swing self-unloader boom to the side of the ship.

Features
TYPICAL SPECIFICATIONS
HTC300 HTC600
Rated lifting capacity*: 15,000 lbs 60,000 lbs
Unit weight (approx.): 15,000 lbs 42,000 lbs
Standard power unit**: JD4239T liquid cooled 100 HP @ 2100rpm Travel speed 150 fpm 100 fpm
Hoist speed 25 fpm 20 fpm
Electrical system 12 volt DC 40 AMP alternator
Lights Six 12 volt 60 watt DC flood lights
* = Larger sizes available upon request
** = Optional 460 volt electric motor drive with spring motor, electric cord rewind
DIMENSIONS ADAPTABLE TO INDIVIDUAL REQUIREMENTS
(a) Wheel span (rail centers): 36 to 70 ft.
(b) Hook spread, ctr. to cir.: 25 to 30 ft.
(c) Center of crane to hook: 1/2 of Dim. B
(d) Overall length: 11'1"
(e) Wheel base: 8'0"
(f) Wheel to center of unit: 1/2 of Dim. E
(g) W. of wide frame & power unit (1/2): 15"
(h) Overall height of unit (approx.): 7 to 22 ft.
(i) Top beam height: 30"
(j) Hook travel height: 4 to 16 ft.
(k) Cover lifting height: As required
