China Mobile Grabbing Crane with Lattice Boom Harbor Material Handlers

Sinoway Industrial (Shanghai) Co., Ltd.
  • Certification:ISO9001, ISO14001
  • Condition:New
  • Operation Form:Cabin
  • Maximum Lifting Height:10-15m
  • Maximum Lifting Weight:<20t
  • Max. Trave Speed:15km,H

Base Info

  • Model NO.:swmh120l
  • Max.Tranction Force:44kn
  • Max.Lifting Moment:41 T.M
  • Engine Power:125HP
  • Warranty:1 Year
  • Transport Package:Nude
  • Specification:ISO
  • Trademark:Sinoway
  • Origin:China
  • HS Code:84314990
  • Production Capacity:100 PCS , Year

Description

Basic Info.

Model NO. swmh120l Max.Tranction Force 44kn Max.Lifting Moment 41 T.M Engine Power 125HP Warranty 1 Year Transport Package Nude Specification ISO Trademark Sinoway Origin China HS Code 84314990 Production Capacity 100 PCS / Year

Product Description

Product Features

Dual power 380V electric driven operation with a cost of 30% fuel consumption of internal combustion engine, and no waste discharge or pollution;
Capable of respective operations of loading and unloading, stacking and unstacking various spongy, loose, disperse and soft goods such as grass, reed, cotton, linen, bamboo, wood, waste paper and finished paper as well as sand, stone, coal, etc. With different hydraulic grabs, which realizes multiple functions of the same machine;
Full hydraulic drive realizes infinitely variable speed transmission and overcomes switching impulse, which increases the stability, safety, convenience and reliability of the operation process;
Double pump split-flow and interflow design is adopted to realize the high and low double-speed function, which tremendously increase the working effeciency;
Designed with a slide-type hydraulic automatic reel pipe apparatus that solves the problem of automatic deploying and retracting of power output hoses along with the grab bucket in lifting operation;
Anti-explosion motor and fully-sealed electrical equipment and circuit are optional for safe fire protection in operation, which meets various anti-fire and anti-explosion requirements in key fire safety areas; All the control part of the electrical system adopts 24V low-voltage operation, designed and installed with protective functions such as overflowing, overloaded, over-heating and electric leakage, etc., and equipped with identification function of phase sequence and "Y" - "△" depressurization starter which ensures the safety and reliability of the operation of the electrical system;
Environmental protection. Electric motor operation is adopted to reduce the environmental pollution caused by waste discharge due to internal combustion engine operation and operating noise;

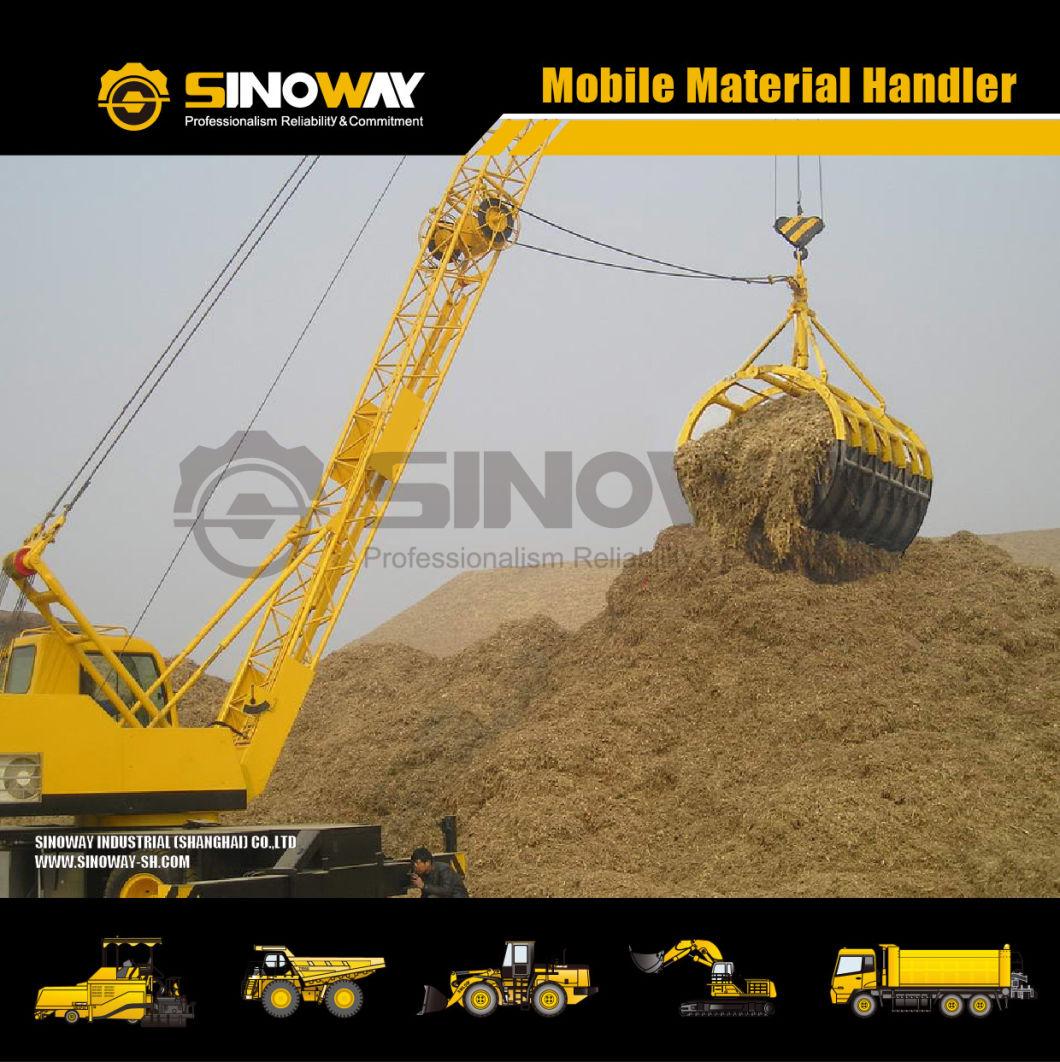

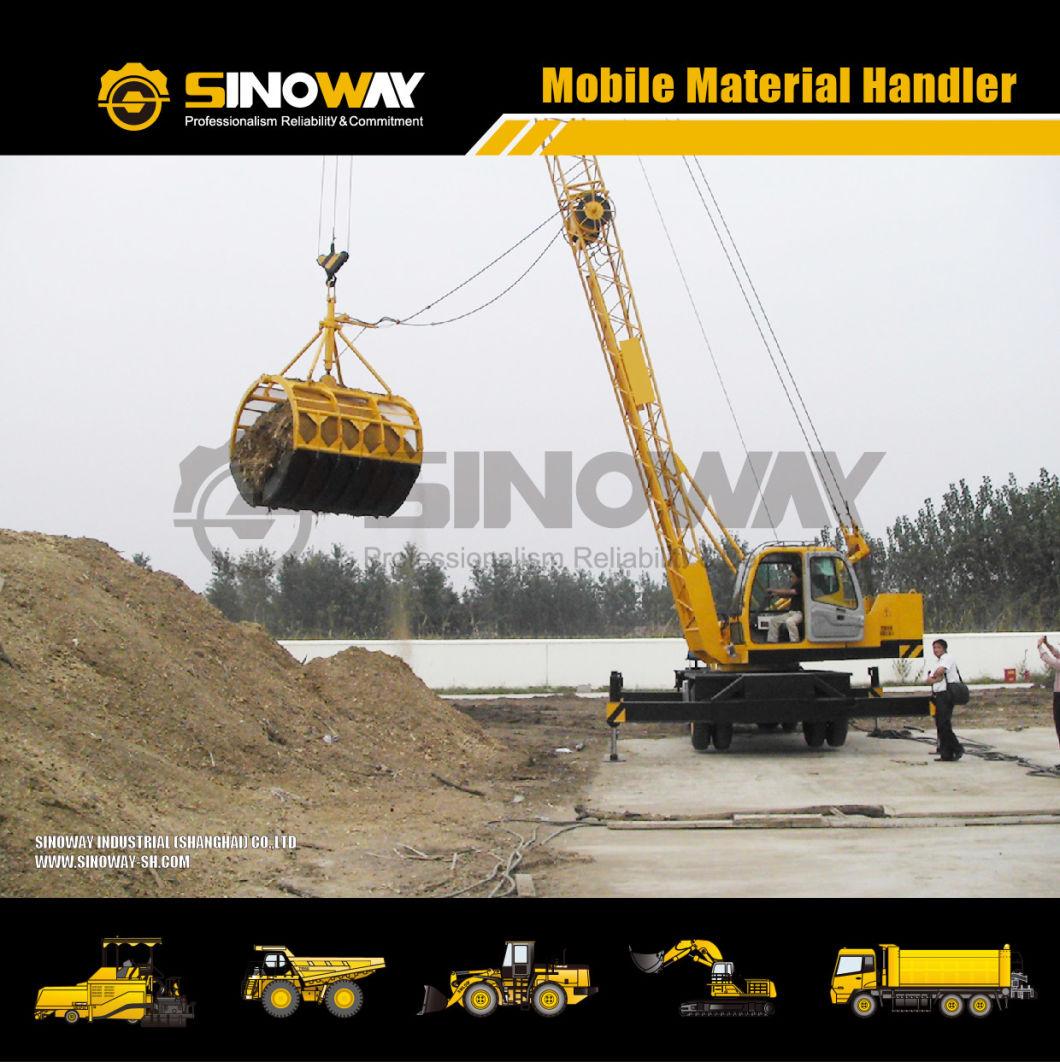

Product Show

China Mobile Grabbing Crane with Lattice Boom Harbor Material Handlers

China Mobile Grabbing Crane with Lattice Boom Harbor Material Handlers

Specifications

Dimensions
Overall length7150mm
Overall height3620mm
Overall width3260mm
Wheelbase3200mm
Tail slewing radius4122mm
Power
Engine55kw
Electric Motor37kw
Fuel tank200L
Walking System
Walking speed15km/h
Max.tranction force44KN
Gradeability10%
Hydraulic System
Max.flow2*65L/min
Max.working pressure20Mpa
Hydraulic oil tank245L
Main Performance Parameters
Total weight15.1t
Max.Lifting moment41.2t.m
Max.swing speed3.6r/min
Max.swing torque30KN.m
